GF27.19-P-5109-03G Shift Pressure Regulating Solenoid Valve, Design

GF27.19-P-5109-03G Shift pressure regulating solenoid valve, design
- TRANSMISSION 722.6

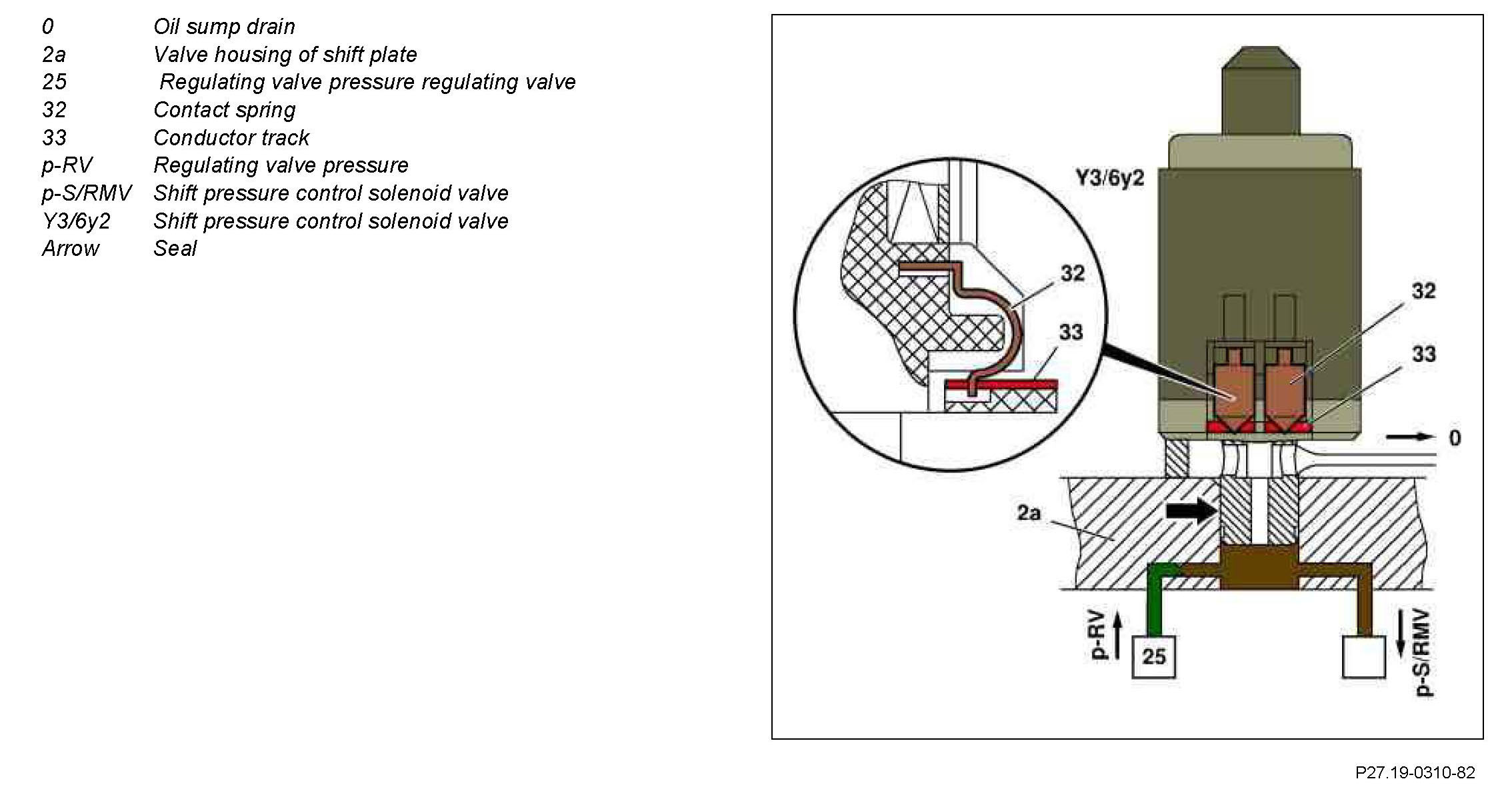

Component Identification:

Structure
The shift pressure regulating solenoid valve (Y3/6y2) has an interference fit and is sealed off to the valve body of the shift plate (2a) by a seal (arrow).

The contact springs (32) on the shift pressure solenoid valve (Y3/6y2) engage in a slot in the conductor tracks (33). The force of the contact spring (32) ensures safe contacts.
