GF27.19-P-5110-03G Modulating Pressure Regulating Solenoid Valve, Design

GF27.19-P-5110-03G Modulating pressure regulating solenoid valve, design
- TRANSMISSION 722.6

Component Identification:

Structure

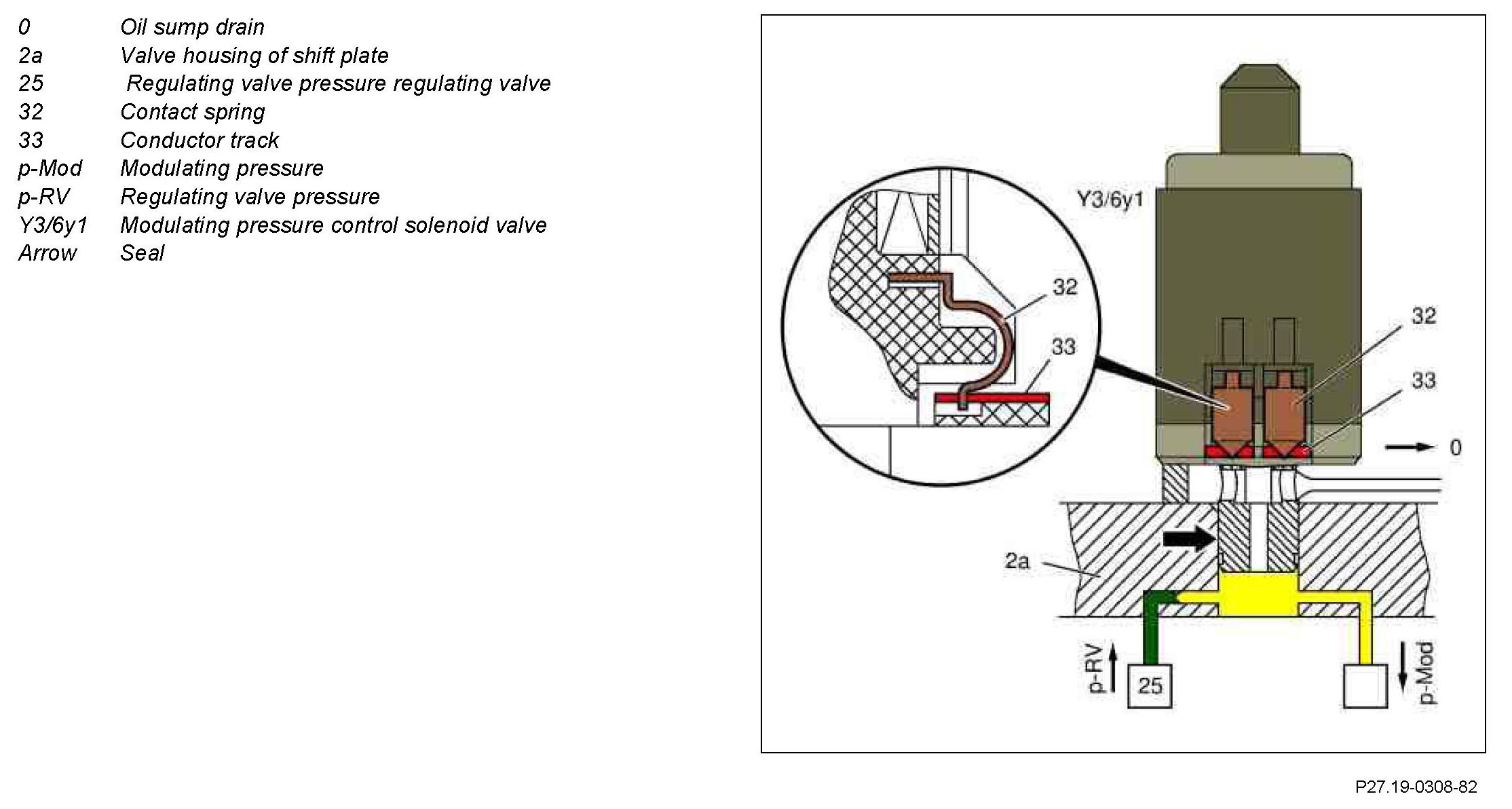

The modulating pressure regulating solenoid valve (Y3/6y1) has an interference fit and is sealed off to the valve body of the shift plate (2a) by a seal (arrow).

The contact springs (32) on the modulating pressure regulating solenoid valve (Y3/6y1) engage in a slot in the conductor tracks (33). The force of the contact spring (32) ensures safe contacts.
