GF27.19-P-5112-03G Torque Converter Lockup Clutch PWM Solenoid Valve, Design

GF27.19-P-5112-03G Torque converter lockup clutch PWM solenoid valve, design
- TRANSMISSION 722.6

Component Identification:

Structure

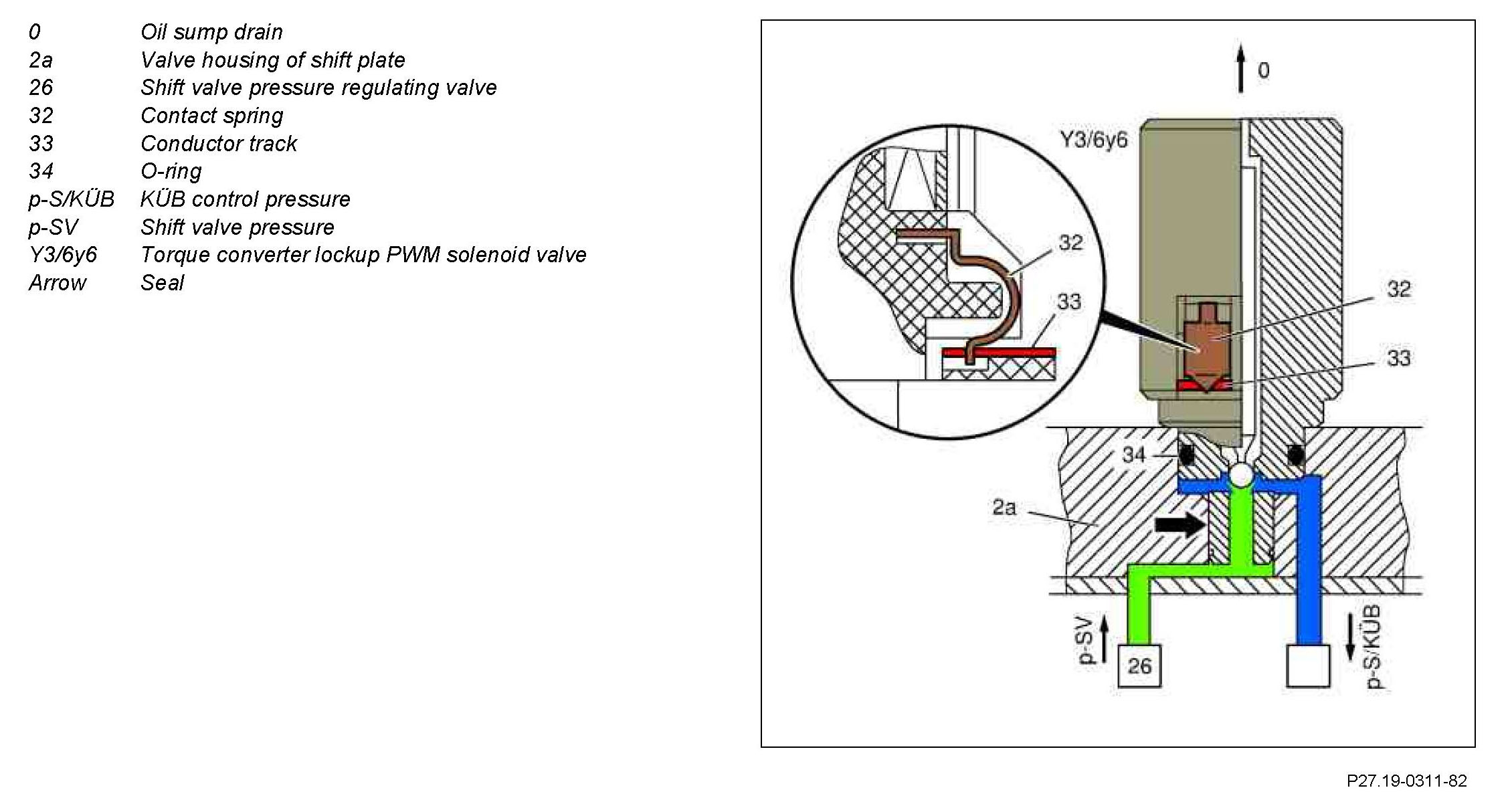

The torque converter lockup PWM solenoid valve (Y3/6y6) is sealed off to the valve body of the shift plate (2a) by an O-ring (34) and a seal (arrow).

The contact springs (32) on the PWM converter lockup solenoid valve (Y3/6y6) engage in a slot in the conductor tracks (33). The force of the contact spring (32) ensures safe contacts.
