GF27.60-P-5133-04G Regulating Slide-Valve Pressure Control Function

GF27.60-P-5133-04G Regulating slide-valve pressure control function
- TRANSMISSION 722.6





Operation

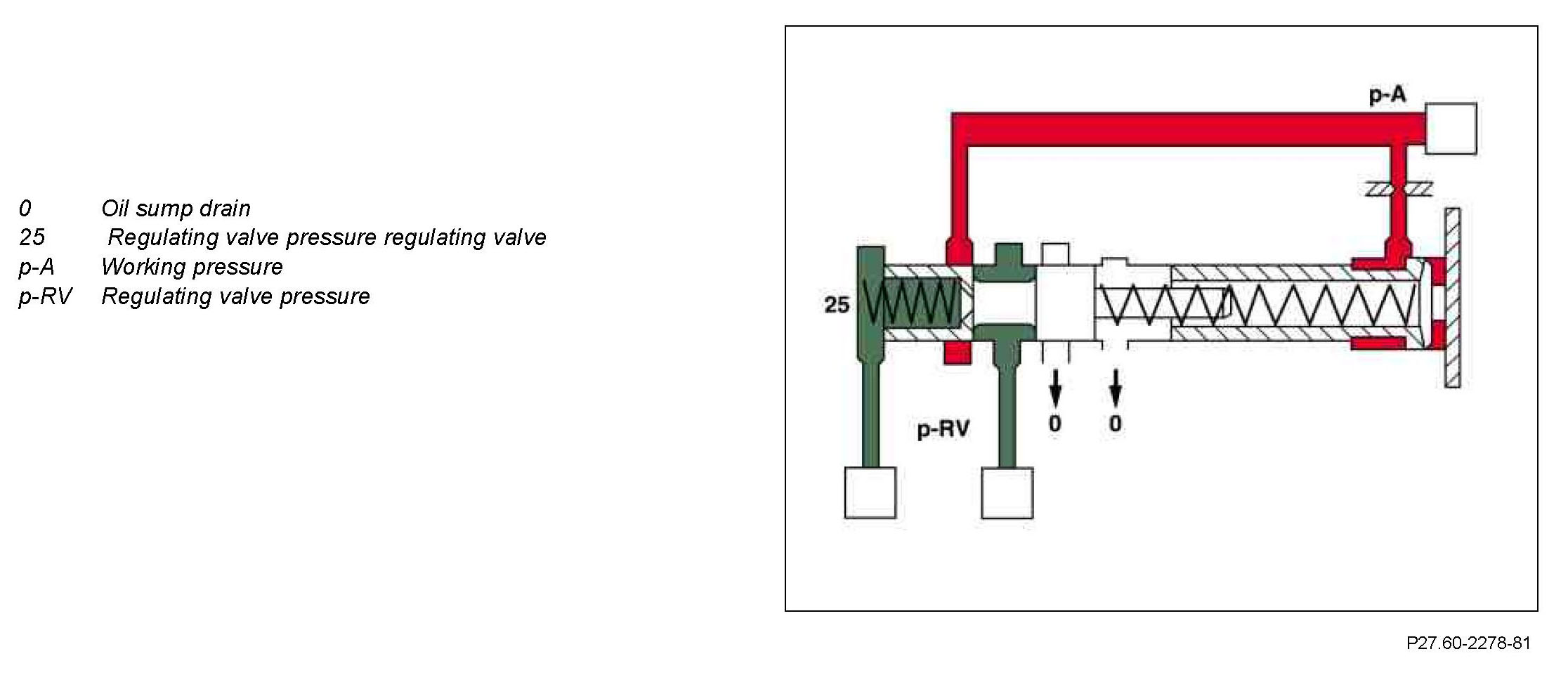

The regulating valve pressure (p-RV) is controlled up to the maximum pressure at the regulating valve pressure regulating valve (25) depending on the working pressure (p-A).
