GF27.60-P-5134-04G Shift Valve Pressure Regulating Valve, Function

GF27.60-P-5134-04G Shift valve pressure regulating valve, function
- TRANSMISSION 722.6





Operation

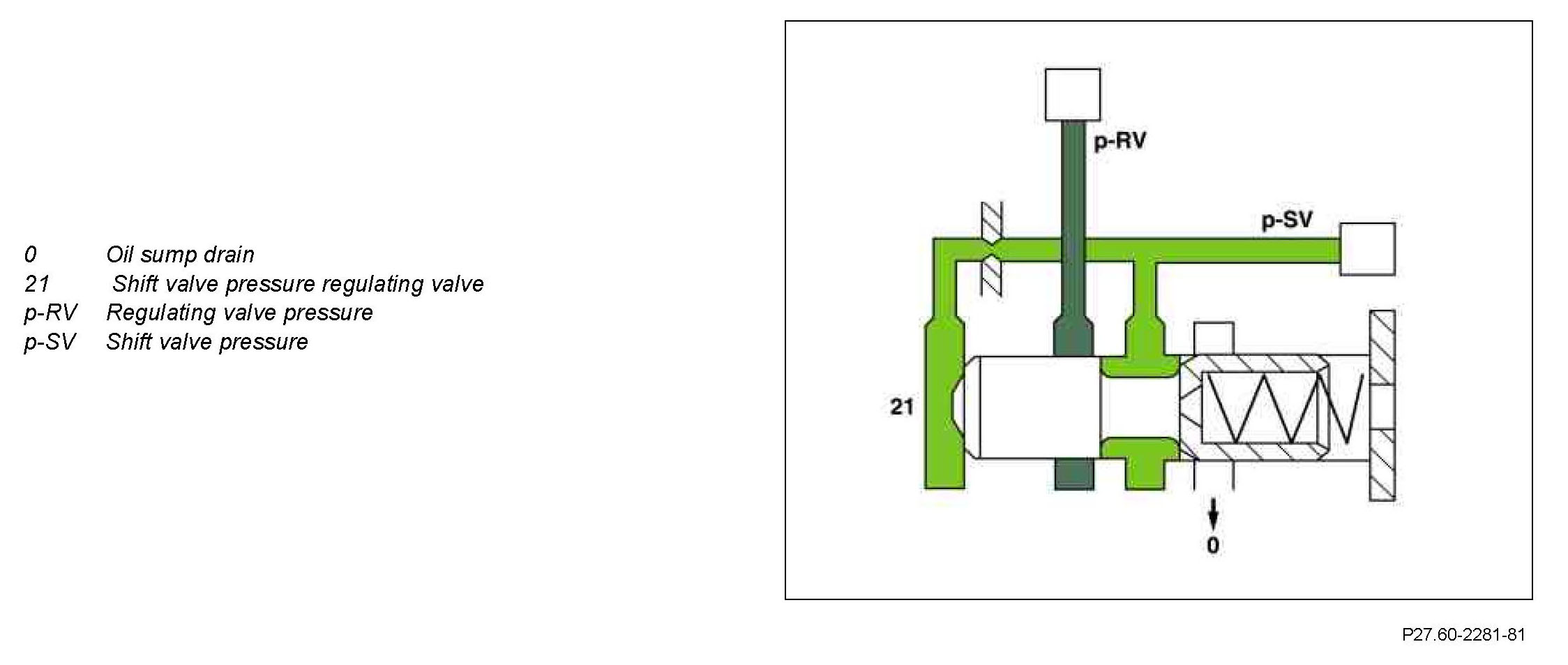

The variable regulating valve pressure (p-RV) is controlled to a constant shift valve pressure (p-SV) at the shift valve pressure regulating valve (21) and is used to supply the solenoid valves for 1-2 and 4-5 shift, 3-4 shift, 2-3 shift (Y3/6y3, Y3/6y4, Y3/6y5) as well as the PWM solenoid valve for the converter lockup (Y3/6y6).
