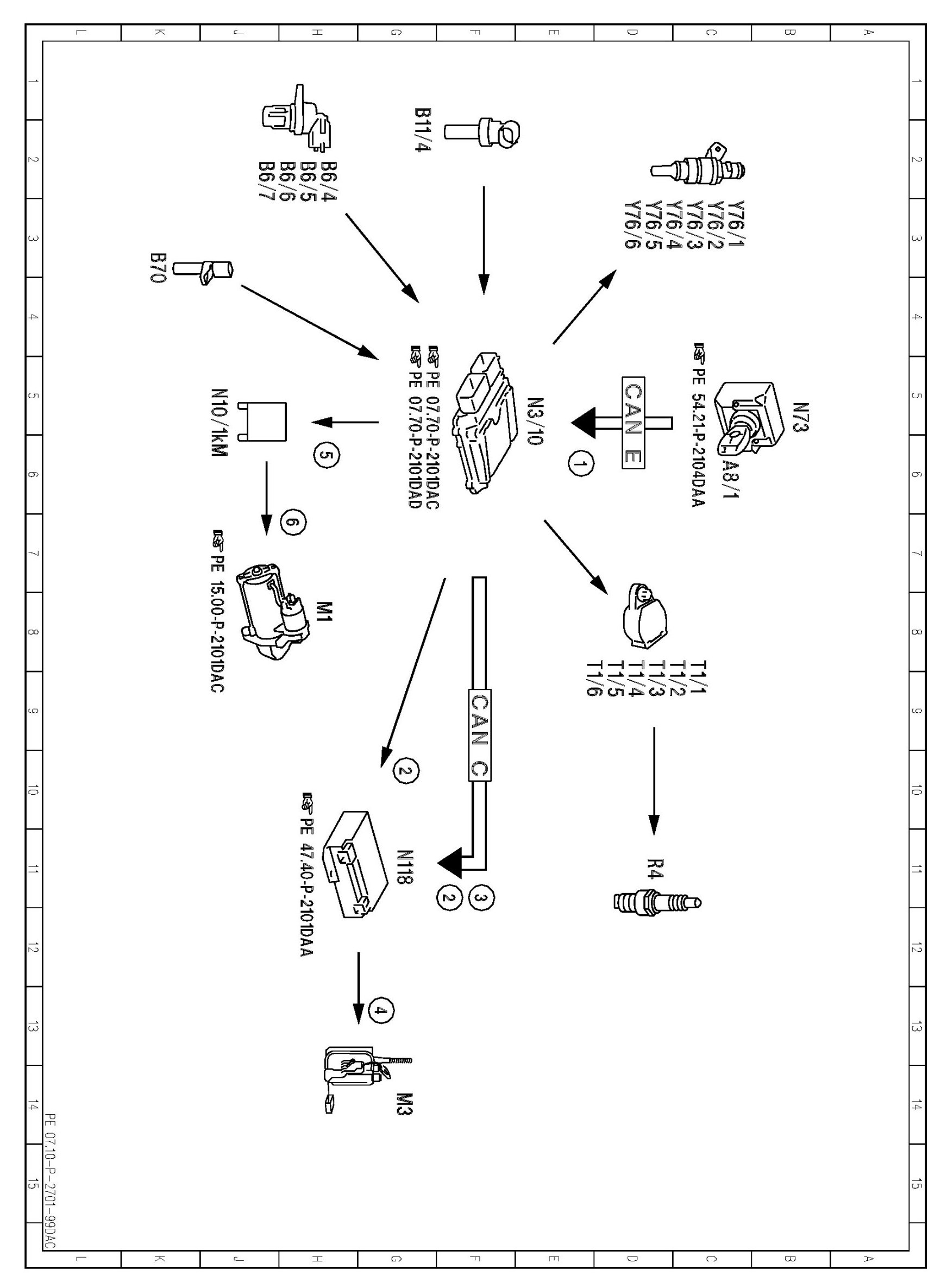

PE07.10-P-2701DAC Electrical Function Schematic For Starting

PE07.10-P-2701DAC Electrical Function Schematic For Starting

ENGINE 272.98 in MODEL 212


































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
