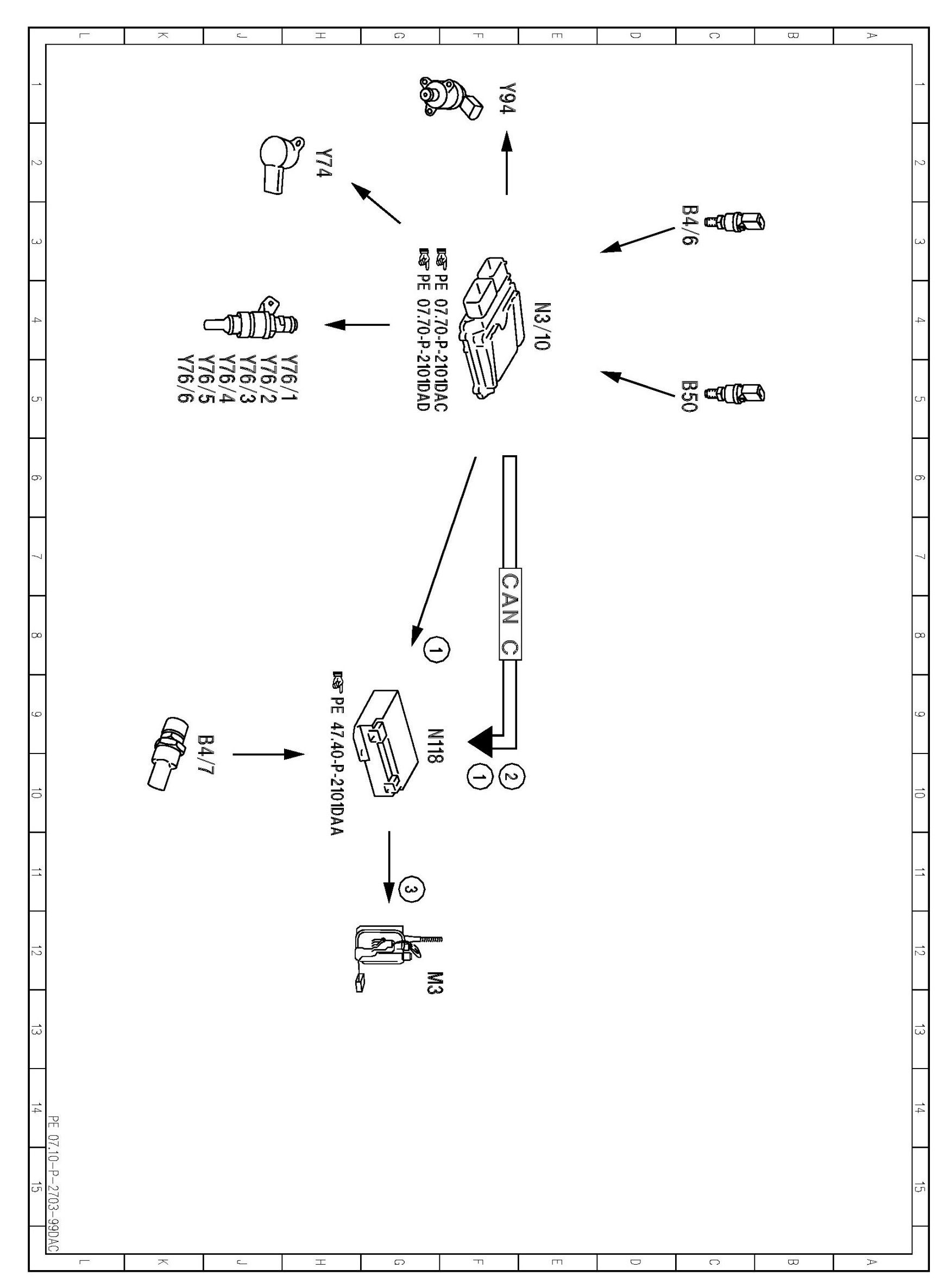

PE07.10-P-2703DAC Electrical Function Schematic For Fuel Supply

PE07.10-P-2703DAC Electrical Function Schematic For Fuel Supply

ENGINE 272.98 in MODEL 212

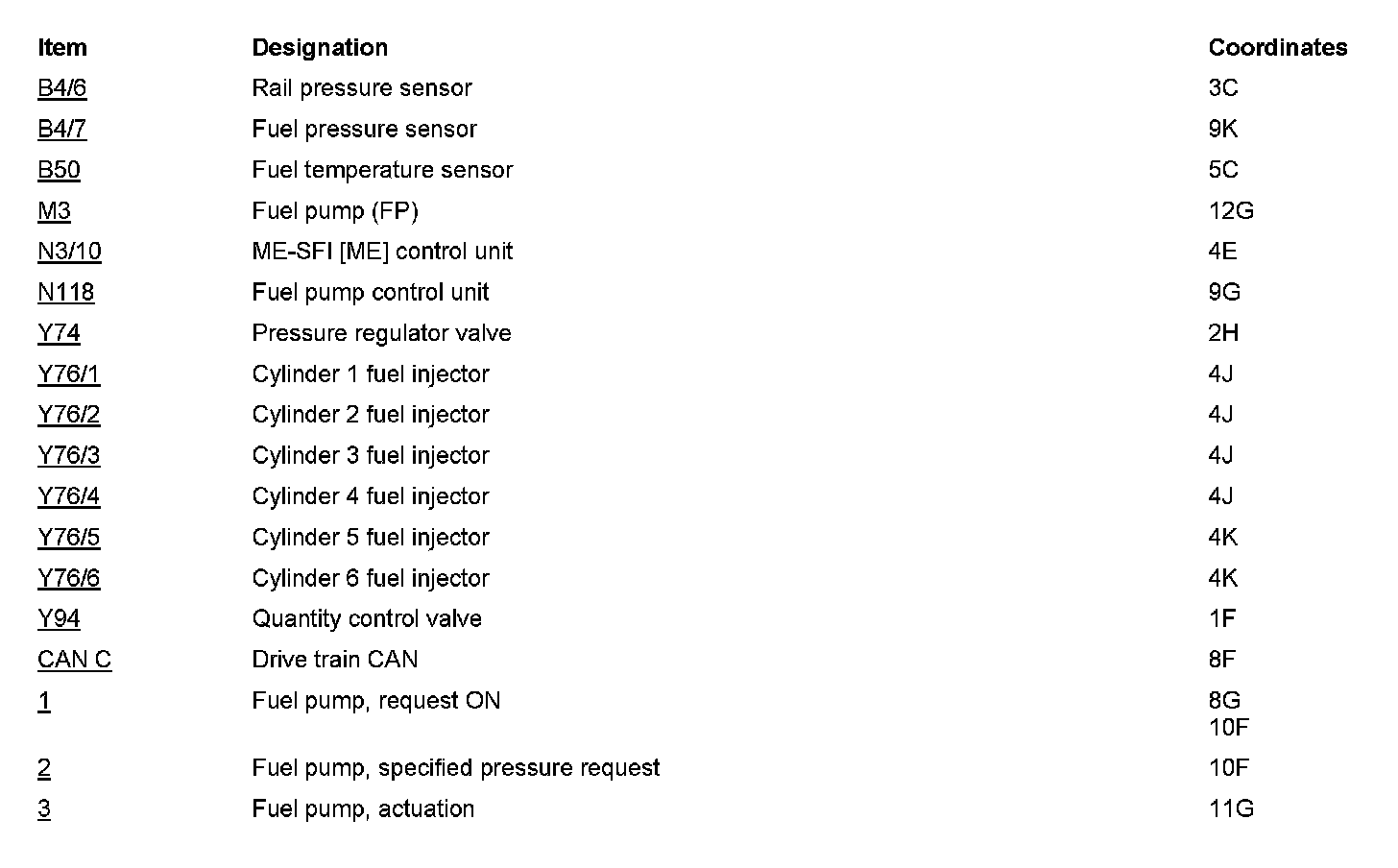

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
