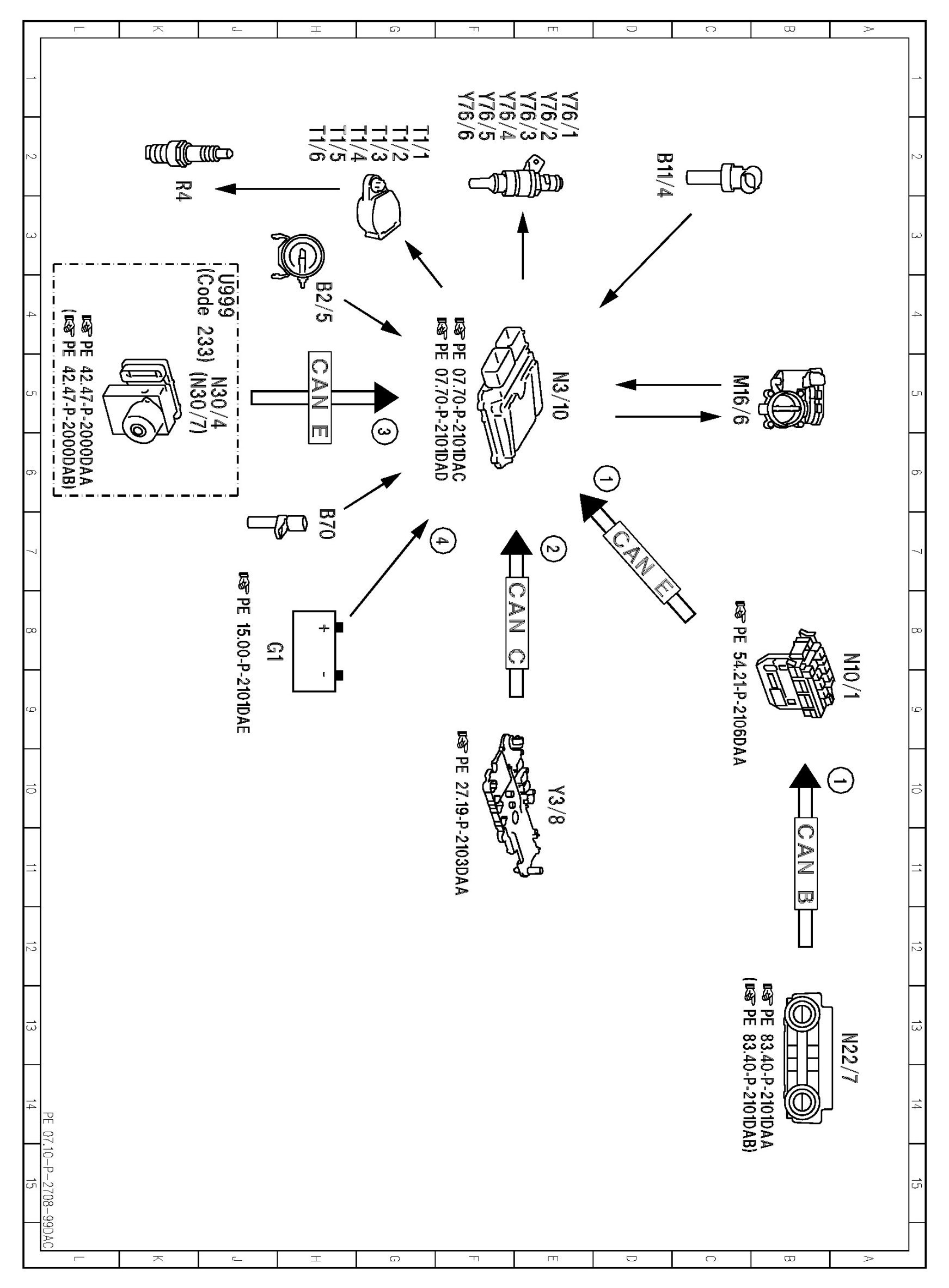

PE07.10-P-2708DAC Electrical Function Schematic For RPM Control

PE07.10-P-2708DAC Electrical Function Schematic For RPM Control

ENGINE 272.98 in MODEL 212






























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
