PE07.10-P-2715DAC Electrical Function Schematic, Knock Control

PE07.10-P-2715DAC Electrical Function Schematic, Knock Control

ENGINE 272.98 in MODEL 212

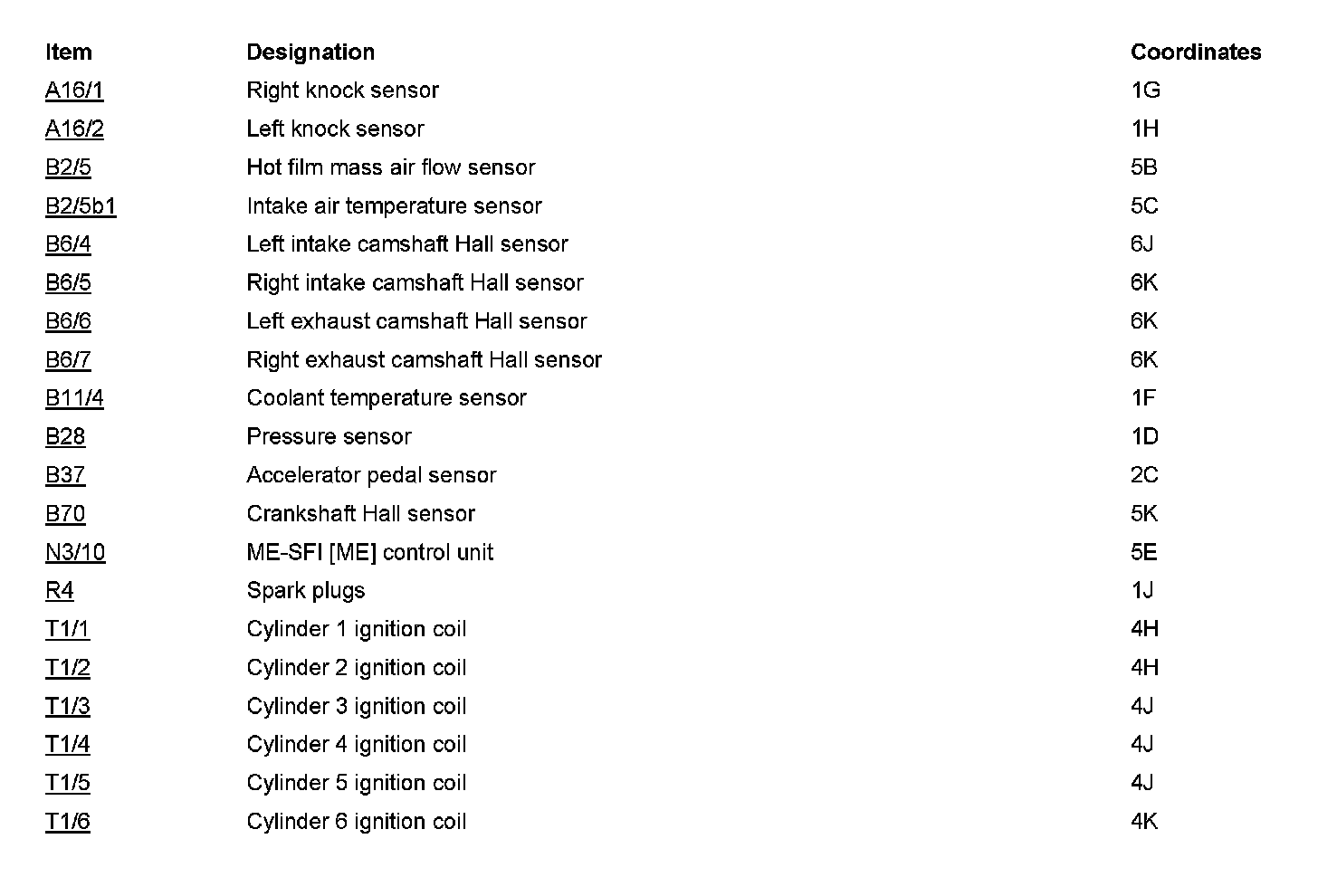

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
