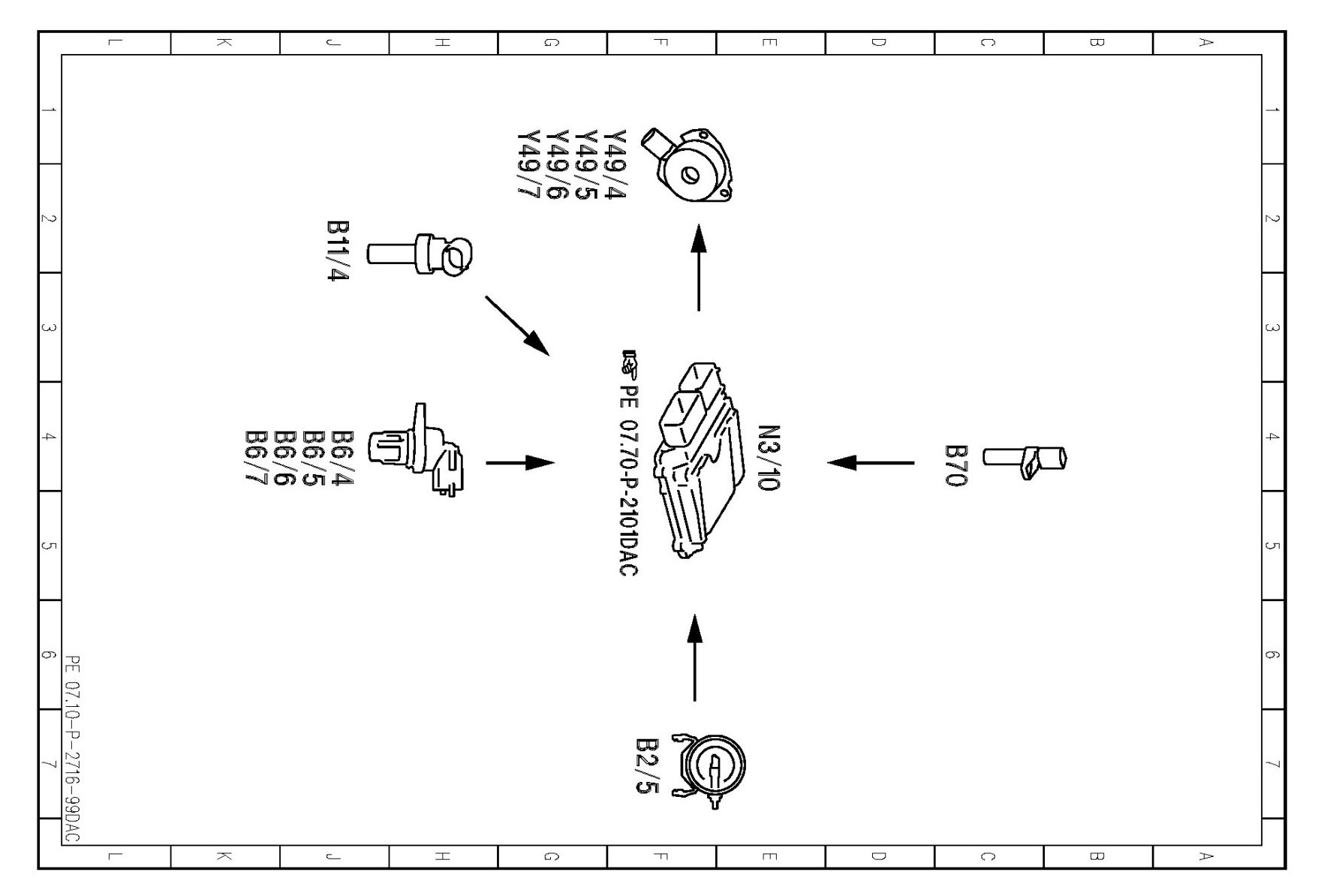

PE07.10-P-2716DAC Electrical Function Schematic, Camshaft Adjustment

PE07.10-P-2716DAC Electrical Function Schematic, Camshaft Adjustment

ENGINE 272.98 in MODEL 212


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
