Splash Guard: Service and Repair



AR61.20-P-1105EW Remove/install Bottom Engine Compartment Paneling


Component Identification:






Component Identification:

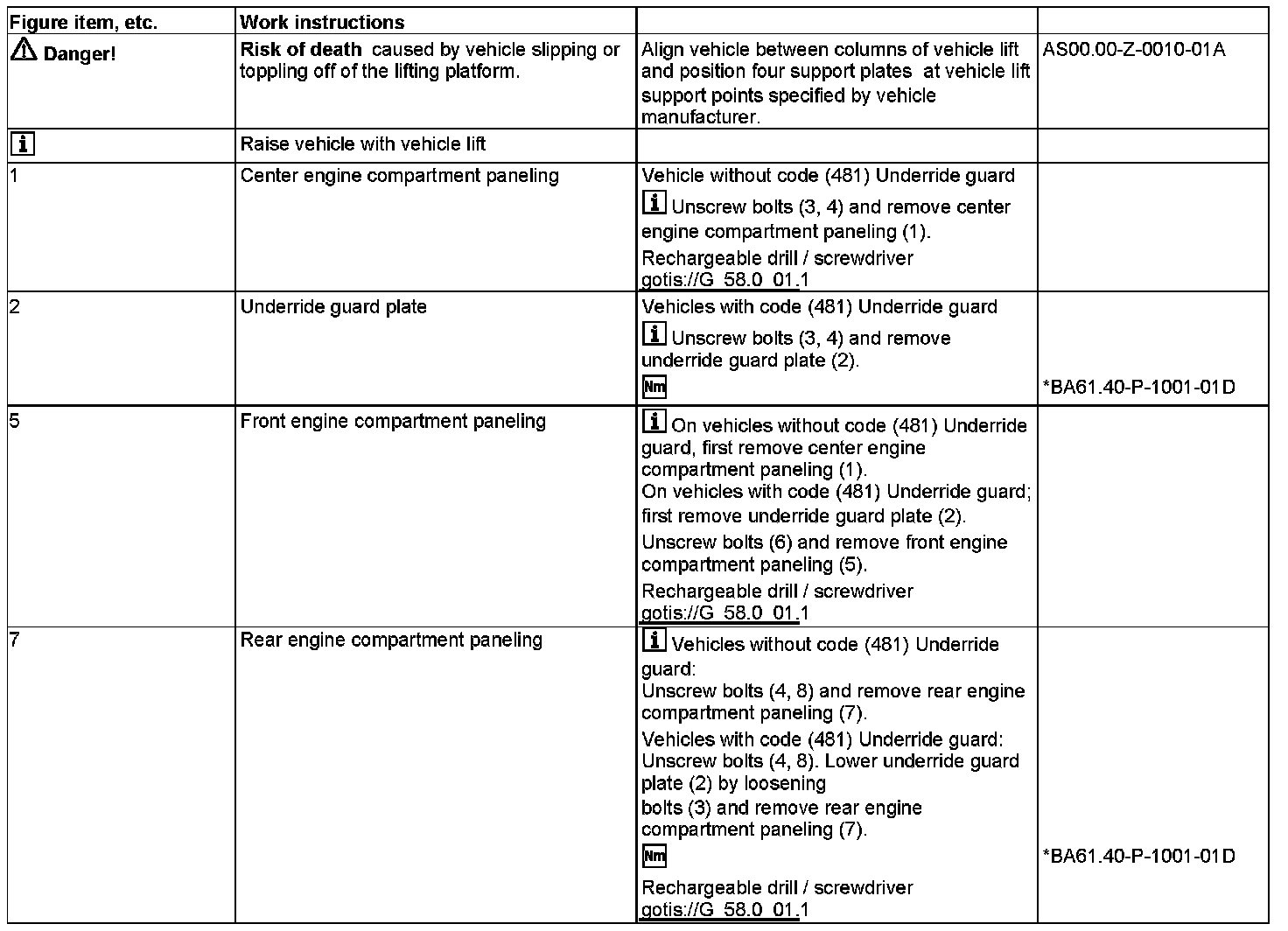

Steps 1 - 7:

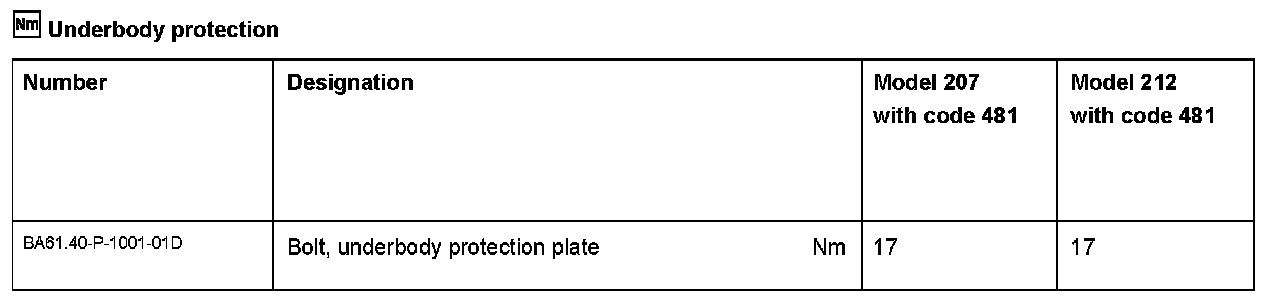

Underbody Protection:
