Electrical Diagrams

Heated Windshield pe67.10-p-2000dfa
- with CODE (Z04) Light armoring

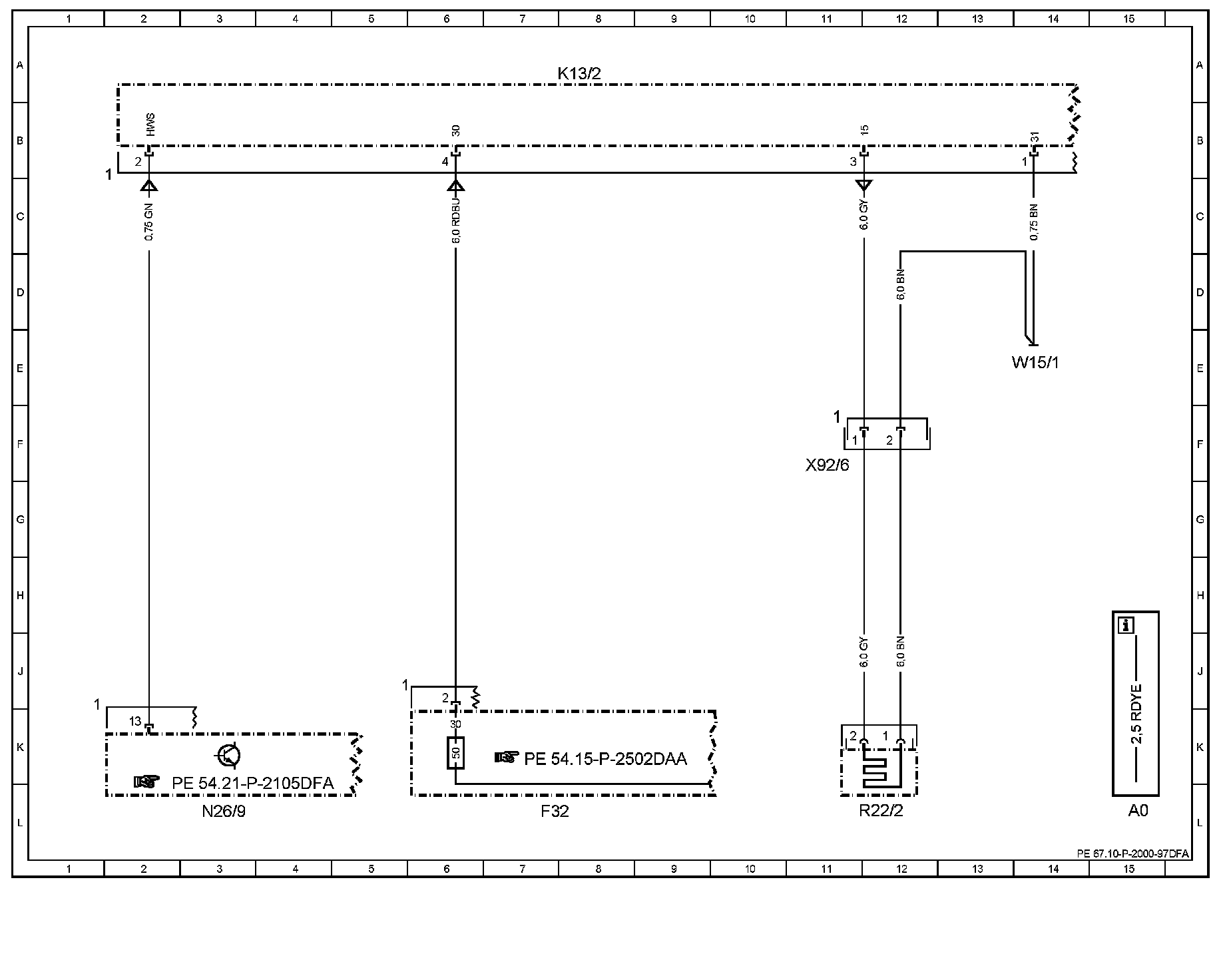

Wiring Diagram:

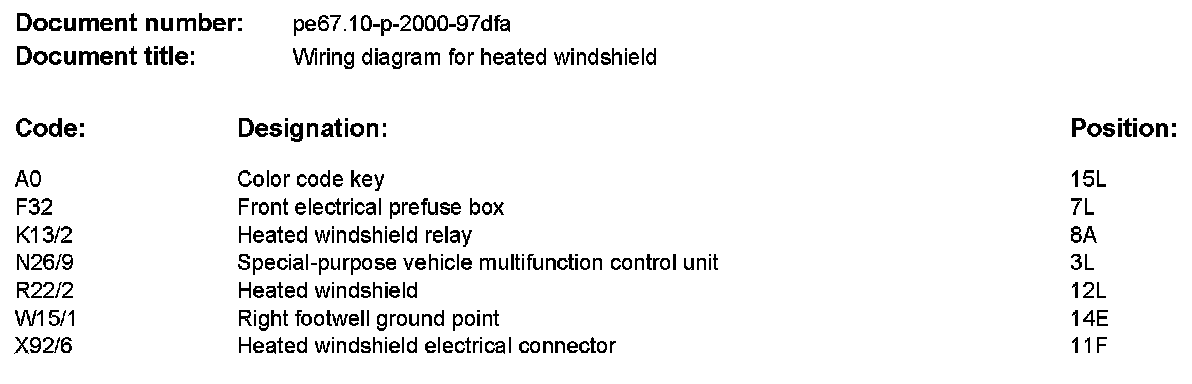

Component Description/Coordinates, A0 To X92/6:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
