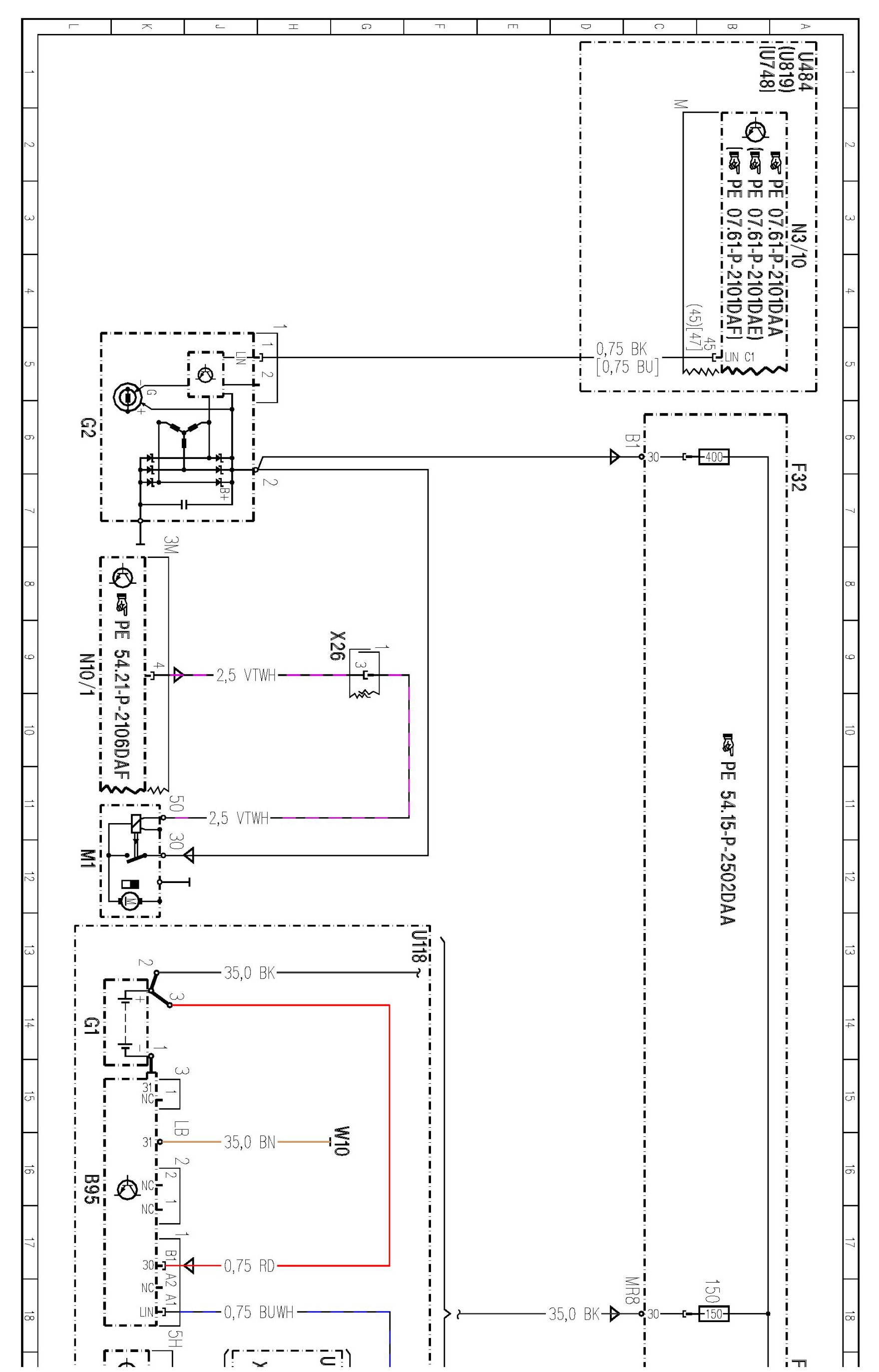

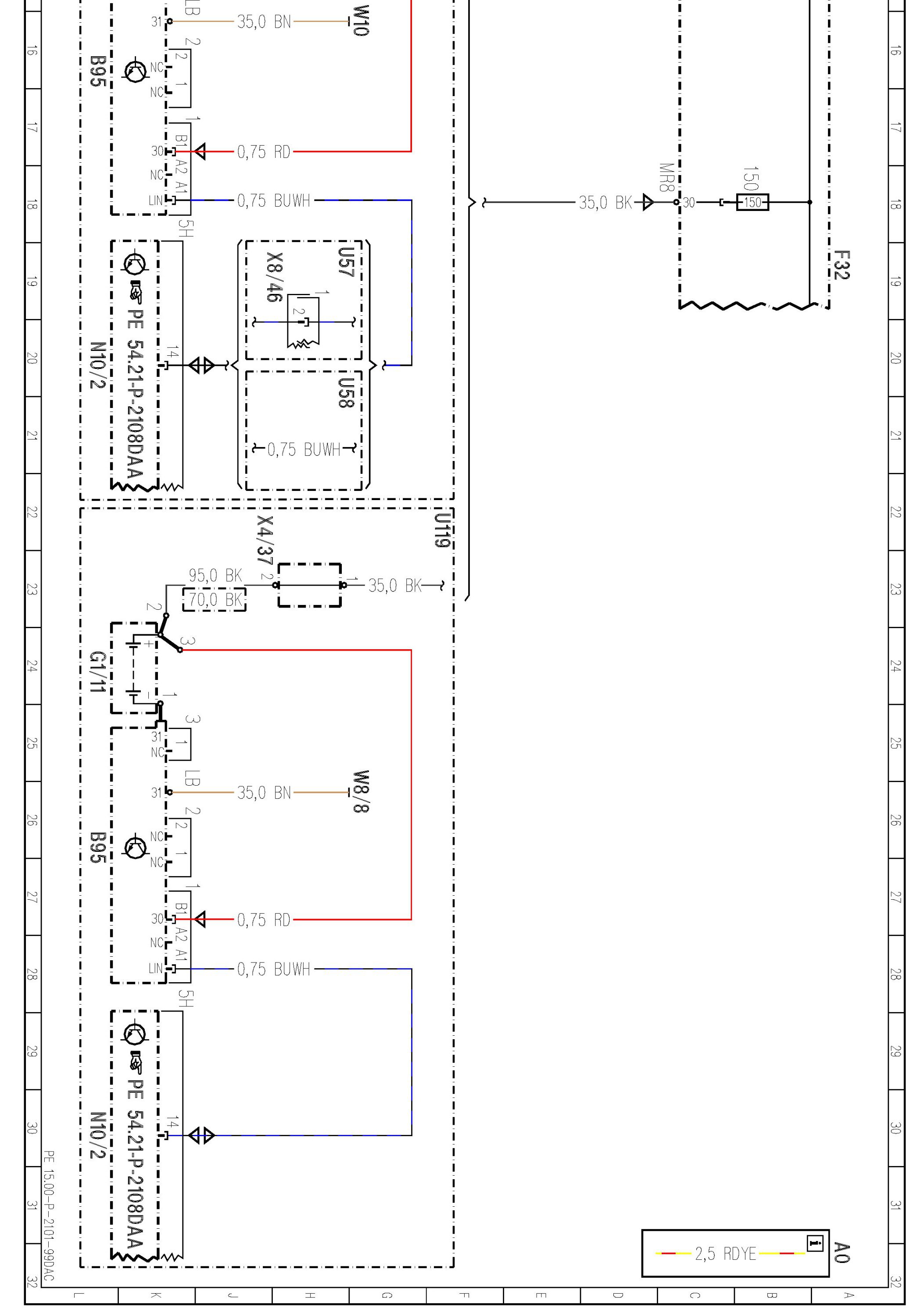

System Diagram

PE15.00-P-2101DAC Starter, Alternator, Battery
ENGINE 271.9, 273, 272 (except, 272.983) in MODEL 212














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
