Alternator: Service and Repair



AR15.40-P-5032EW Remove/install alternator

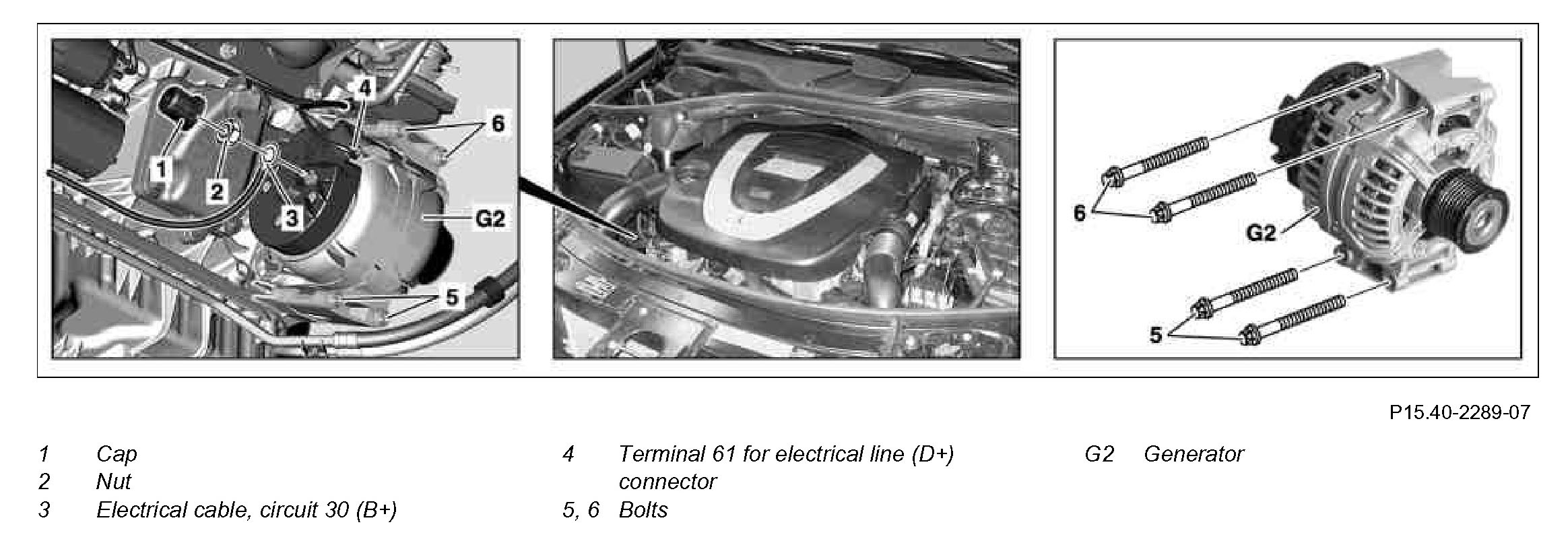

Component Identification:

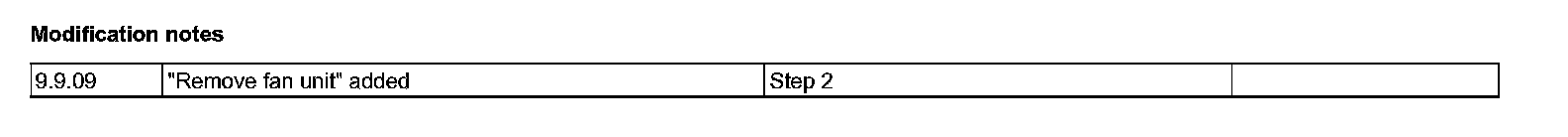

Modification notes:

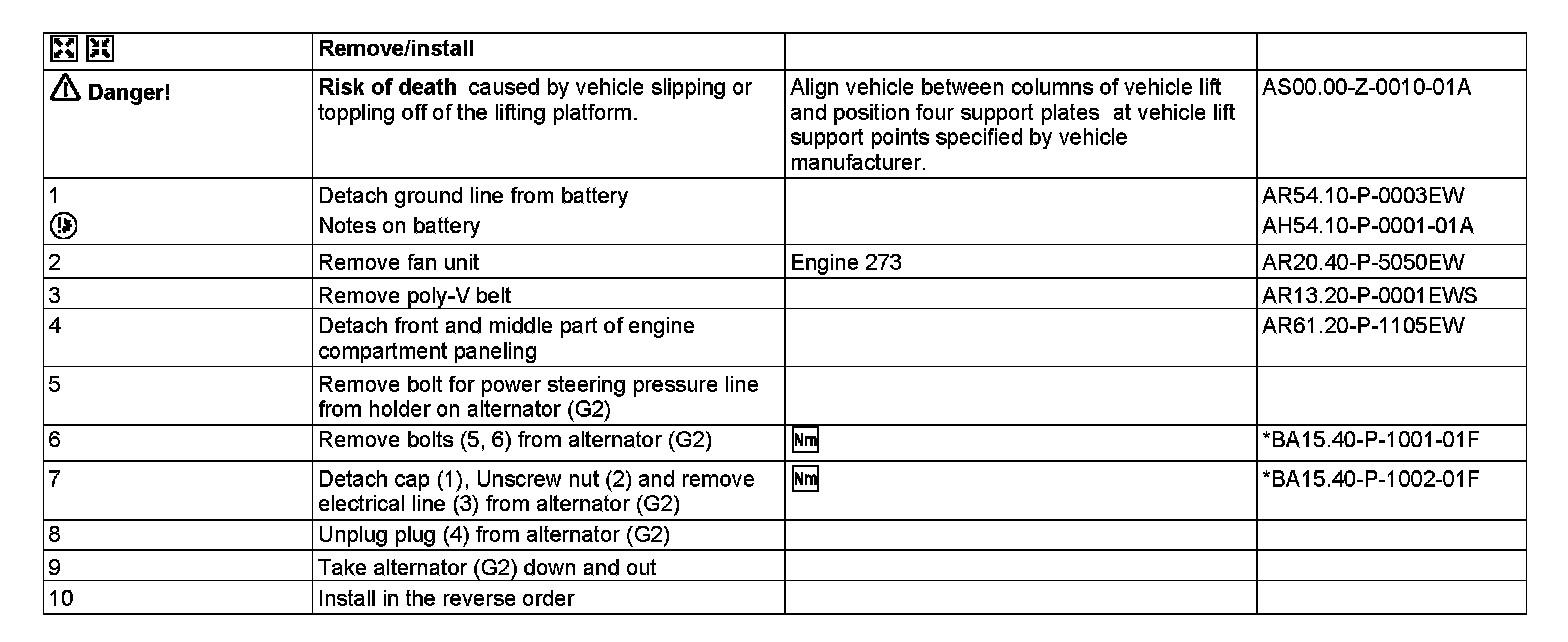

Steps 1-10:




Alternator:
