AR42.10-P-0225CMG Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake

AR42.10-P-0225CMG Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake
MODEL 204 with ENGINE 156
MODEL 212.077 /277, 218.374
- except CODE (B07) Ceramic brake system

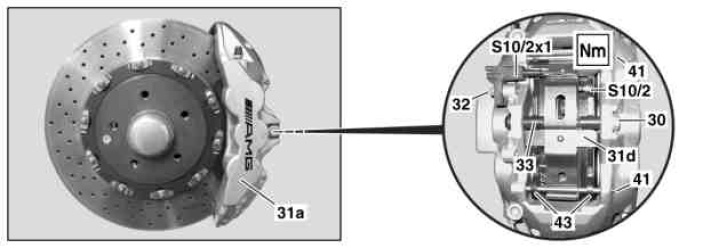

30 Screw
31a Brake caliper
31d Retaining spring
33 Support
41 Retaining pin
43 Brake pad

S10/2 Right front brake wear sensor
S10/2x1 Right front brake wear sensor electrical connector

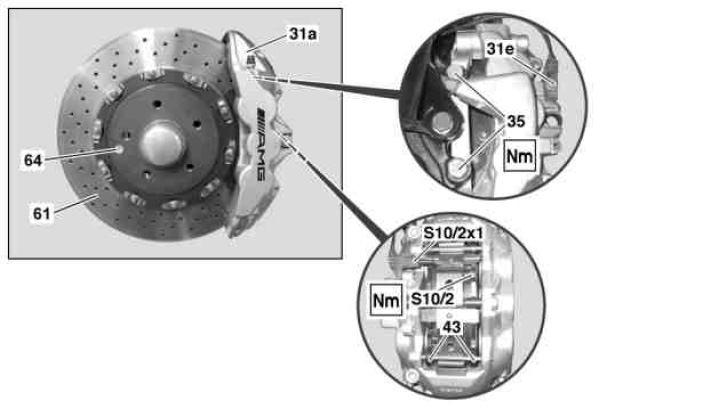

31a Brake caliper
31e Screw
35 Bolts
43 Brake pad
61 Brake disk
64 Security bolt

S10/2 Right front brake wear sensor
S10/2x1 Right front brake wear sensor electrical connector























129 589 00 91 00
Set of stop plugs





601 589 07 63 00
Wedge





000 589 52 43 00
Pusher tool
