Fuel Pump: Diagrams

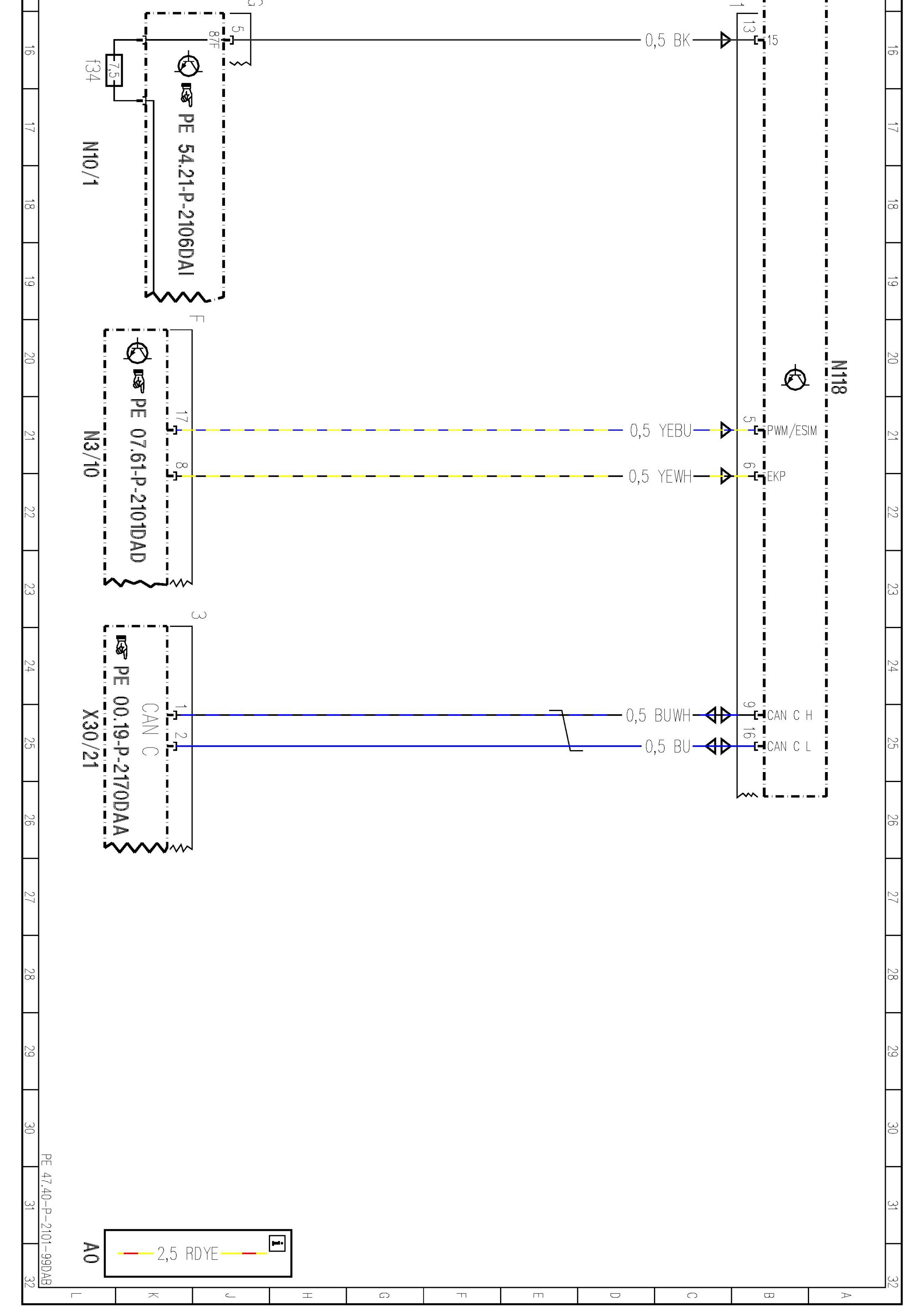

PE47.40-P-2101DAB Fuel System Control Unit
ENGINE 156 in MODEL 212.077 /277
- control unit N118






























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
