Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2010
>>
S 400 (221.195) V6-3.5L (272.974) Hybrid
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Collision Avoidance and Parking Assist Systems
>>
Description and Operation
>>
GF54.30-P-0009-02LE Attention Assist, Location of Components
GF54.30-P-0009-02LE Attention Assist, Location of Components

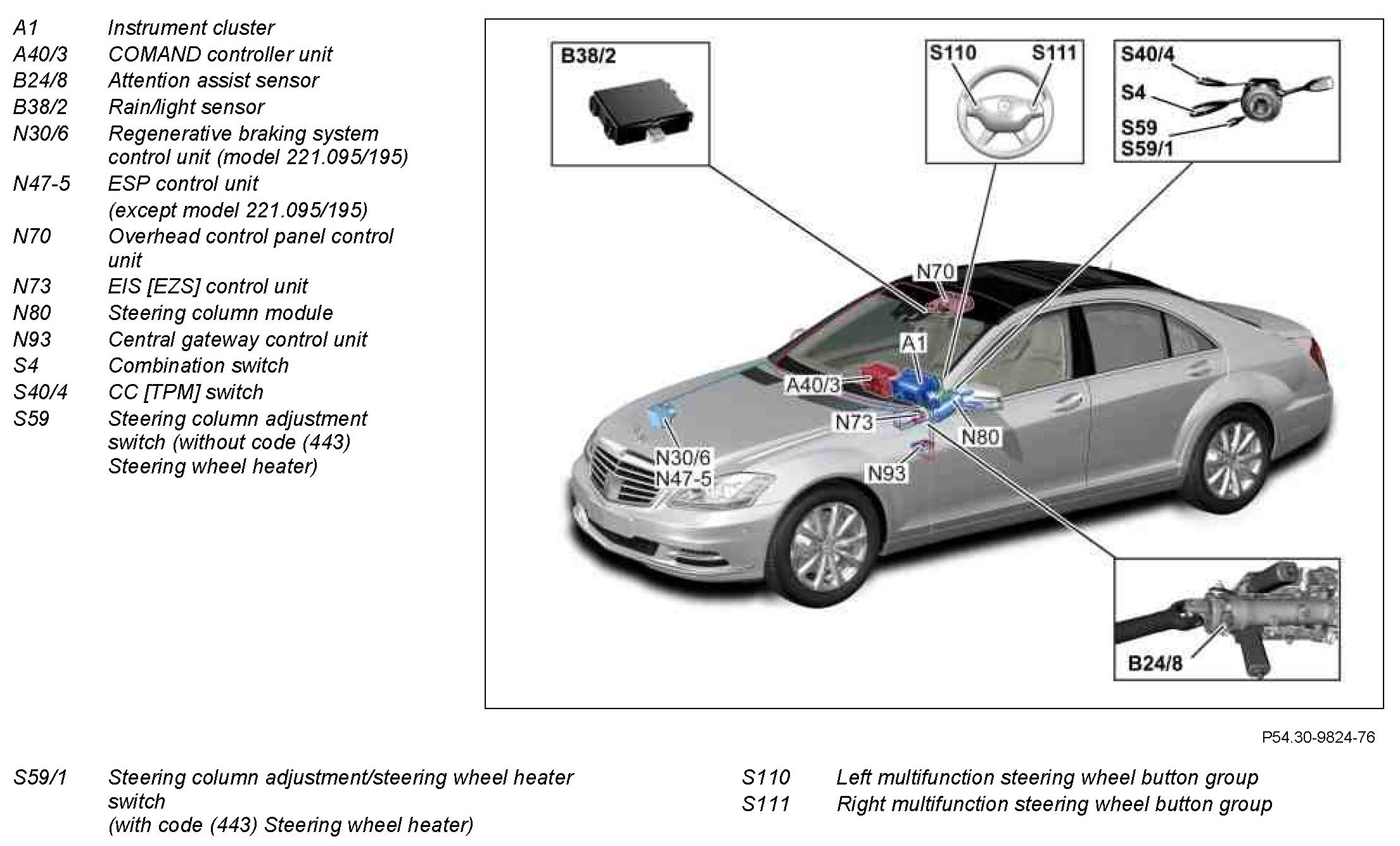

GF54.30-P-0009-02LE Attention Assist, Location Of Components
- as of model year 2010
Component Identification:
