GF82.90-P-0002-04LEA Rear Entertainment, Operating Instructions

GF82.90-P-0002-04LEA Rear Entertainment, Operating Instructions
- with CODE (864) Rear entertainment system

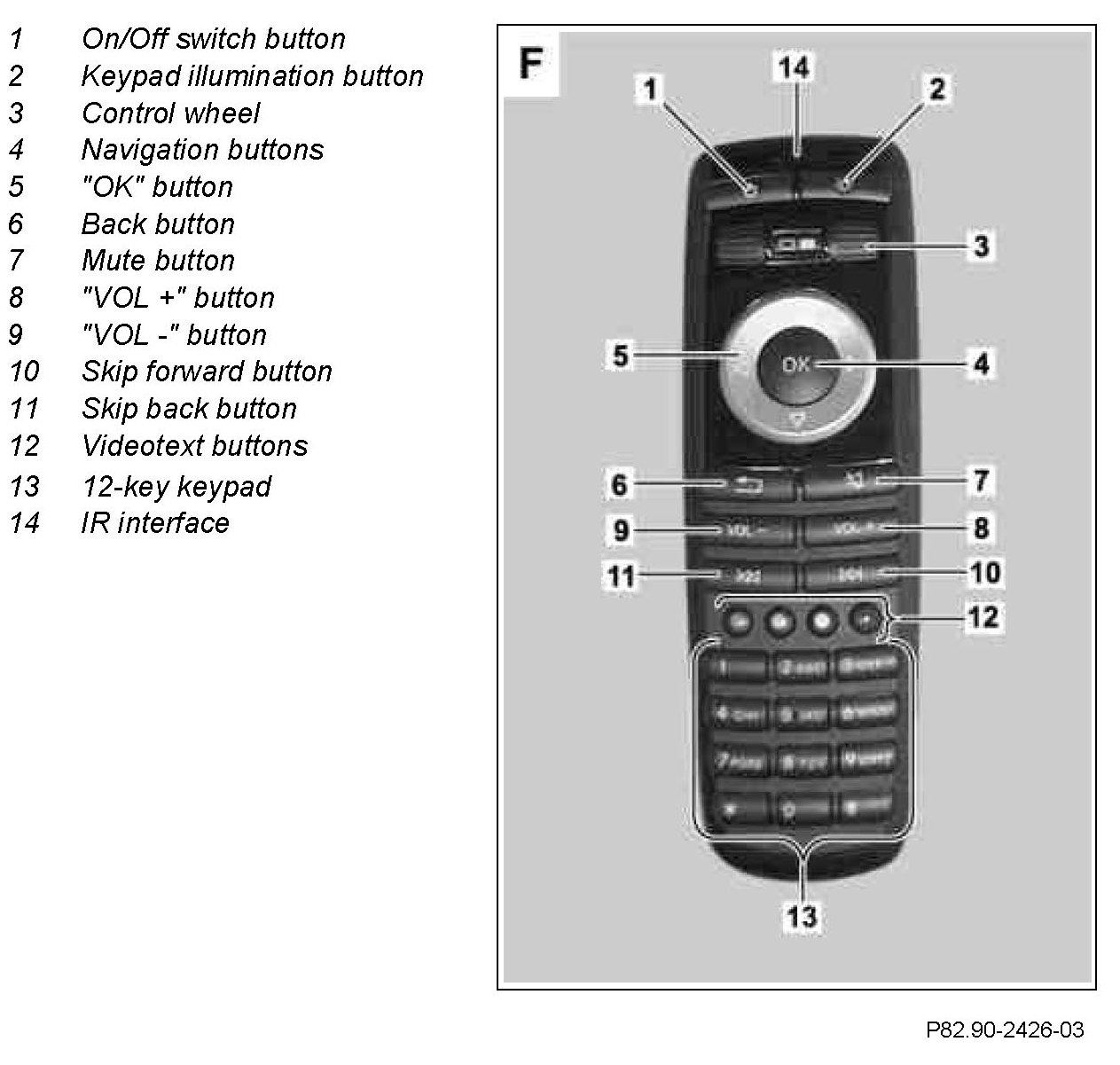

Remote control (F) for operating rear entertainment system

Component Identification:

Rear entertainment system, general
The rear entertainment system is operated using the system's remote control. Menu guidance uses the left rear display (A40/5) or the right rear display (A40/6) and the navigation buttons, which after being selected must be confirmed using the "OK" button. The following basic functions can be controlled:
^ "DISC" basic function
^ "TV" basic function (with code (863) Digital/analog TV tuner)
^ "COMAND" basic function
^ "Aux" base function
^ "System" base function

"DISC" basic function
The "Disc" base function is started automatically by inserting a CD/ DVD into the DVD player (A40/4). It can also be called up by means of the remote control (select "Disc" in the basic screen).

If the "Disc" base function is called up by means of the remote control and there is no data storage device in the DVD player, a fault message appears on the rear display.

The following information is shown on the rear display:
- Data storage device type ("CD", "DVD-A", "DVD-V", "MP3")
- Track number
- Track name (if stored on data storage device)
- Elapsed playback time
- Graphical time and track display
- Current playback option
- Function bar with appropriate items

The function bar can be used to select the following items and to make settings:
- Playback options:
- "CD" (in CD mode)
- "DVD-A" (in audio DVD mode)
- "DVD-V" (in video DVD mode)
- "MP3" (in MP3 mode)

- Pause (in DVD mode)
- Stop (in DVD mode)
- "Track list" (in CD/DVD mode) or "Folder" (in MP3 mode)
- "Treble"
- "Bass"

The following playback options are available:
- "Normal track sequence"
- "Track shuffle" (in CD/DVD mode)
- "Folder shuffle" (in MP3 mode)

Playback errors can occur when copied audio or video data storage devices are played back.
The large number of available data storage devices means that it is impossible to guarantee that the rear entertainment system can play back all copied CDs/DVDs.

TV" basic function (with code (863) Digital/analog TV tuner)
If the "TV" basic function is called up, the TV screen is displayed in full-screen mode in the application field on the active rear display. A control menu displaying the station currently selected appears in the status bar.
The function bar can be used to select the following items and to make settings:
- "TV":
- "Station list" (receivable stations)
- "Channel input" (precise channel input)
- "Brightness"
- "Contrast"
- "Color"
- "16:9 optimized"
- "4:3"
- "Wide screen"
- "Fix channel"
- "TV standard"
- "Audio"
- "Auto memory"
- "Preset station buttons"

- "Info"
- "Text" (videotext)
- "Treble"
- "Bass"

"COMAND" basic function
The "COMAND" basic function is called up using the remote control ("COMAND" option in the basic screen)
The appropriate basic screen appears on the rear display.
The function bar can be used to select the following items and to make settings:
- "COMAND switched off"
- "No COMAND source active"

"Aux" base function
The "Aux" base function is called up using the remote control (select "Aux" in the basic screen).
The appropriate basic screen appears on the rear display.
The function bar can be used to select the following items and to make settings:
- "COMAND"
- "Source"
"Aux drive"
- "Aux display"
- "COMAND"

- "Treble"
- "Bass"

"System" base function
The system settings are used to define screen-related settings such as design and language.
All system settings can be made individually for each rear display without influencing the other rear display.
- "Settings"
- "Language" (system language)
- "Day design"
- "Night design"
- "Automatic"
- "Brightness"

- "Display off"
