PE82.90-P-2050SAB Electrical Function Schematic For Rear Entertainment AUX Applications

Electrical Function Schematic For Rear Entertainment AUX Applications PE82.90-P-2050SAB
- with CODE (864) Rear entertainment system
- refinement package
- as of 1.6.09

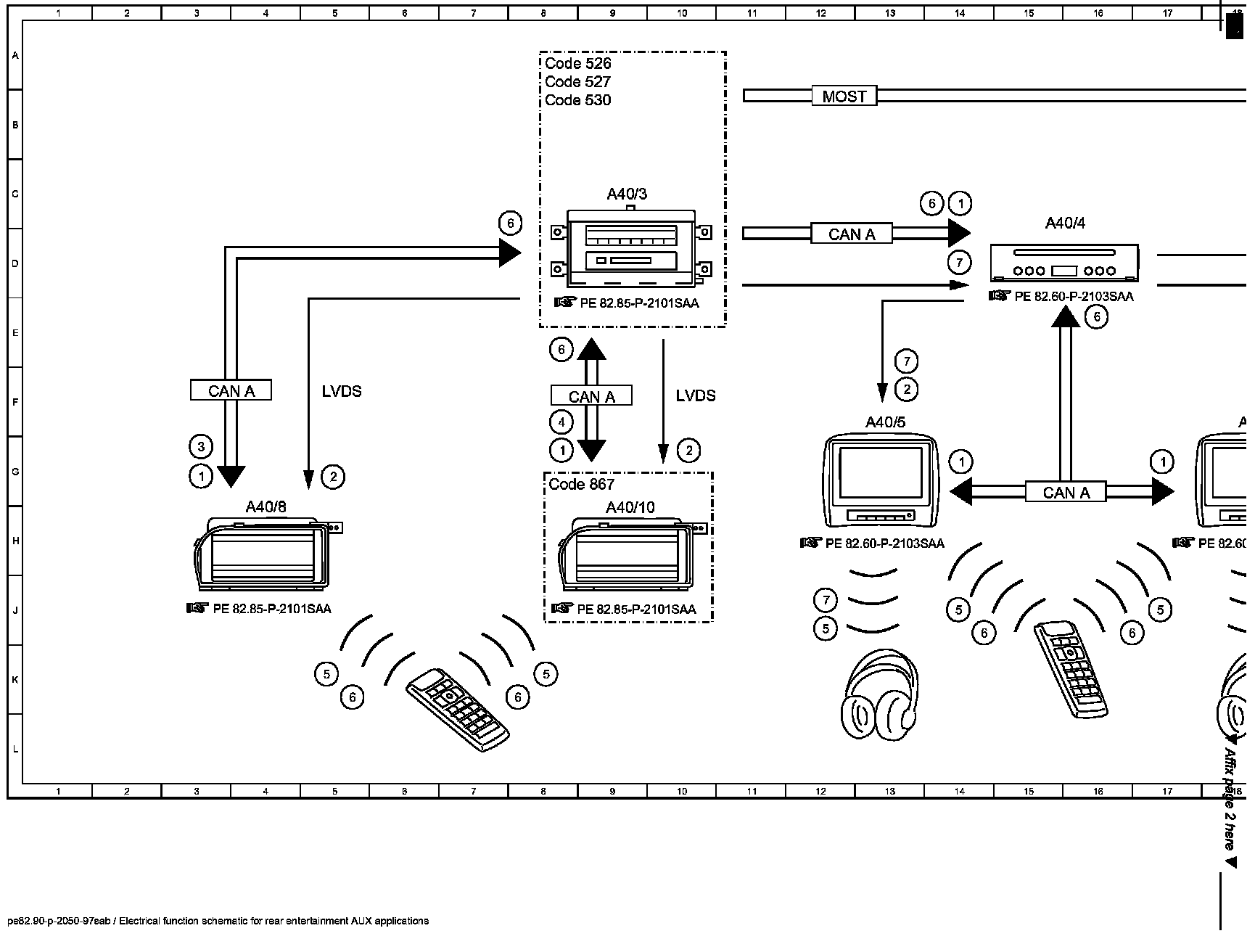

Function Diagram (Part 1):

Function Diagram (Part 2):

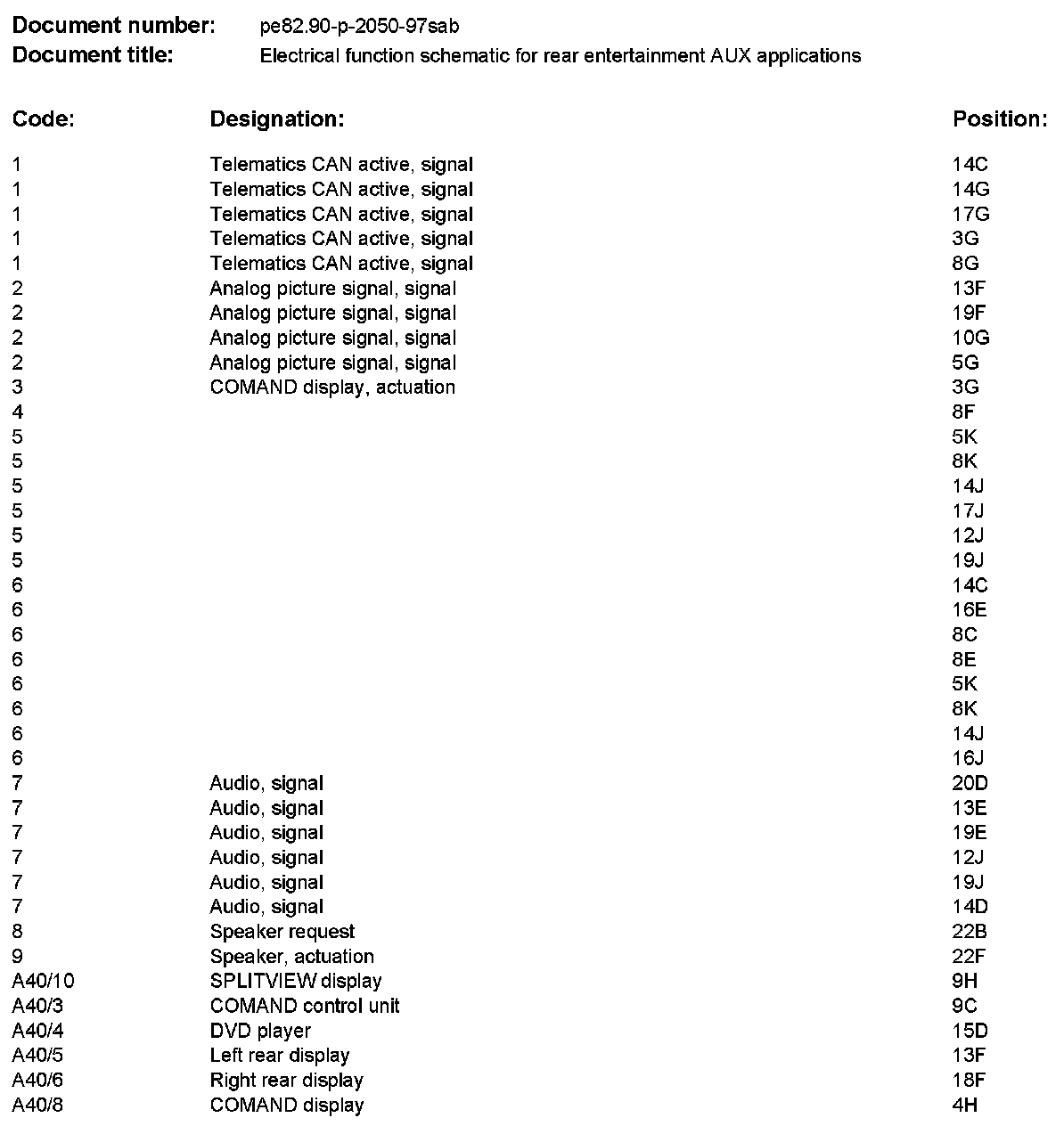

Component Description/Coordinates, 1 To A40/8:

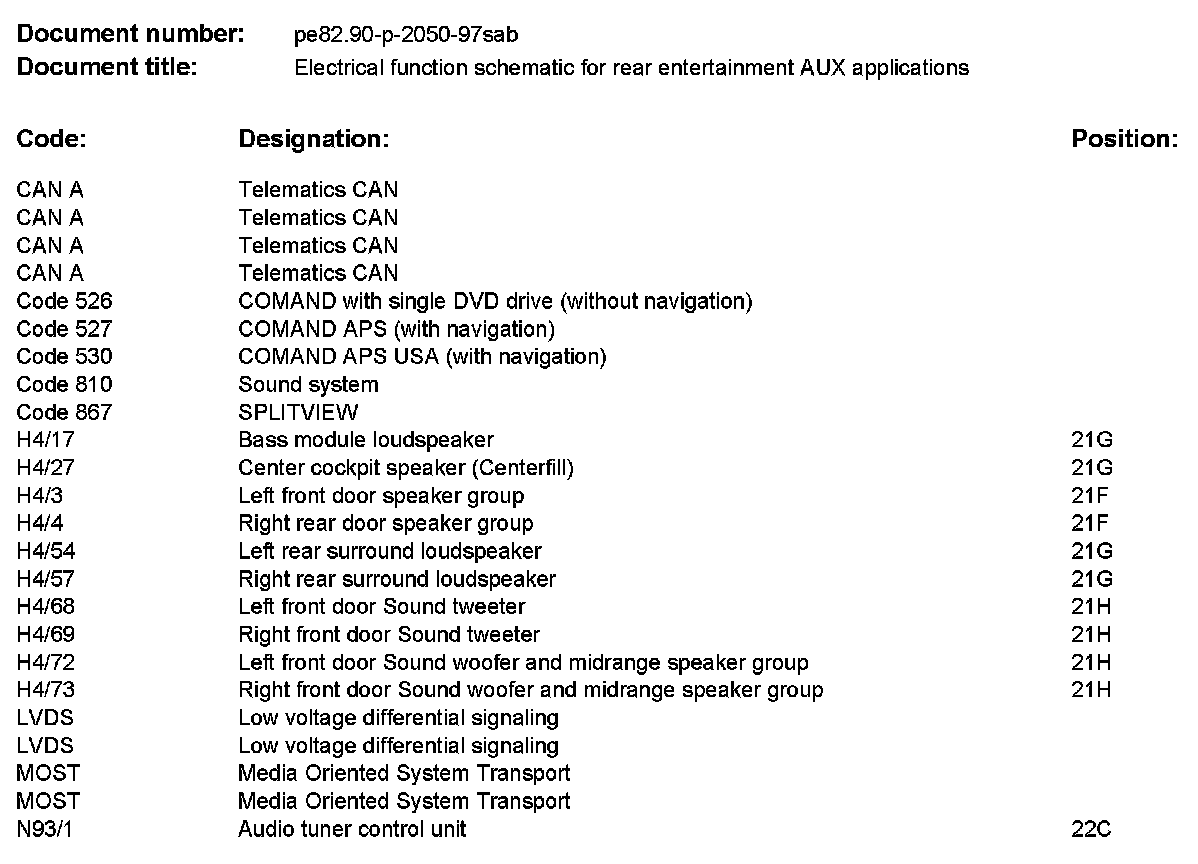

Component Description/Coordinates, CAN A To N93/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
