AR68.10-P-1500SX Remove/Install Cover Below Instrument Panel (Left)
AR68.10-P-1500SX Remove/Install Cover Below Instrument Panel (Left)
AR68.10-P-1500SX Remove/install Cover Below Instrument Panel (Left)

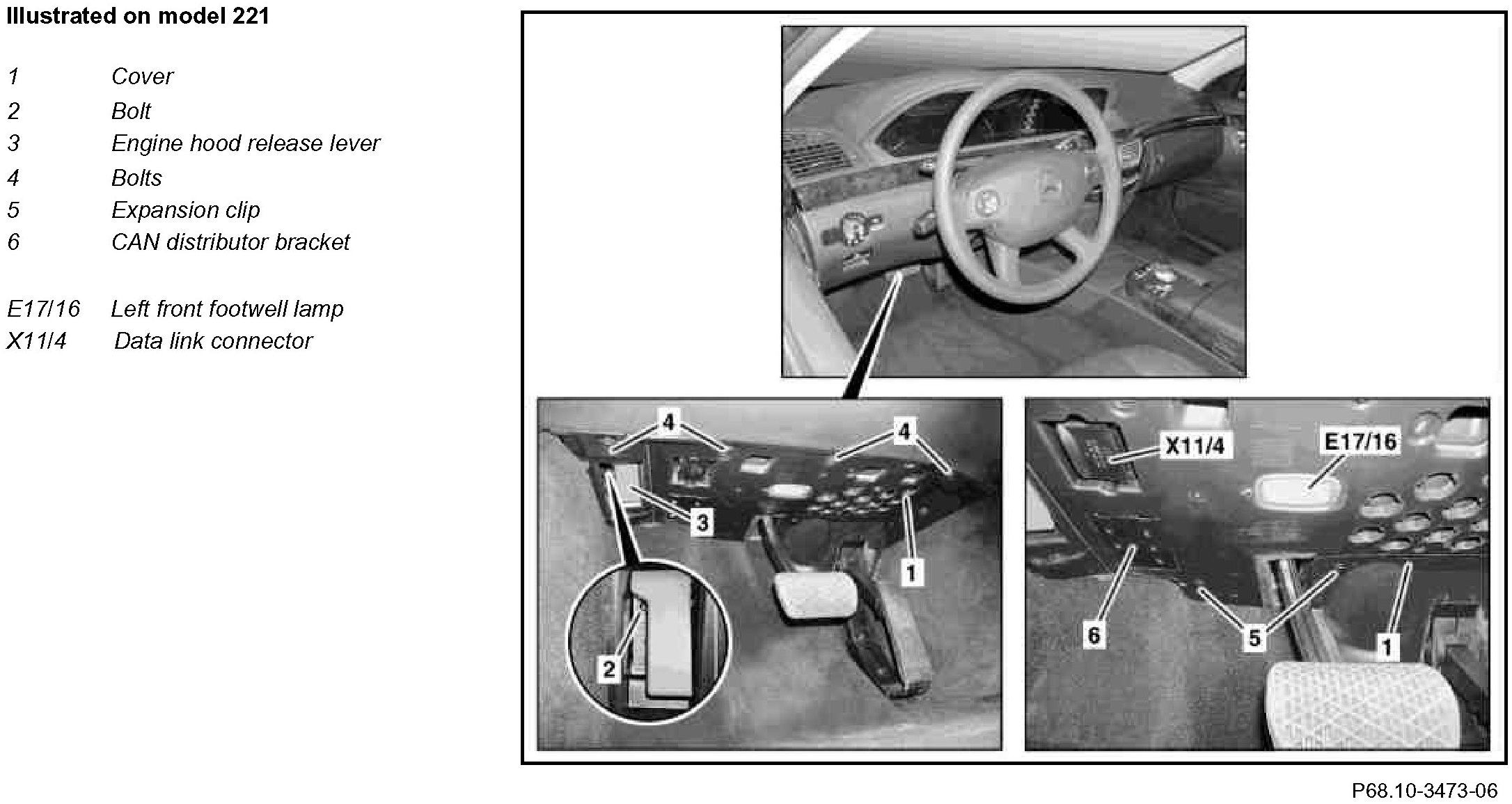

Component Identification:

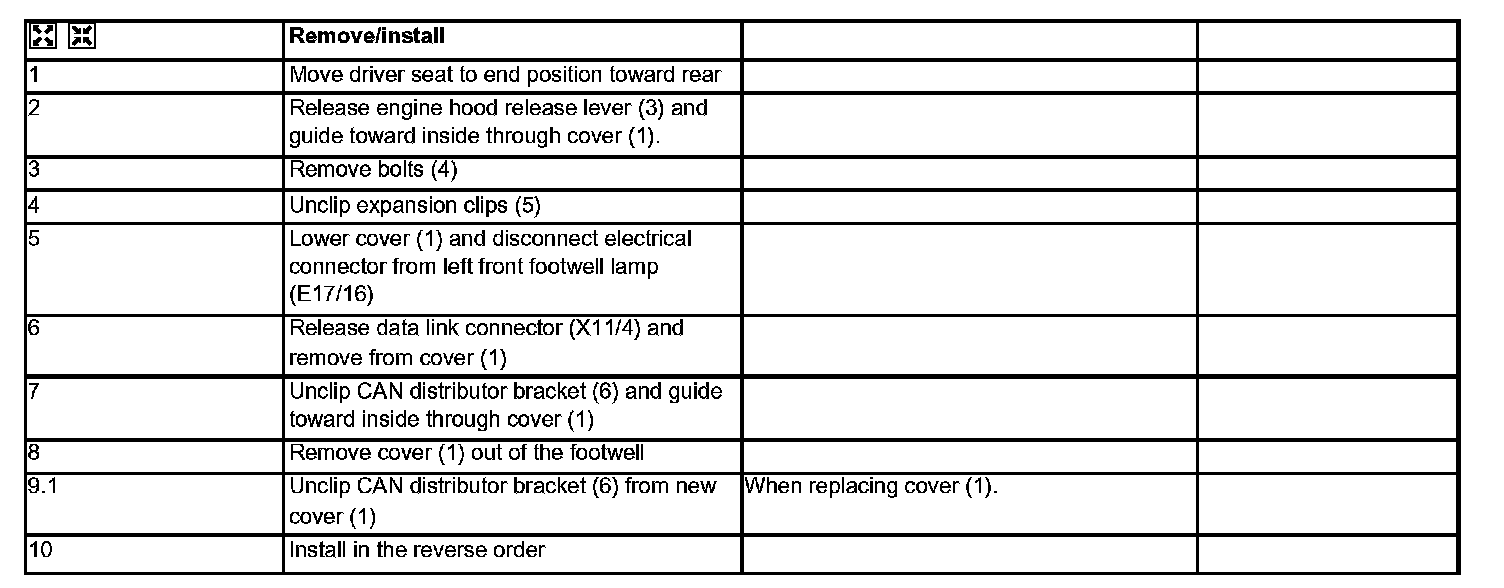

Steps 1-10:
