AP72.00-P-7253SX Check Door Locks and Lubricate
AP72.00-P-7253SX Check Door Locks and Lubricate
AP72.00-P-7253SX Check Door Locks And Lubricate
- with CODE (Z07) Maximum protection

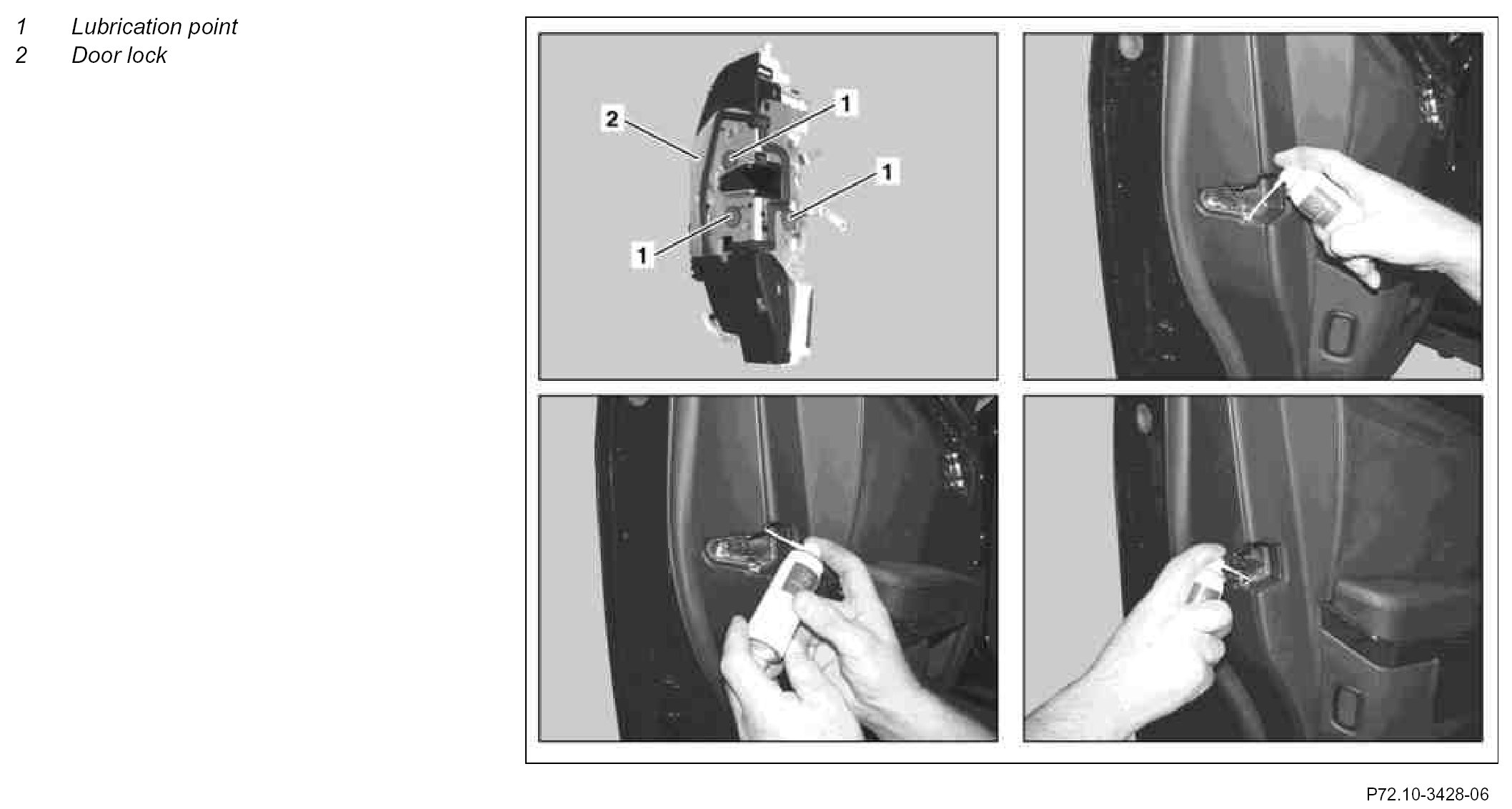

Component Identification:

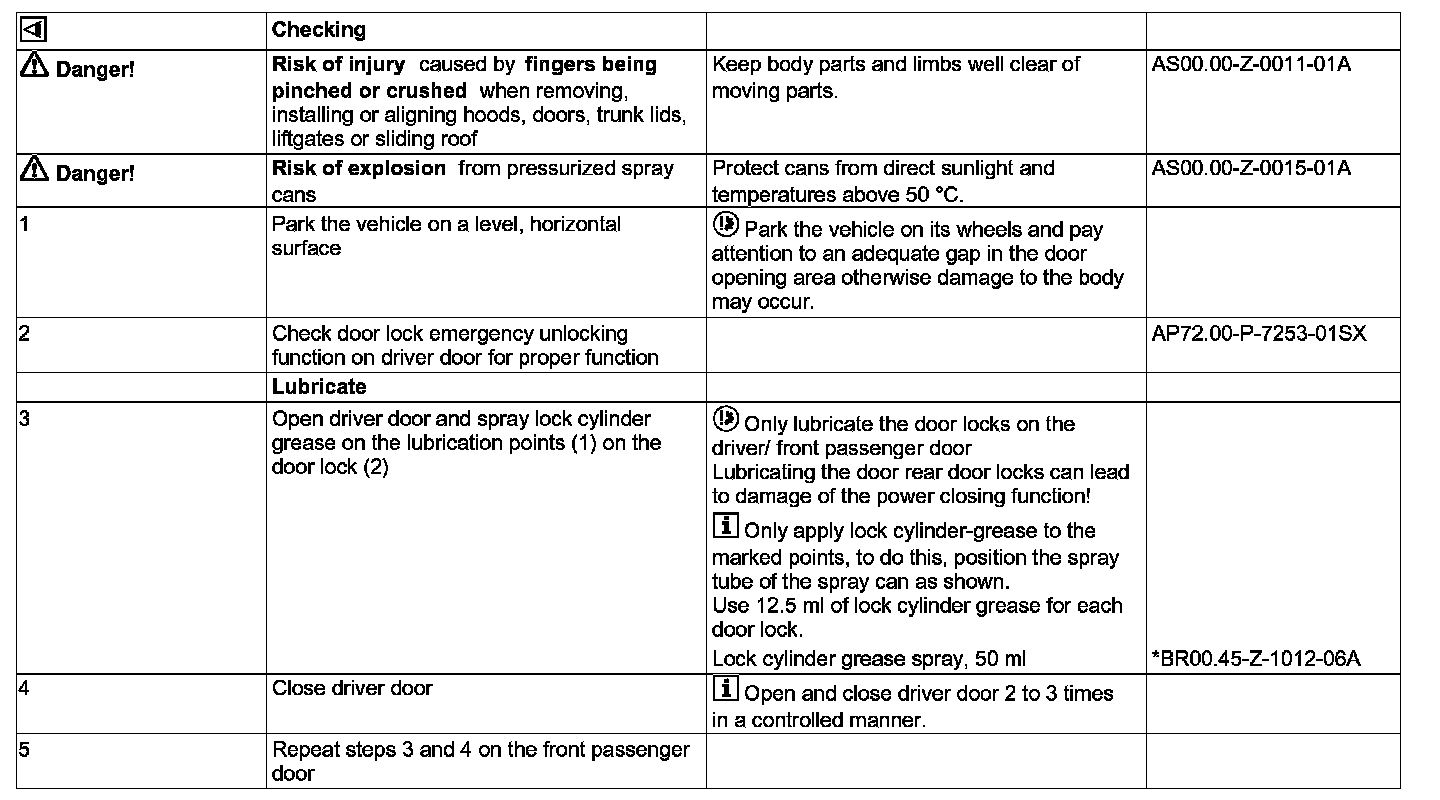

Steps 1 - 5:
Repair Materials:
