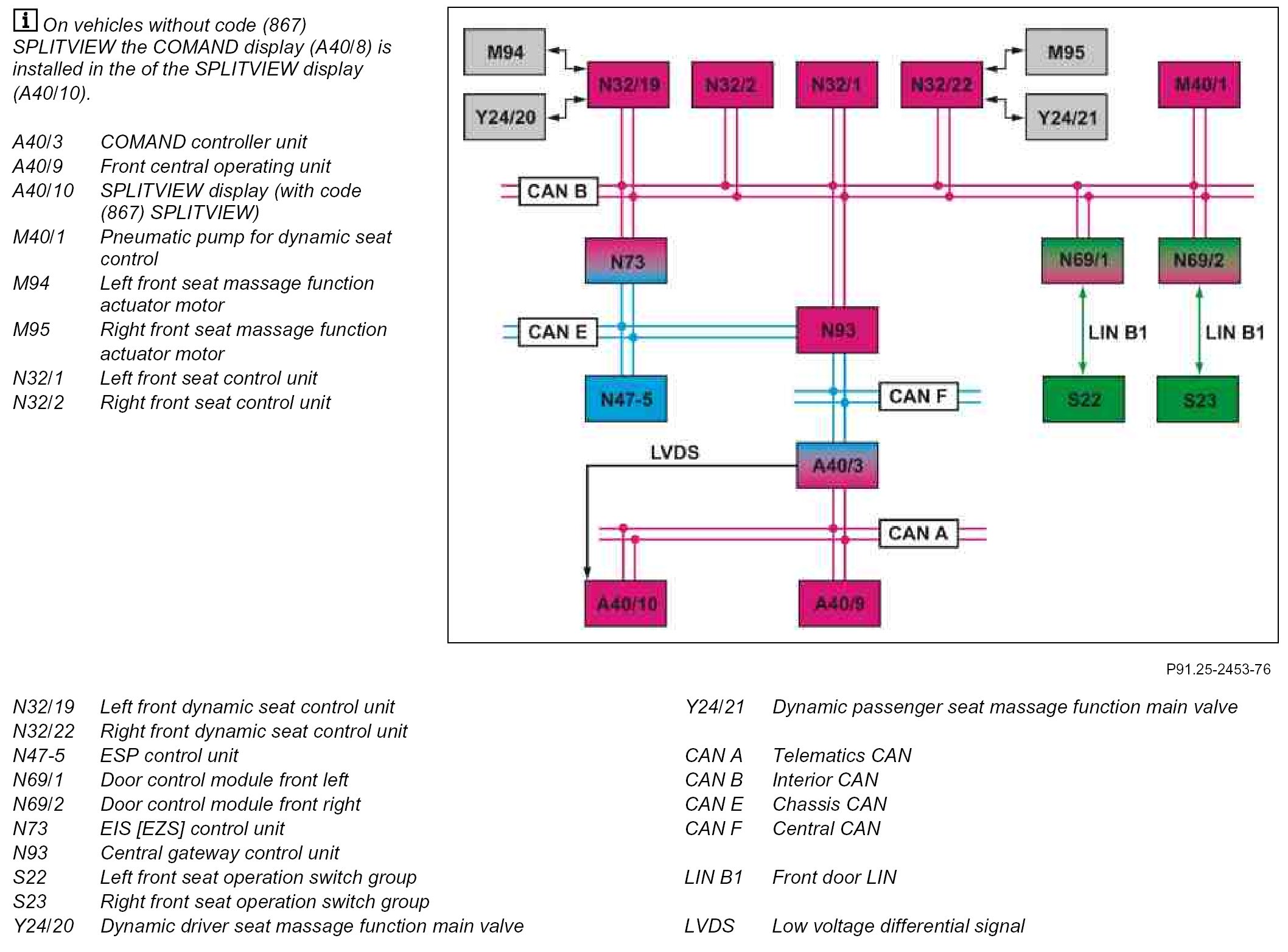

GF91.25-P-0002-03LEA Dynamic Seat, Block Diagram
GF91.25-P-0002-03LEA Dynamic Seat, Block Diagram
GF91.25-P-0002-03LEA Dynamic Seat, Block Diagram
- with CODE (432) Left and right dynamic multicontour seat as of Model Year 2010 /YoM 09 model refinement package
Component Identification:
