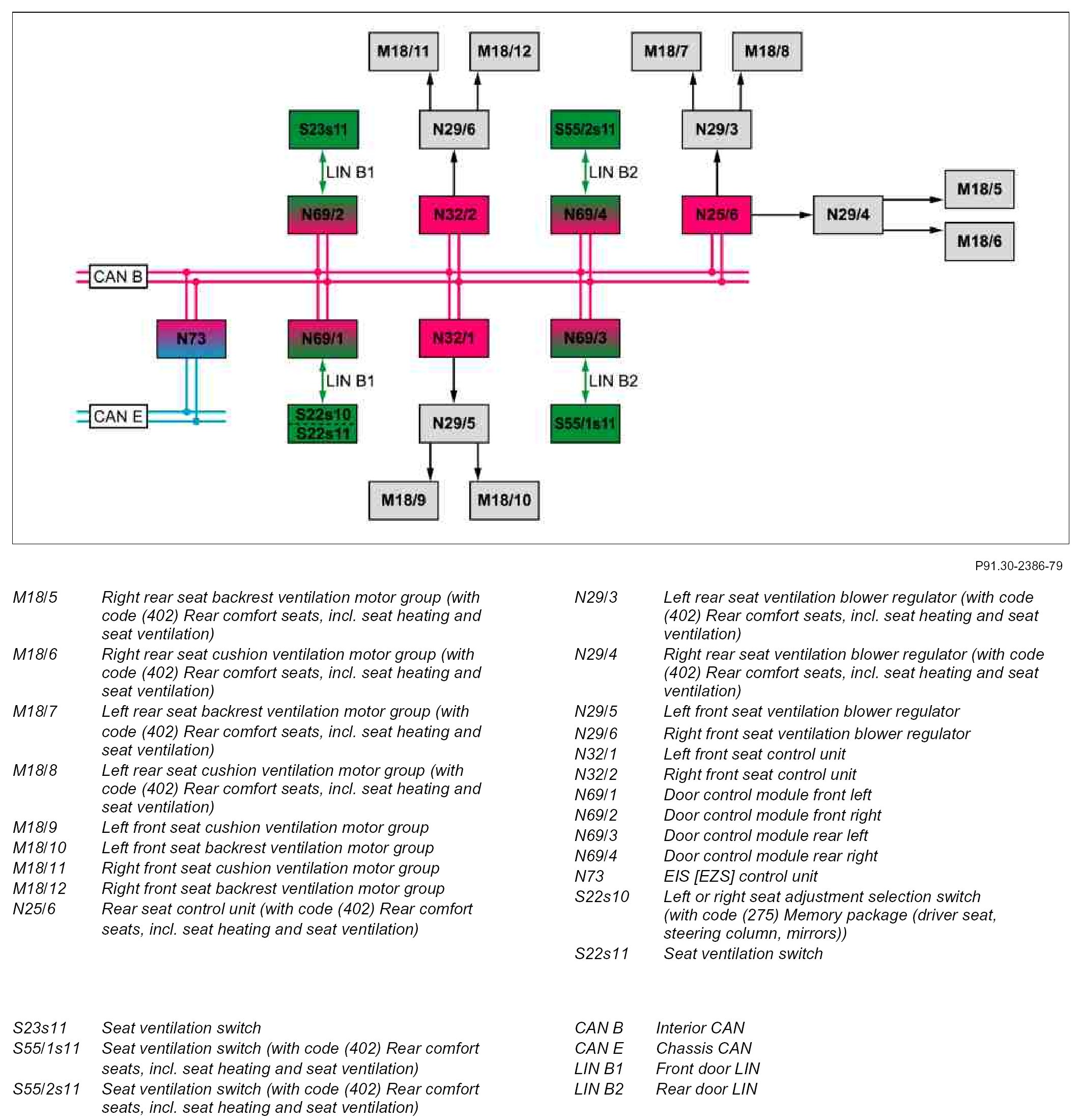

GF91.30-P-0002-03LE Electrical Seat Ventilation Block Diagram

GF91.30-P-0002-03LE Electrical Seat Ventilation Block Diagram
- with CODE (401) Front comfort seats, including seat heating and seat ventilation
- with CODE (402) Rear comfort seats, including seat heating and seat ventilation

Component Identification:
