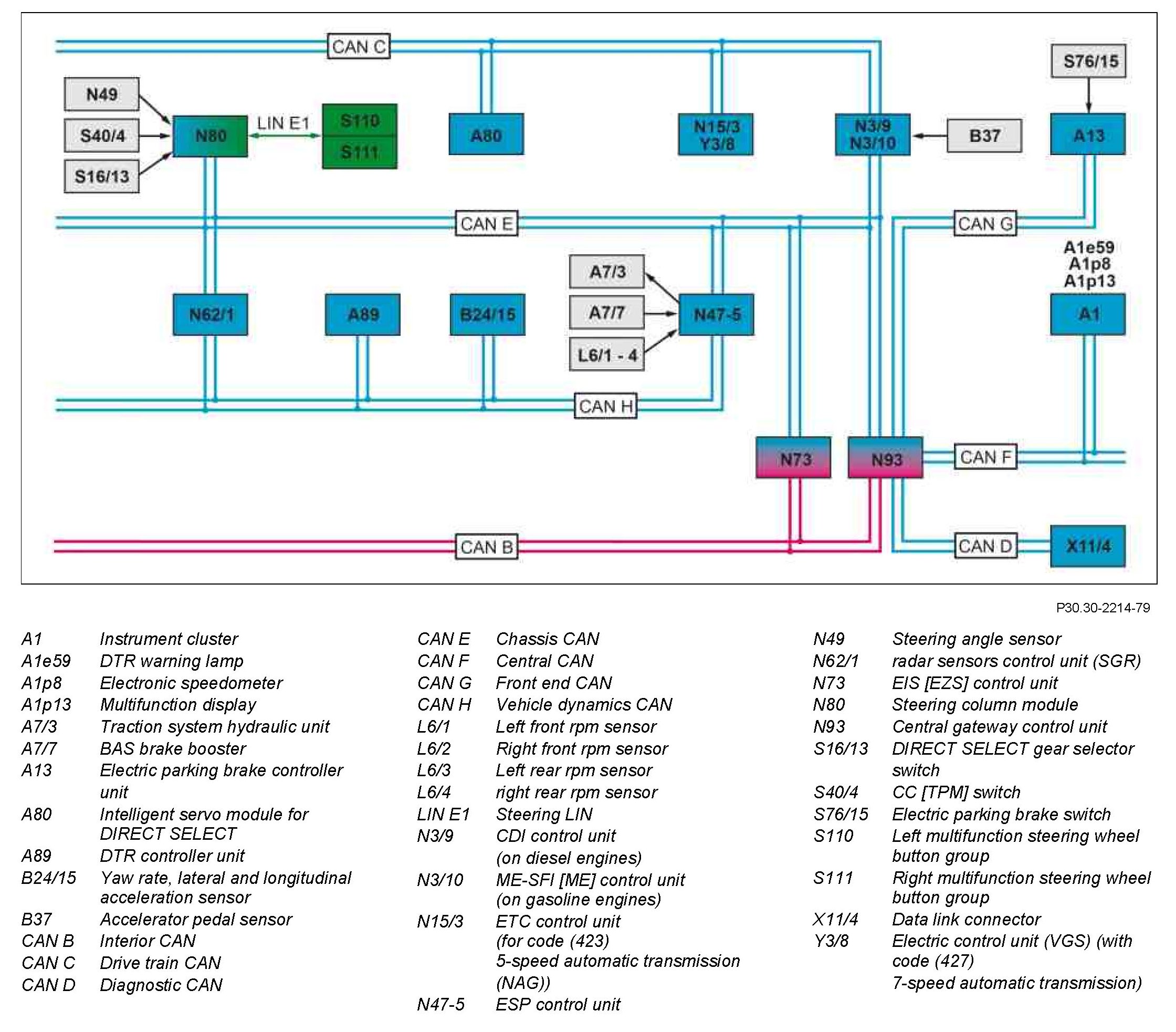

GF30.30-P-0007-01LE Plus Light Autonomous Intelligent Cruise Control, Block Diagram



GF30.30-P-0007-01LE Plus Light Autonomous Intelligent Cruise Control, Block Diagram
- with CODE (239) Autonomous intelligent cruise control Plus Light
- as of model year 2010


Component Identification:
