Air Flap Actuator Motor, Center, Right



Air Flap Actuator Motor, Center, Right

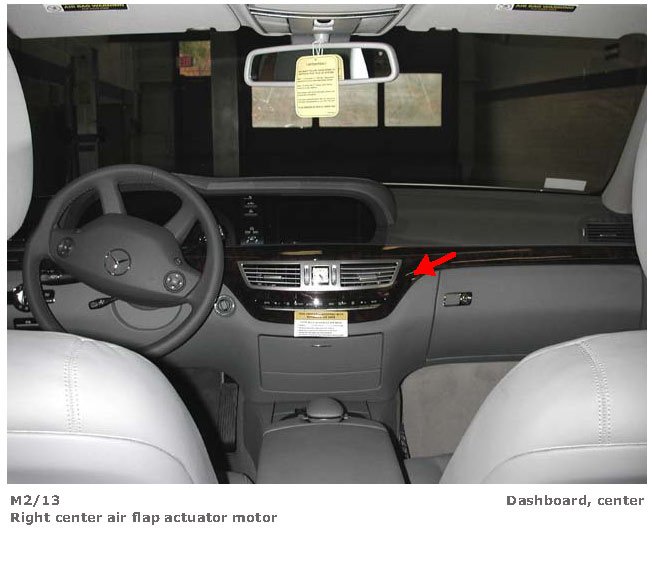

Air Flap Actuator Motor, Right, Center (View 1):

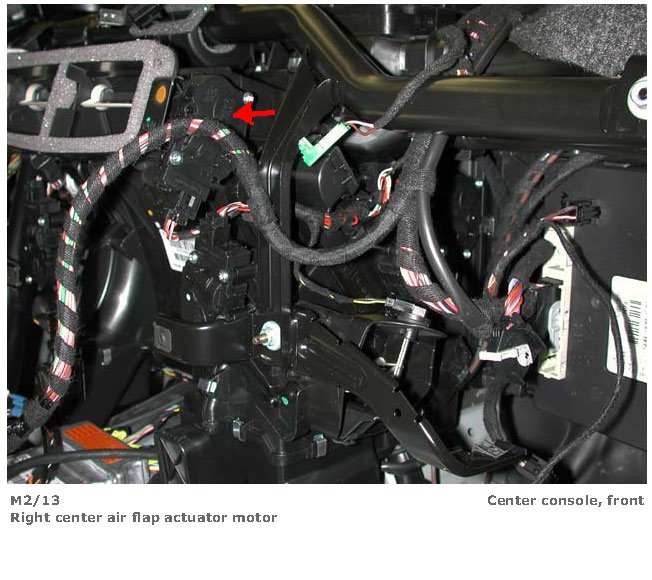

Air Flap Actuator Motor, Right, Center (View 2):

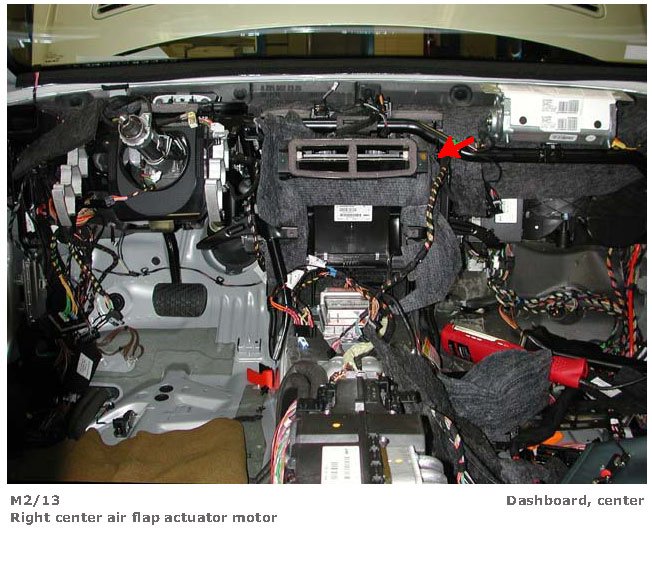

Air Flap Actuator Motor, Right, Center (View 3):
