System Diagram

Electrical Function Schematic For Power Electronics And DC/DC Converter Cooling Circuit PE20.00-P-2050SAA

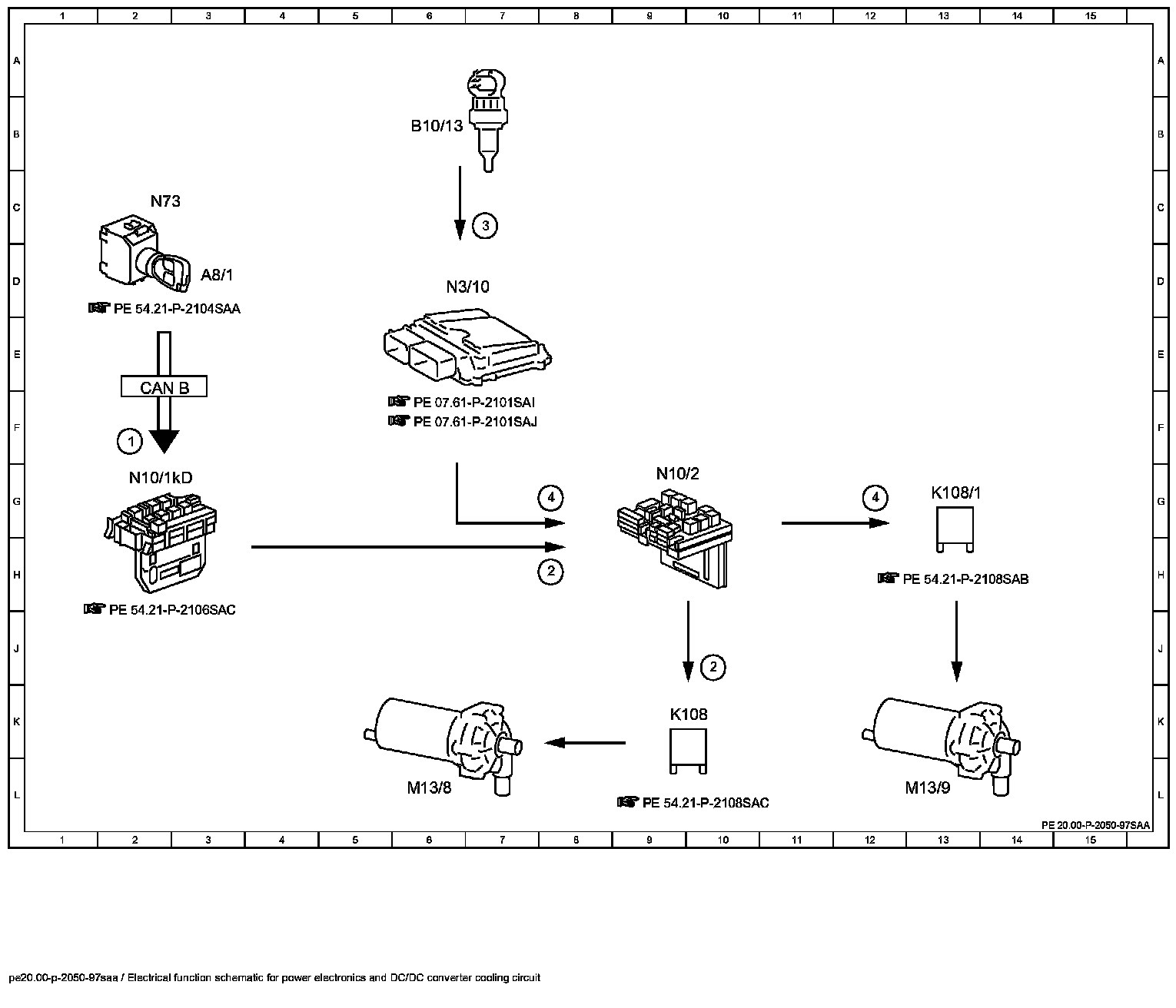

Function Diagram:

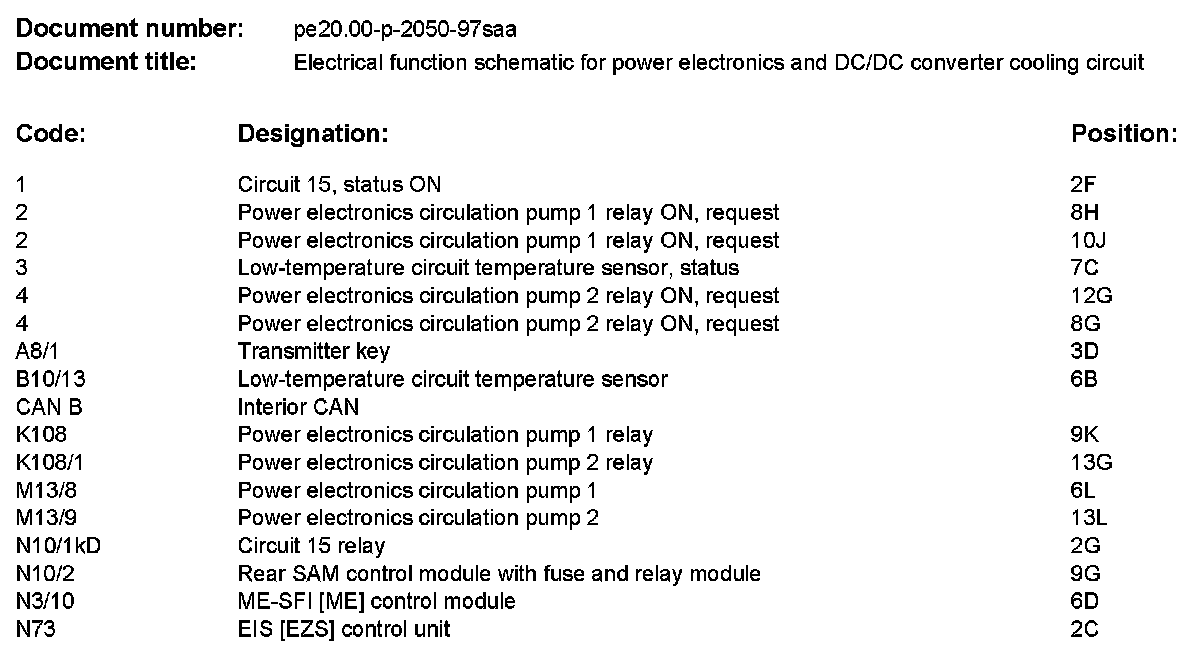

Component Description/Coordinates, 1 To N73:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
