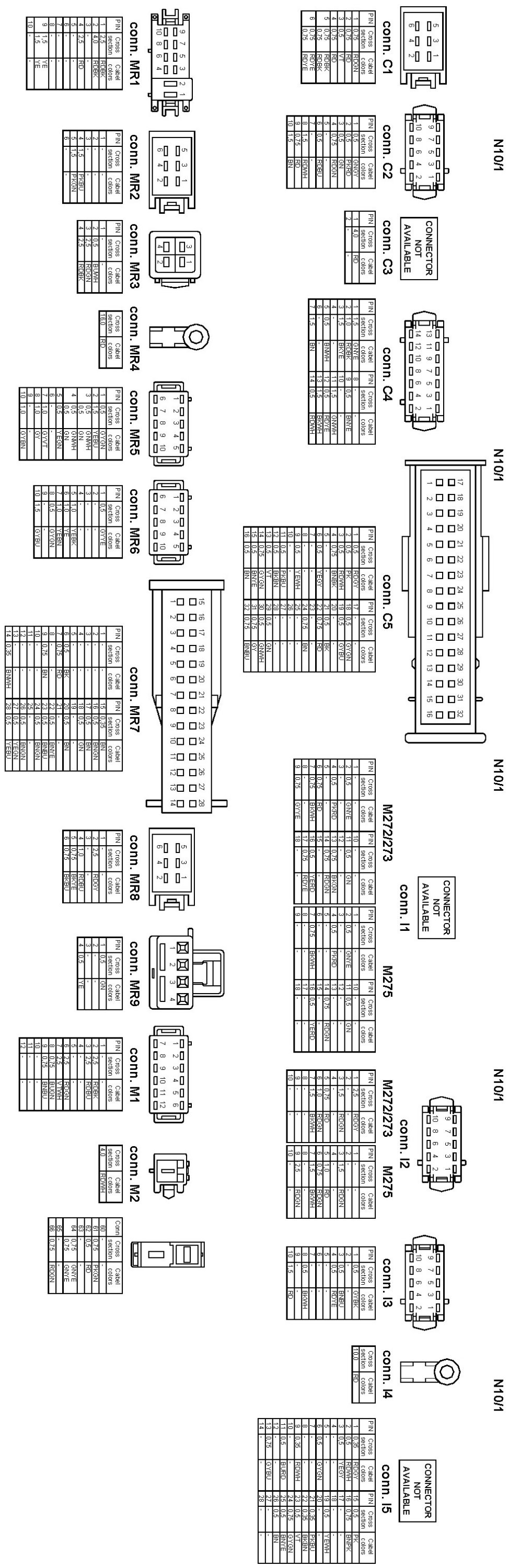

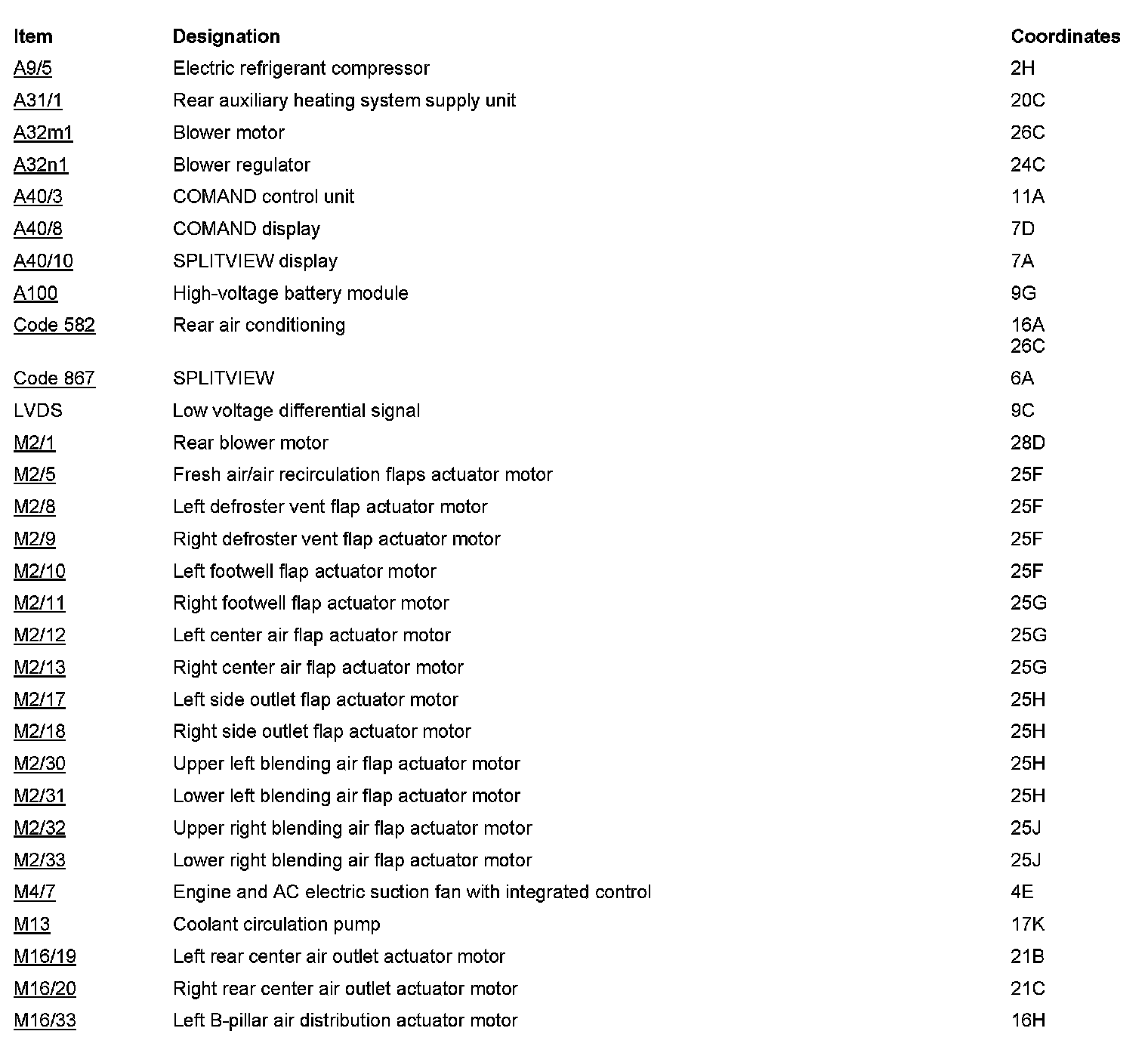

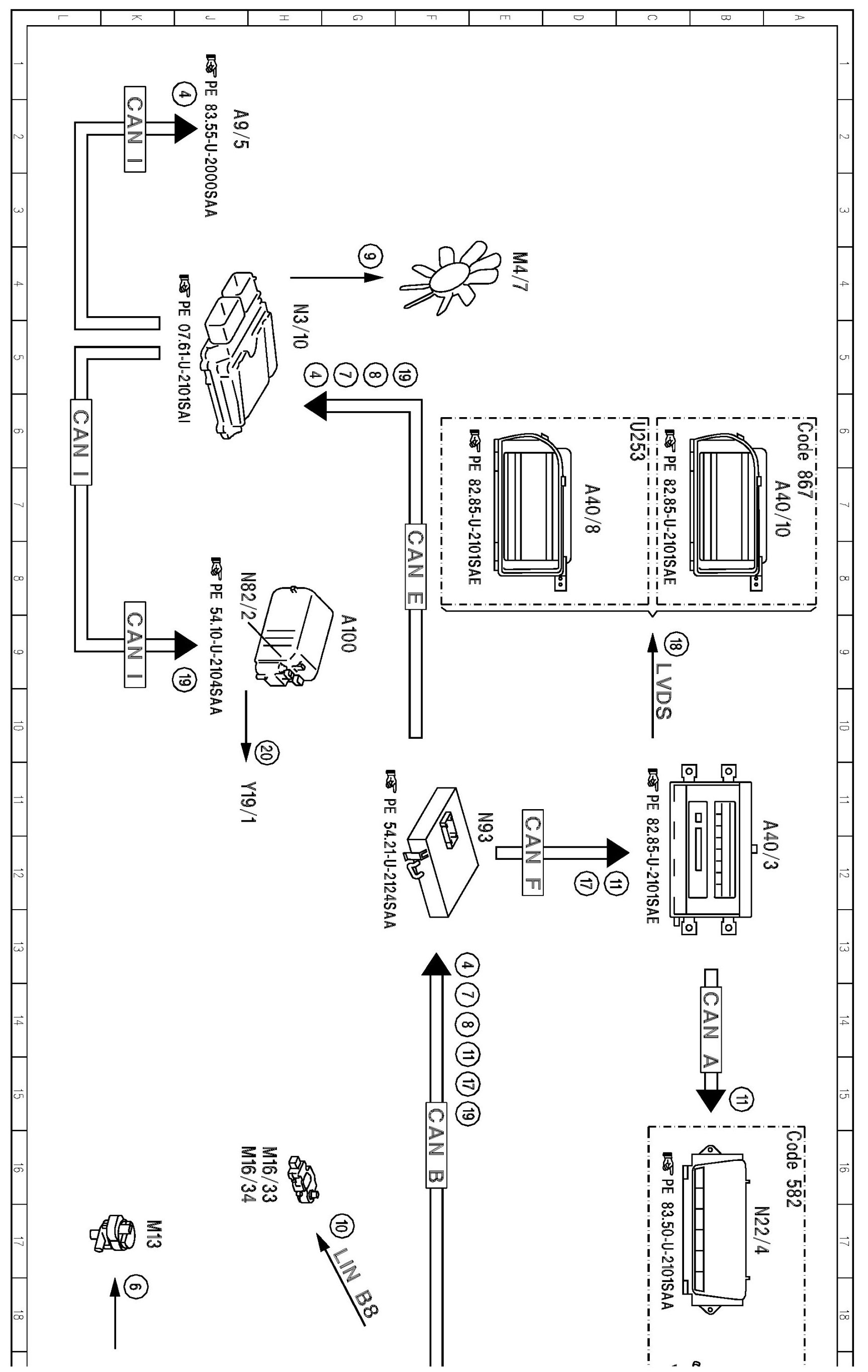

PE83.40-U-2053SAB Electrical Function Diagram For Automatic Air Conditioning Actuation

PE83.40-U-2053SAB Electrical Function Diagram For Automatic Air Conditioning Actuation

MODEL 221.095 /195 Hybrid











































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
