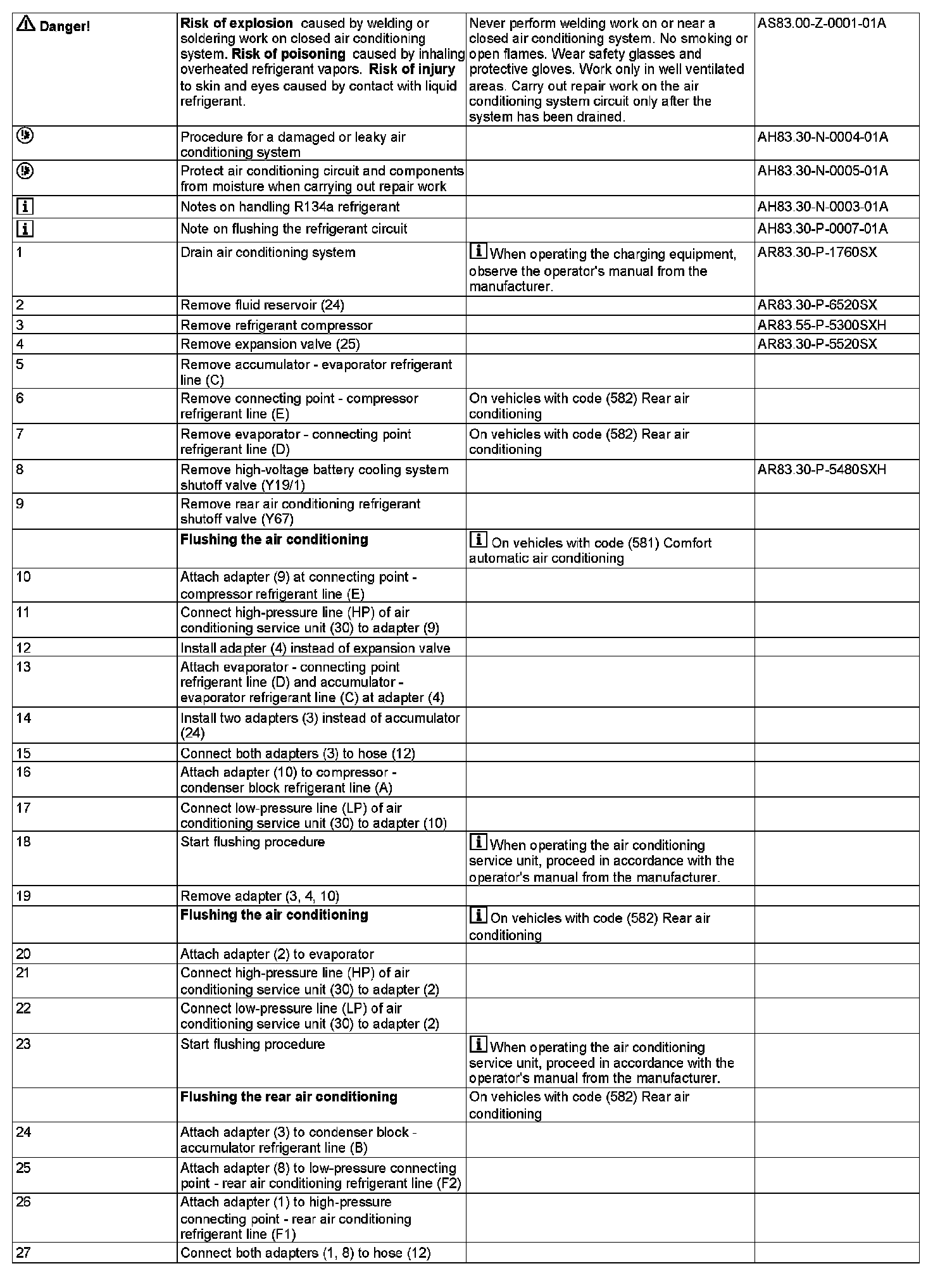

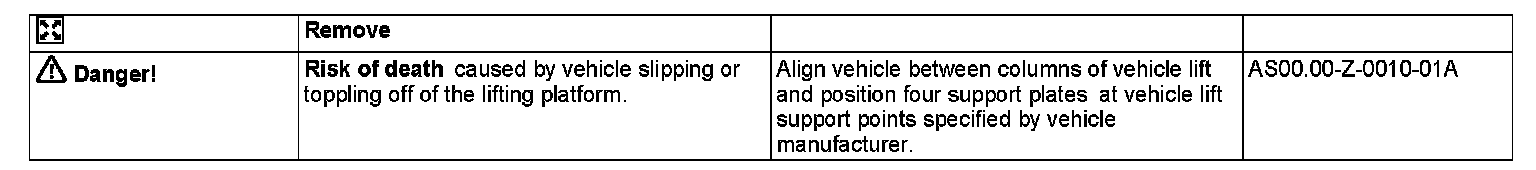

AR83.30-P-1785A Flush Air Conditioning

AR83.30-P-1785A Flush Air Conditioning
MODEL 221.095 /195

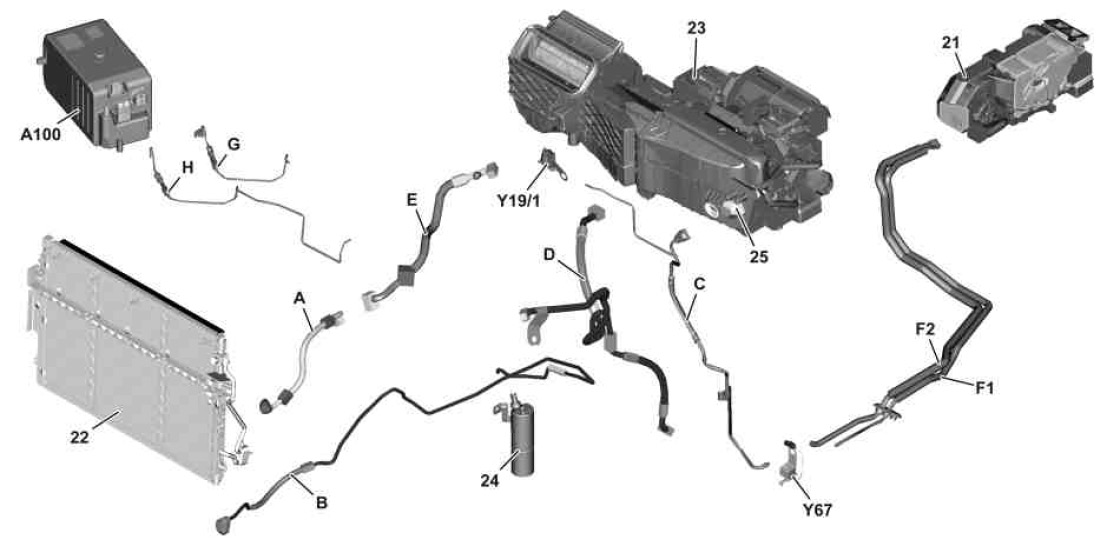

21 Rear air conditioning
22 Capacitor
23 AC housing
24 Fluid reservoir
25 Expansion valve
A100 High-voltage battery module
Y19/1 High-volt battery cooling system shutoff valve
Y67 Rear AC refrigerant shutoff valve
A Compressor - condenser block refrigerant line
B Condenser block - accumulator refrigerant line
C Accumulator - evaporator refrigerant line
D Evaporator - connecting point refrigerant line
E Connecting point - compressor refrigerant line
F1 High-pressure connecting point - rear air conditioning refrigerant line
F2 Low-pressure connecting point - rear air conditioning refrigerant line
G High-voltage battery cooling system shutoff valve - high-voltage battery module refrigerant line
H High-voltage battery module - evaporator refrigerant line

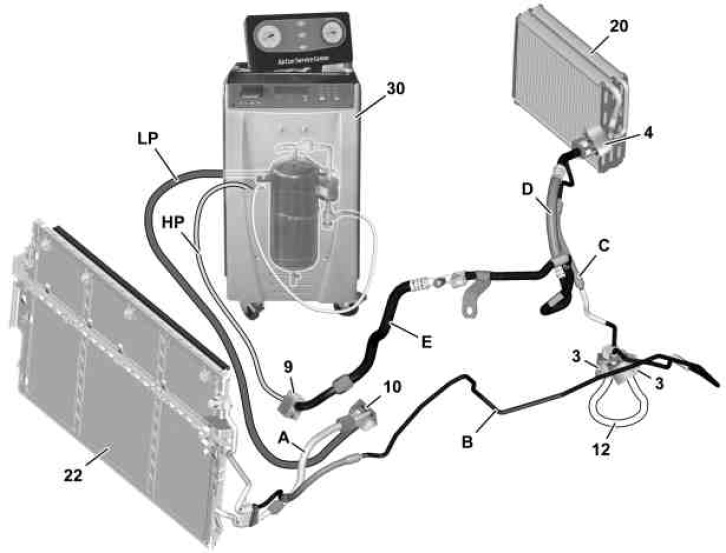

Flushing of the air conditioning with code (581) Comfort automatic air conditioning is shown
3 Adapter
4 Adapter
9 Adapter
10 Adapter
12 Hose
20 Evaporator
22 Capacitor
30 Air conditioning service unit
A Compressor - condenser block refrigerant line
B Condenser block - accumulator refrigerant line
C Accumulator - evaporator refrigerant line
D Evaporator - connecting point refrigerant line
E Connecting point - compressor refrigerant line
HP High pressure pipe
LP Low pressure pipe

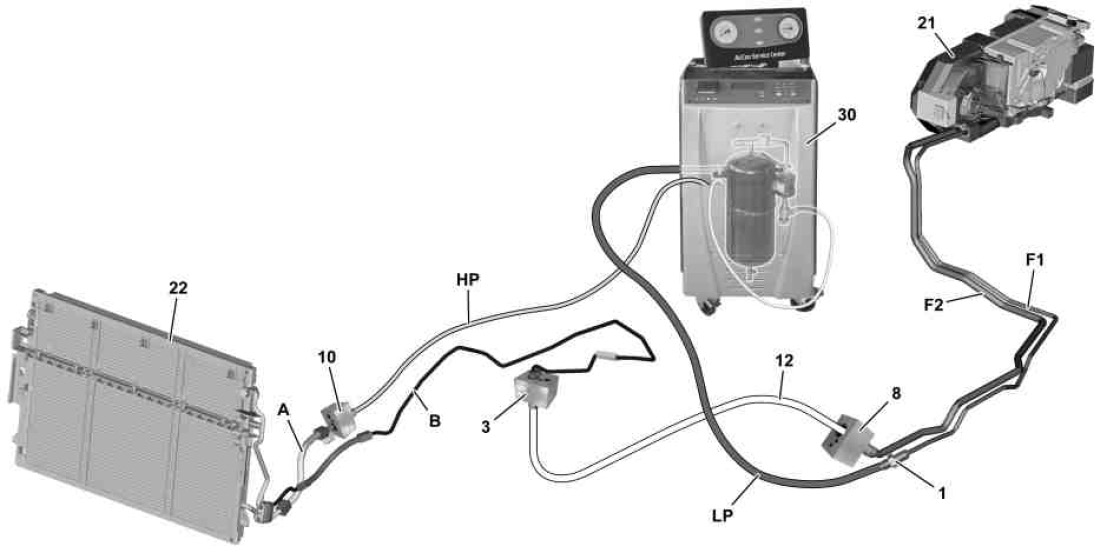

Flushing of the rear air conditioning with code (582) Rear air conditioning is shown
1 Adapter
3 Adapter
8 Adapter
10 Adapter
12 Hose
21 Rear air conditioning
22 Capacitor
30 Air conditioning service unit
A Compressor - condenser block refrigerant line
B Condenser block - accumulator refrigerant line
F1 High-pressure connecting point - rear air conditioning refrigerant line
F2 Low-pressure connecting point - rear air conditioning refrigerant line
HP High pressure pipe
LP Low pressure pipe

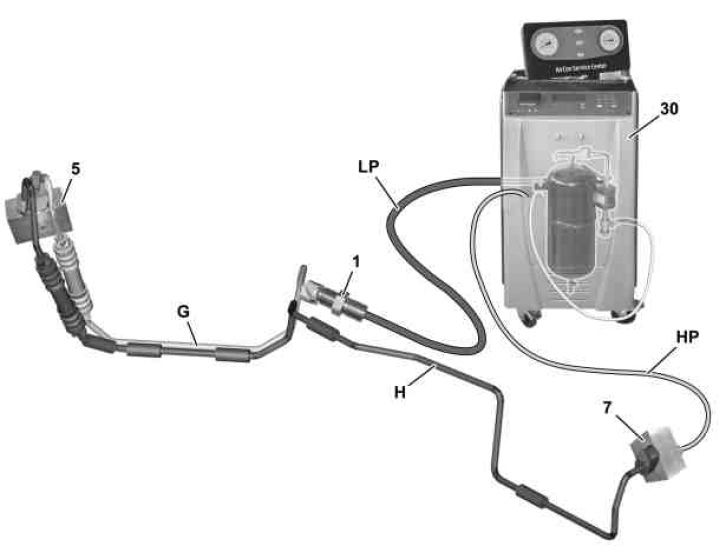

Flushing of the A/C lines to the high voltage battery module is shown
1 Adapter
5 Adapter
7 Adapter
30 Air conditioning service unit
G High-voltage battery cooling system shutoff valve - high-voltage battery module refrigerant line
H High-voltage battery module - evaporator refrigerant line
HP High pressure pipe
LP Low pressure pipe





Flushing of the A/C lines to the high voltage battery module is shown
1 Adapter
7 Adapter
30 Air conditioning service unit
A100 High-voltage battery module
G High-voltage battery cooling system shutoff valve - high-voltage battery module refrigerant line
H High-voltage battery module - evaporator refrigerant line
HP High pressure pipe
LP Low pressure pipe





Flushing of the evaporator of the air conditioning with code (582) Rear air conditioning is shown
2 Adapter
20 Evaporator
30 Air conditioning service unit
HP High pressure pipe
LP Low pressure pipe














221 589 00 91 00
Adapter kit
