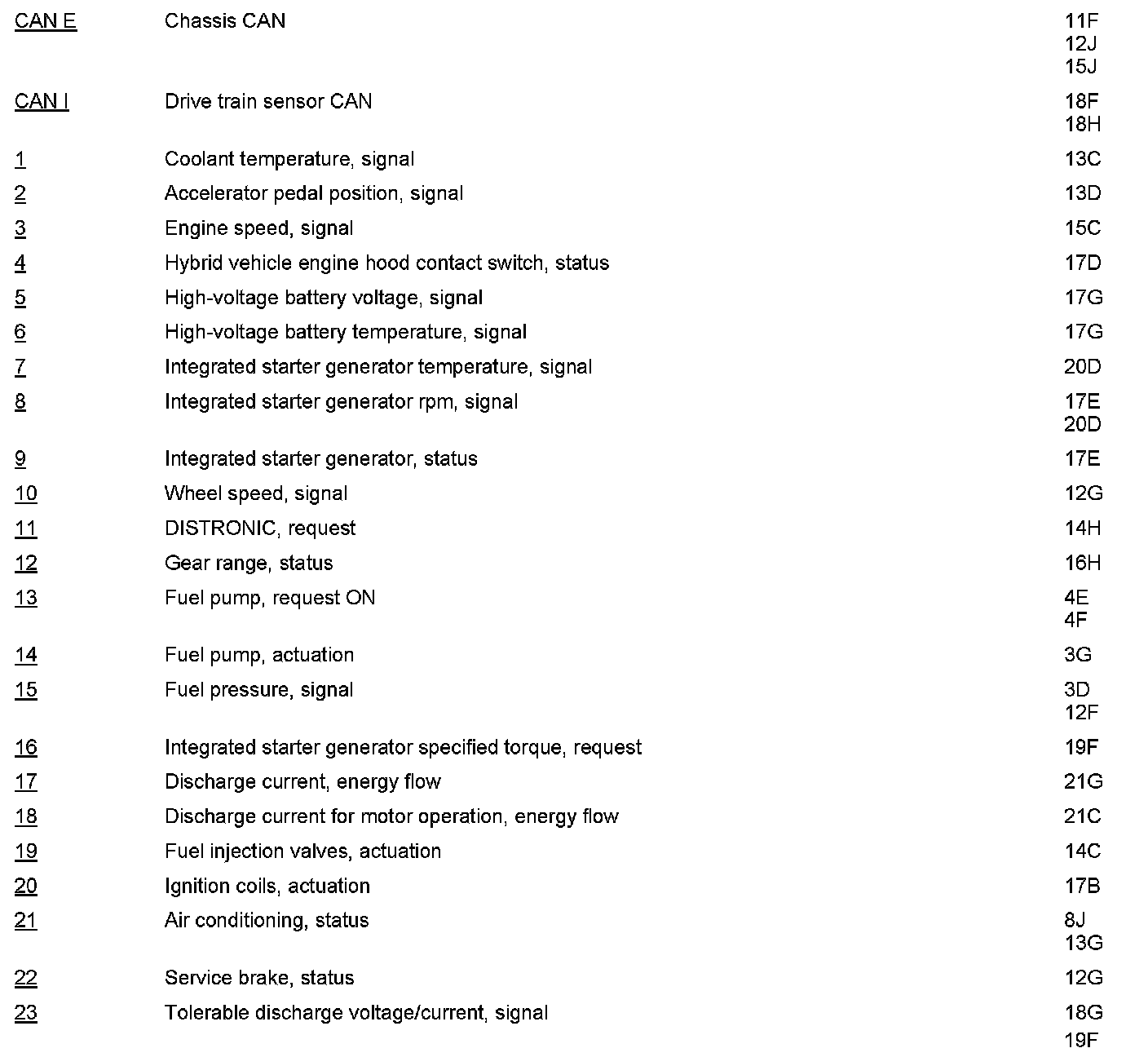

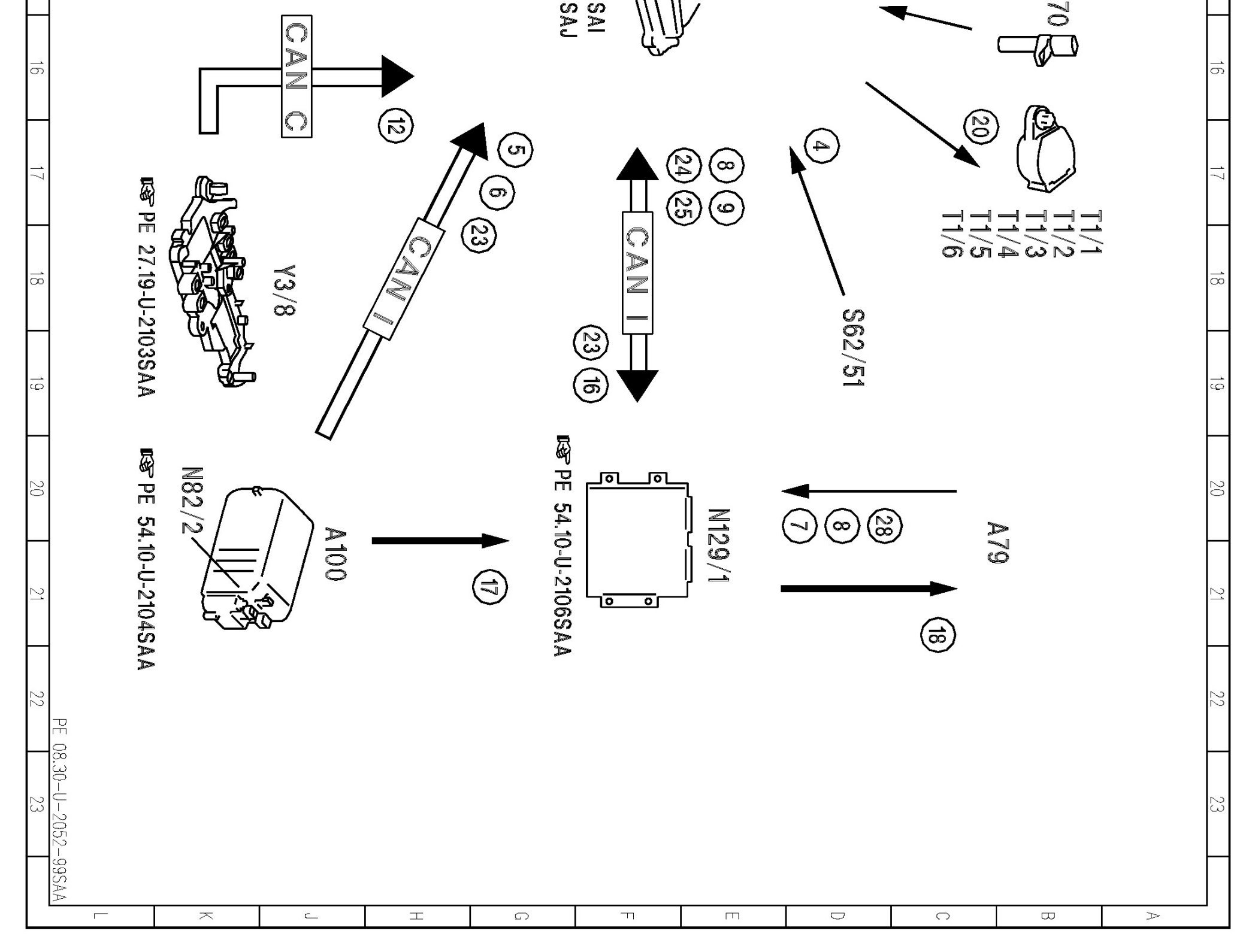

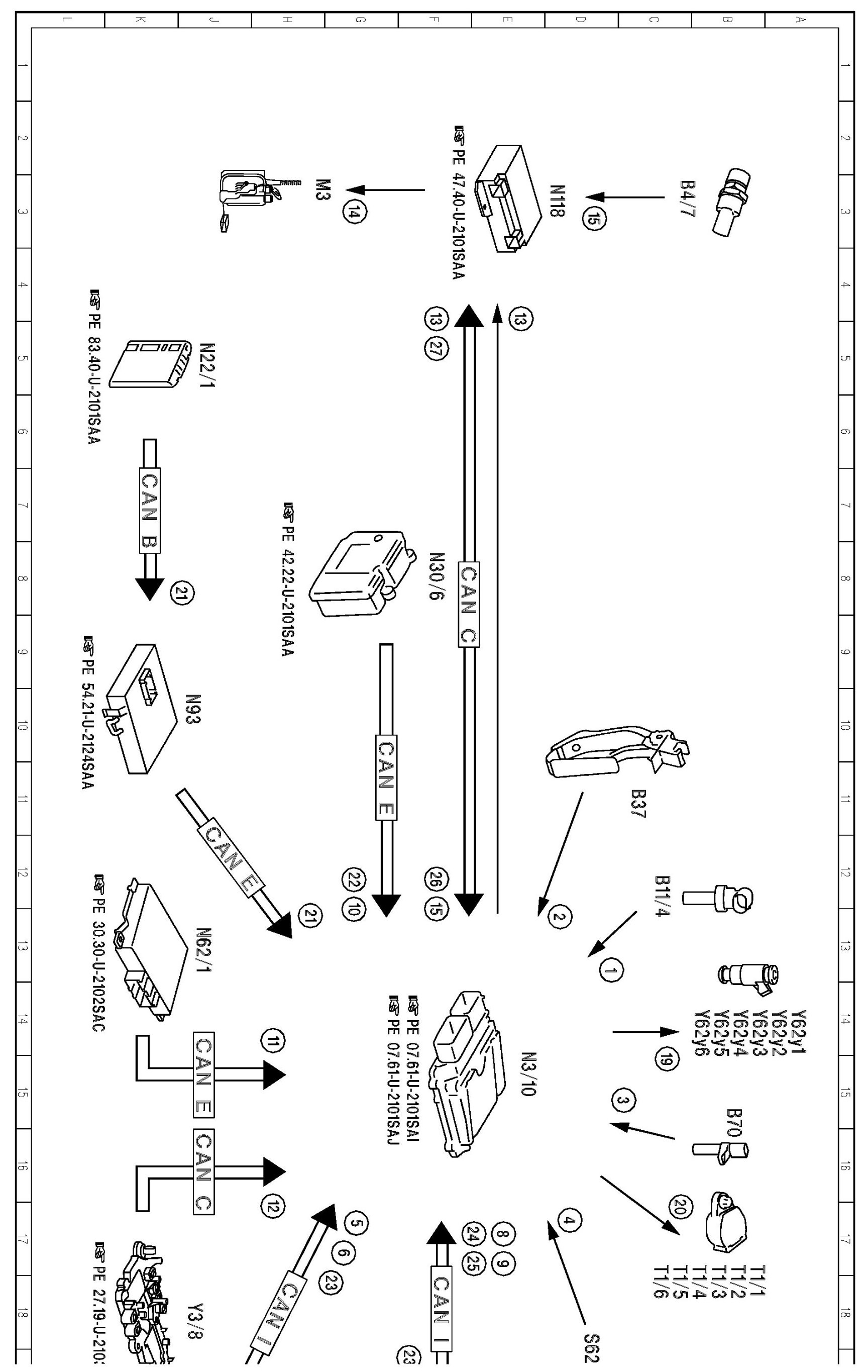

PE08.30-U-2052SAA Electrical Function Diagram For Automatic Engine Start

PE08.30-U-2052SAA Electrical Function Diagram For Automatic Engine Start

ENGINE 272.974 in MODEL 221.095 /195
- Hybrid

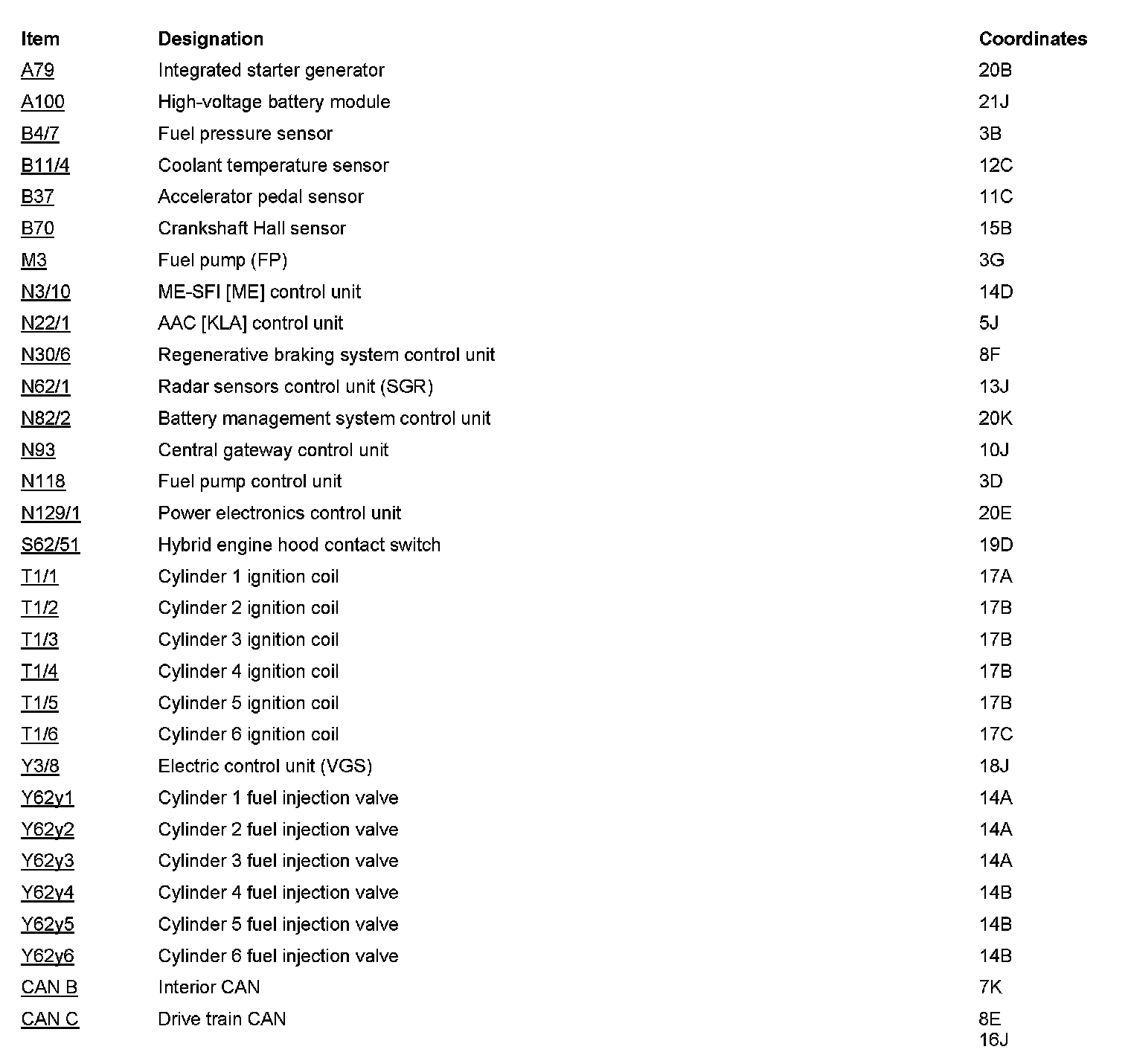

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
