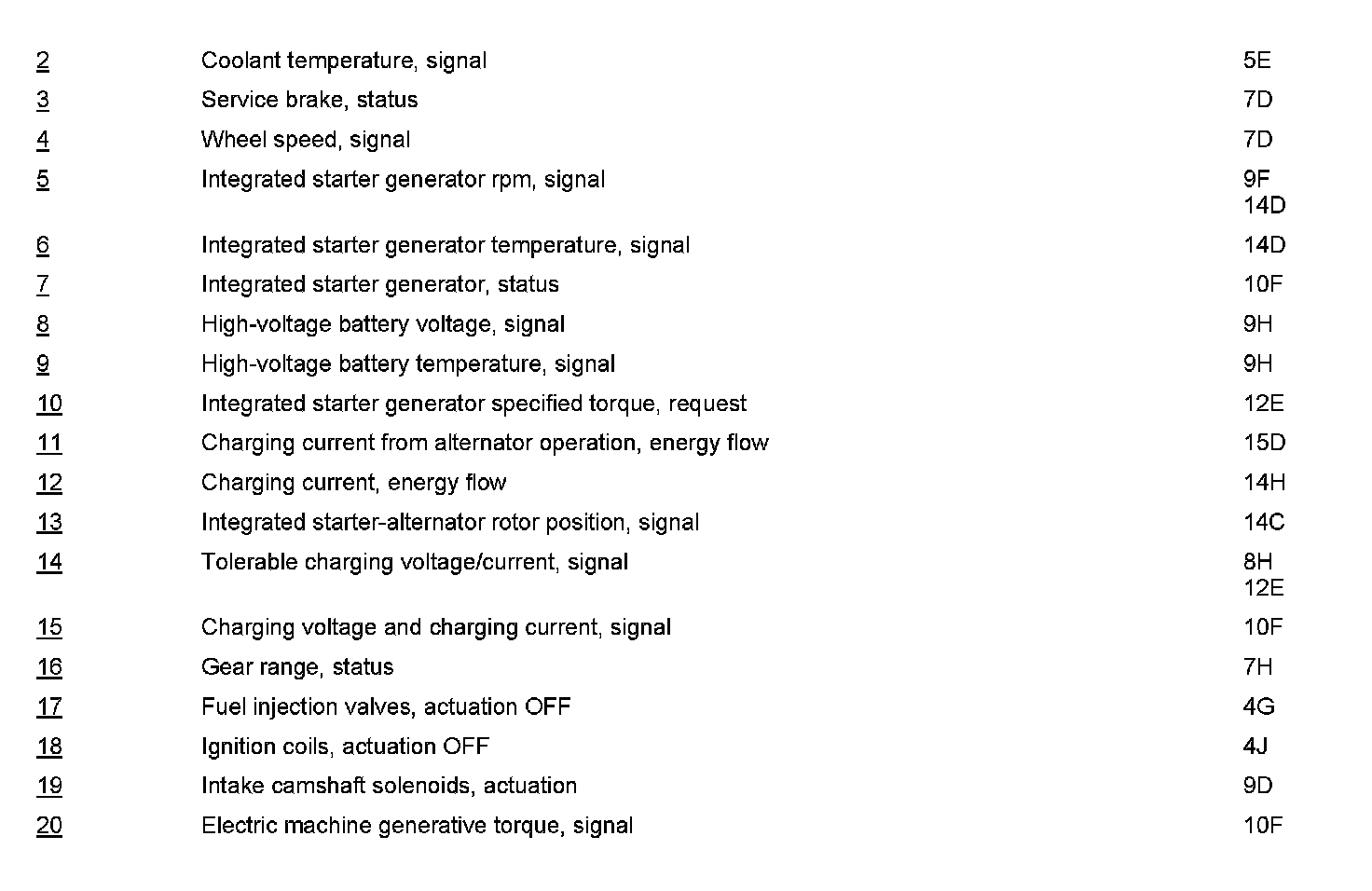

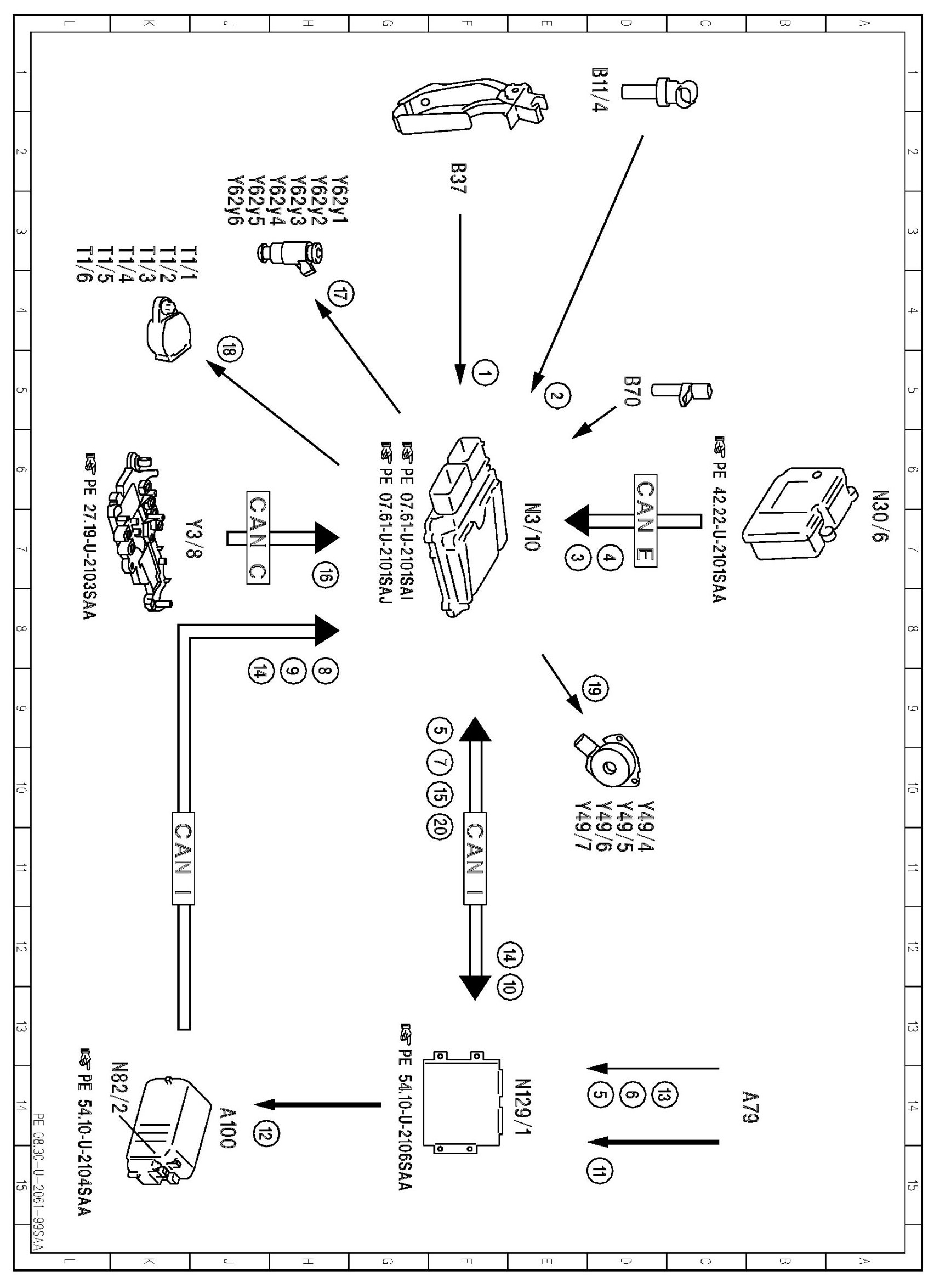

PE08.30-U-2061SAA Electrical Function Diagram For Deceleration Mode

PE08.30-U-2061SAA Electrical Function Diagram For Deceleration Mode

ENGINE 272.974 in MODEL 221.095 /195
- Hybrid



























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
