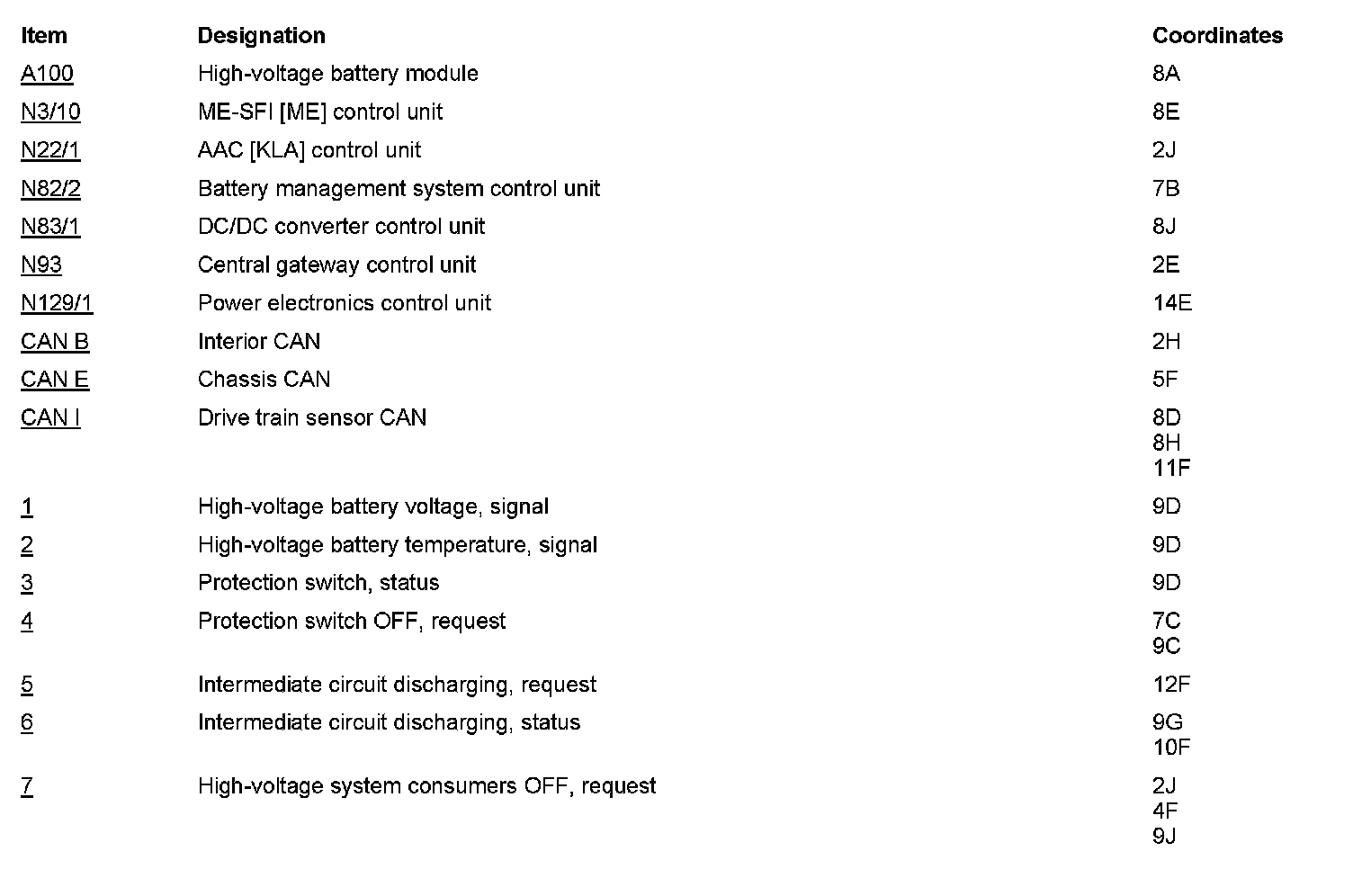

PE08.30-U-2064SAA Electrical Function Diagram For Deactivation of Hybrid Drive System

PE08.30-U-2064SAA Electrical Function Diagram For Deactivation of Hybrid Drive System

ENGINE 272.974 in MODEL 221.095 /195
- Hybrid























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
