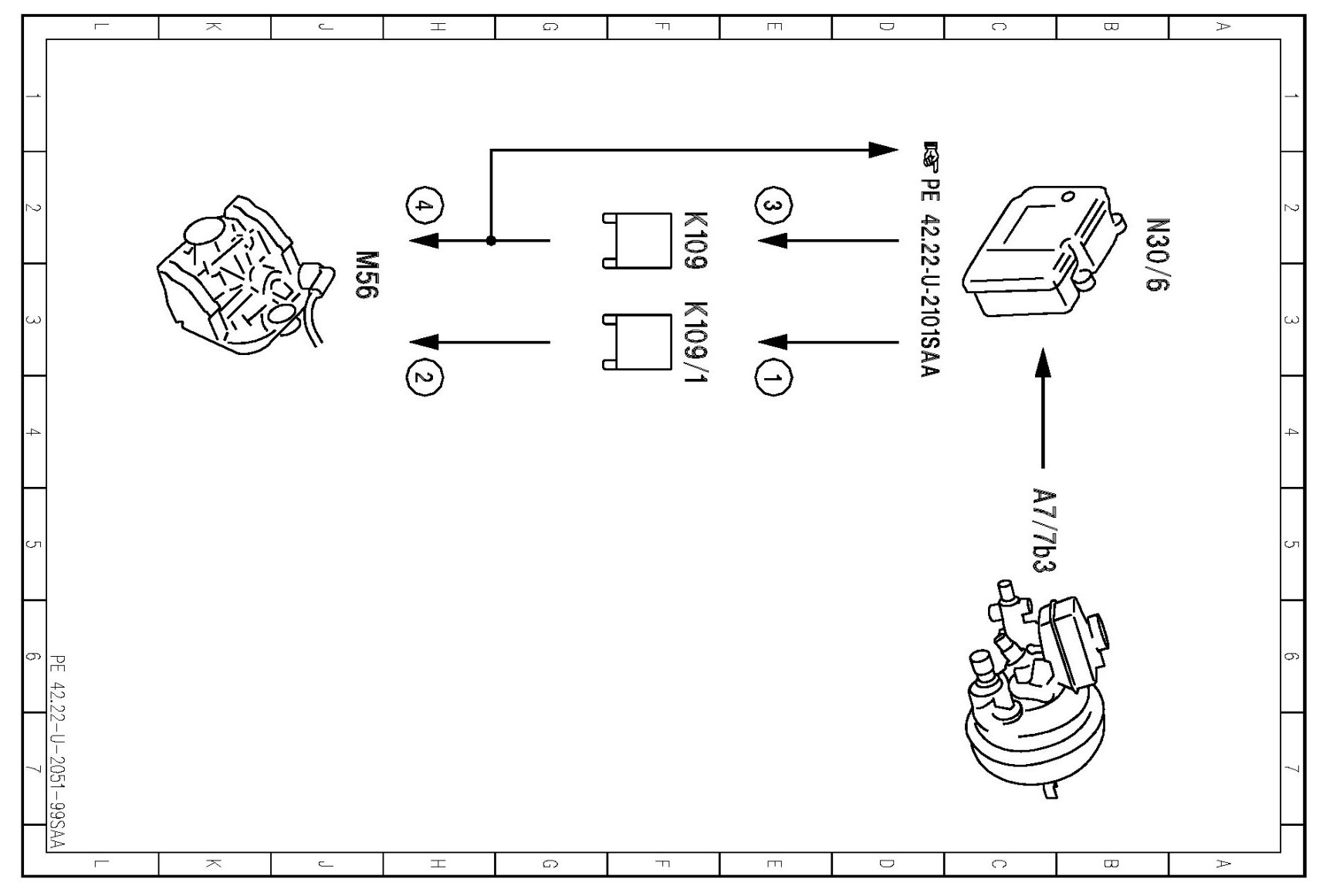

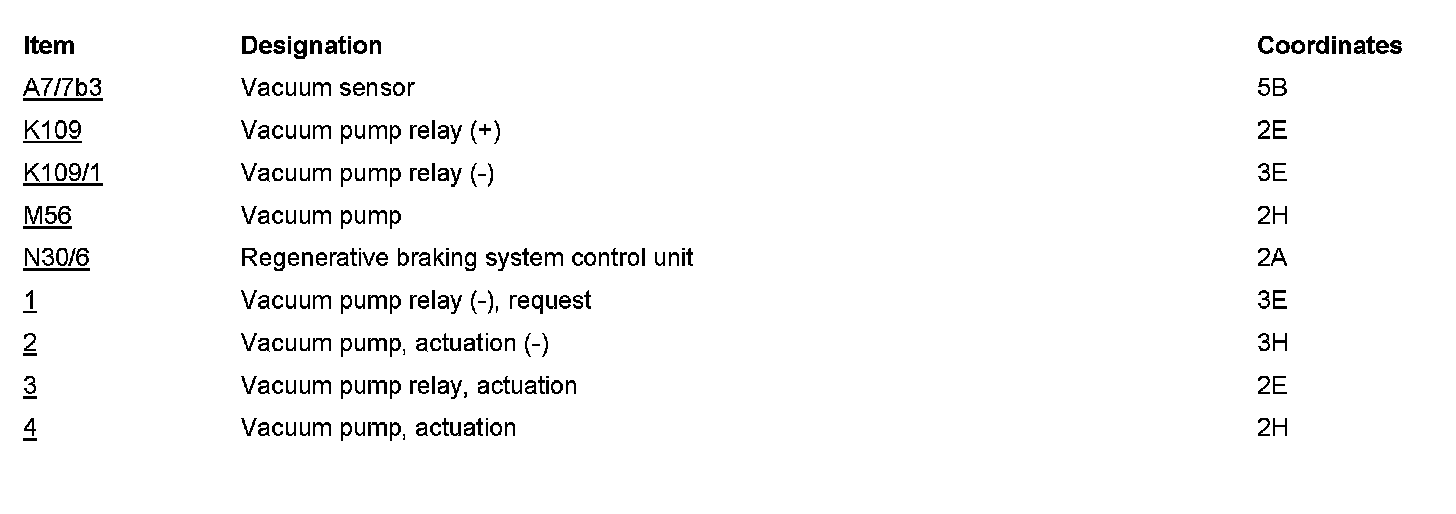

PE42.22-U-2051SAA Electrical Function Diagram For Vacuum Supply



PE42.22-U-2051SAA Electrical Function Diagram For Vacuum Supply

MODEL 221.095 /195 with ENGINE 272.974
- Hybrid











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
