GF42.22-P-0001-02LEH Regenerative Braking System Location of Components



GF42.22-P-0001-02LEH Regenerative braking system location of components

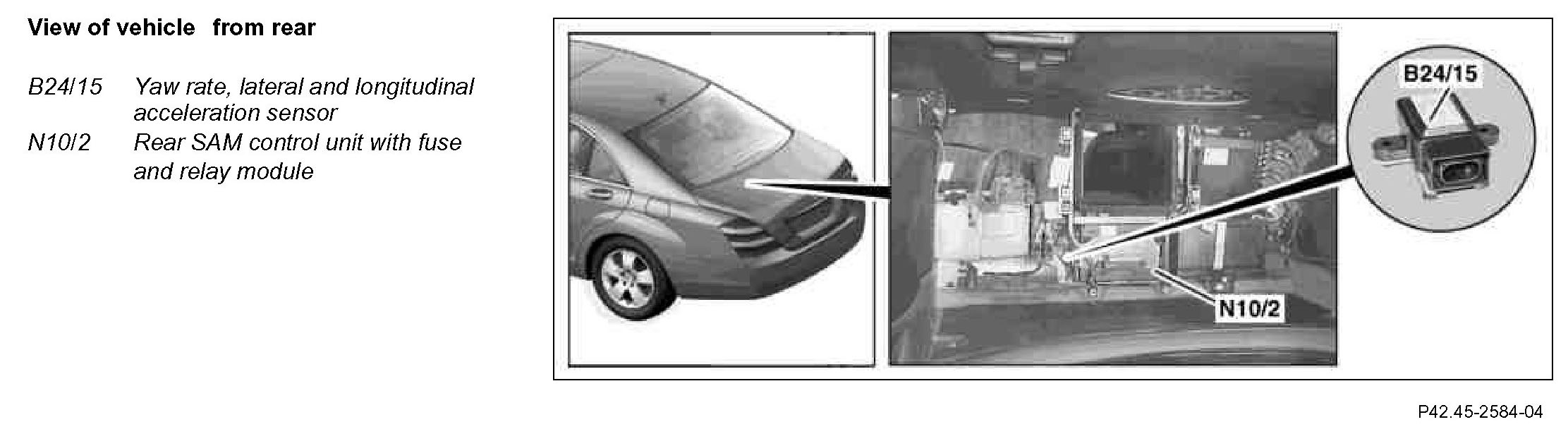

Component Identification:

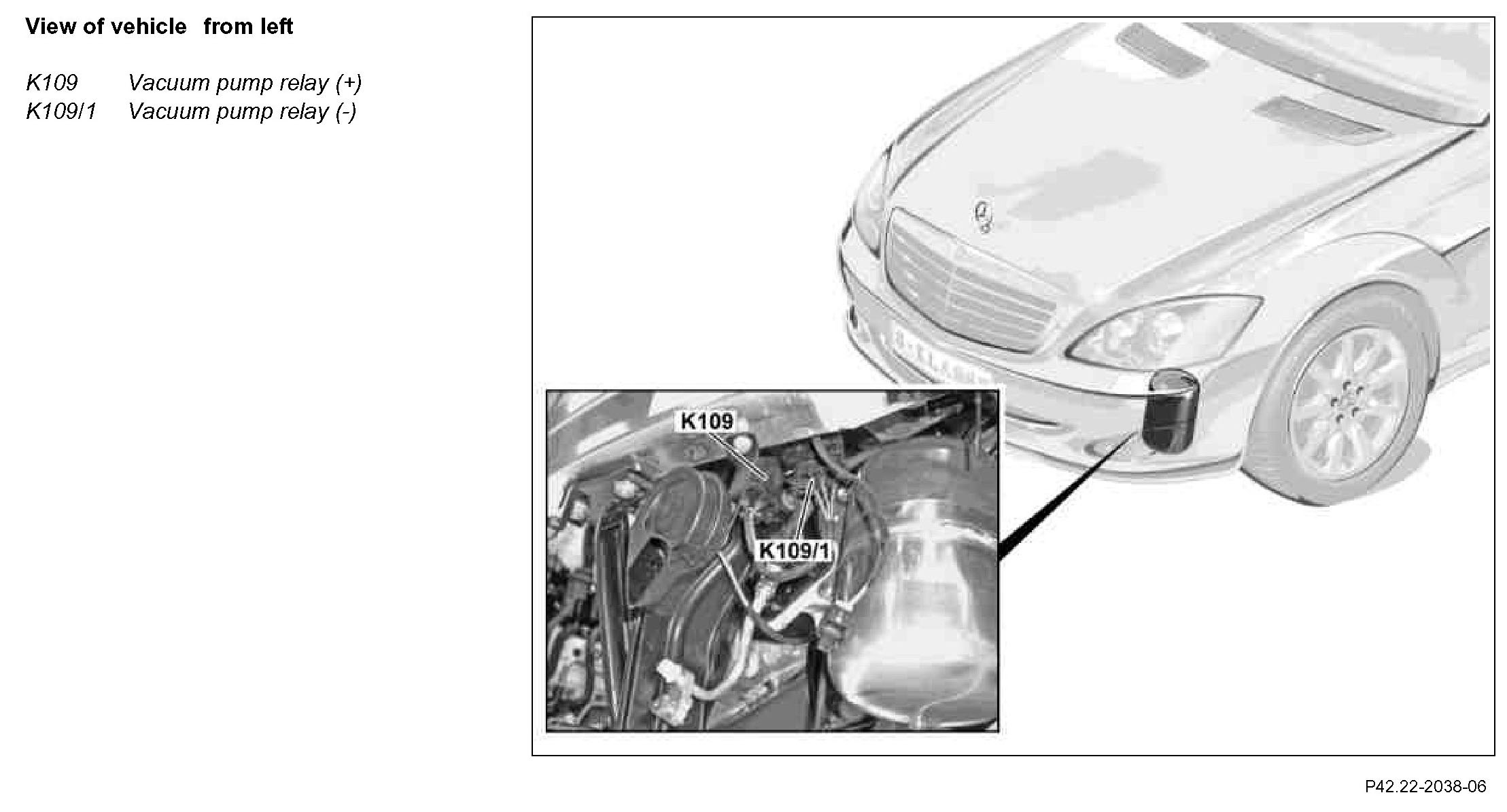

Component Identification:

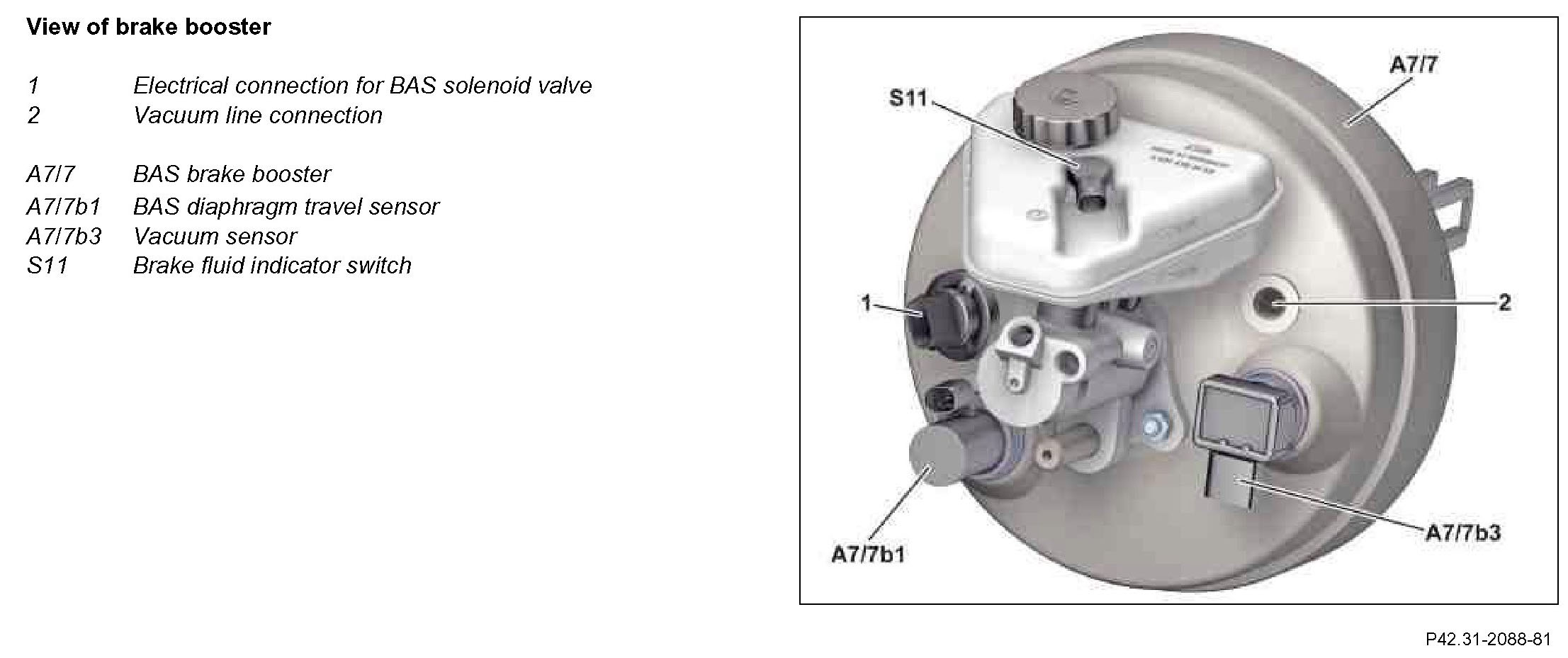

Component Identification:




Component Identification:




Component Identification:




Component Identification:
