PE54.30-U-2055SAB Electrical Function Diagram For Instrument Cluster Operation Status Display

PE54.30-U-2055SAB Electrical Function Diagram For Instrument Cluster Operation Status Display

MODEL 221.095 /195 Hybrid

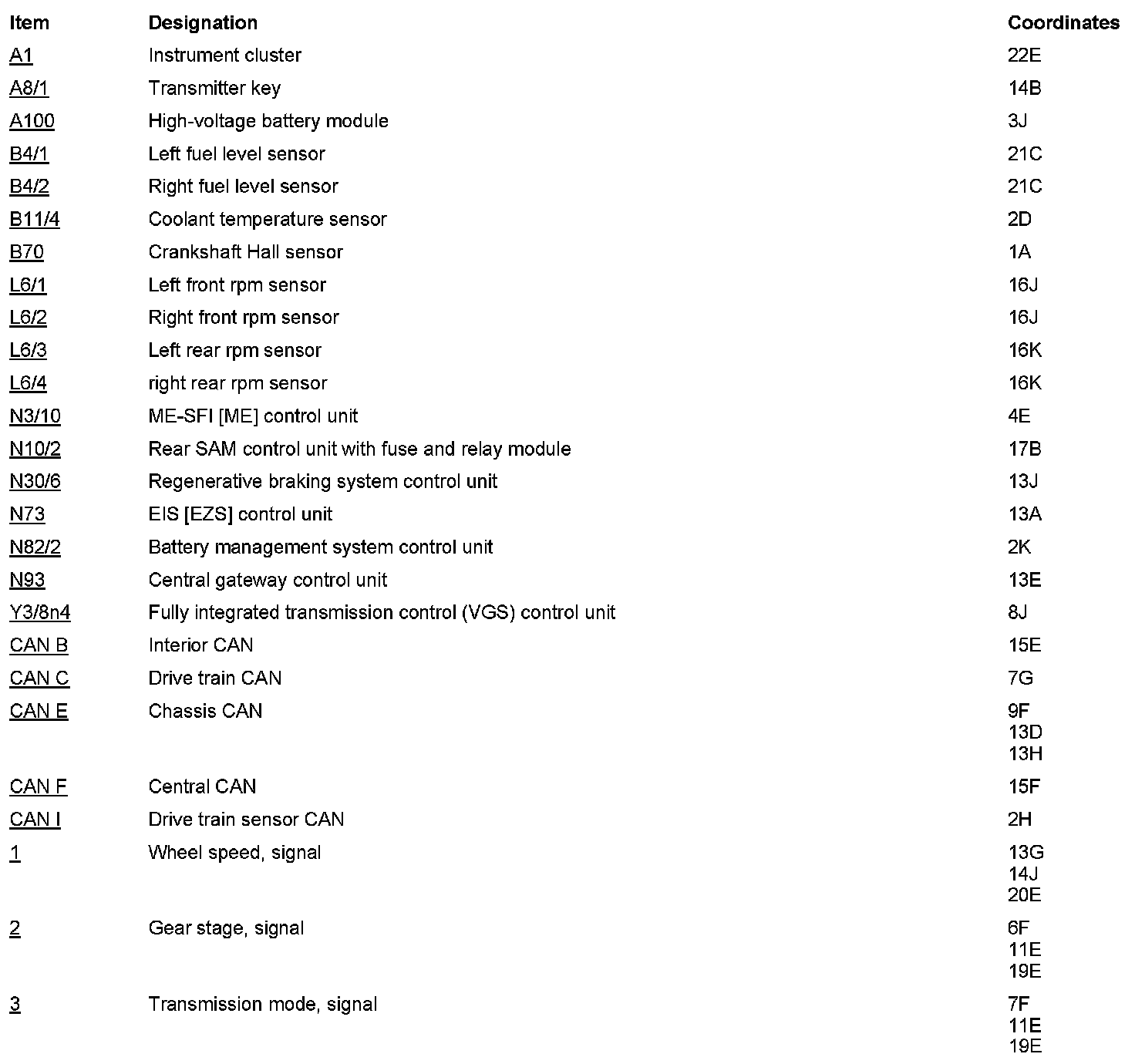

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
