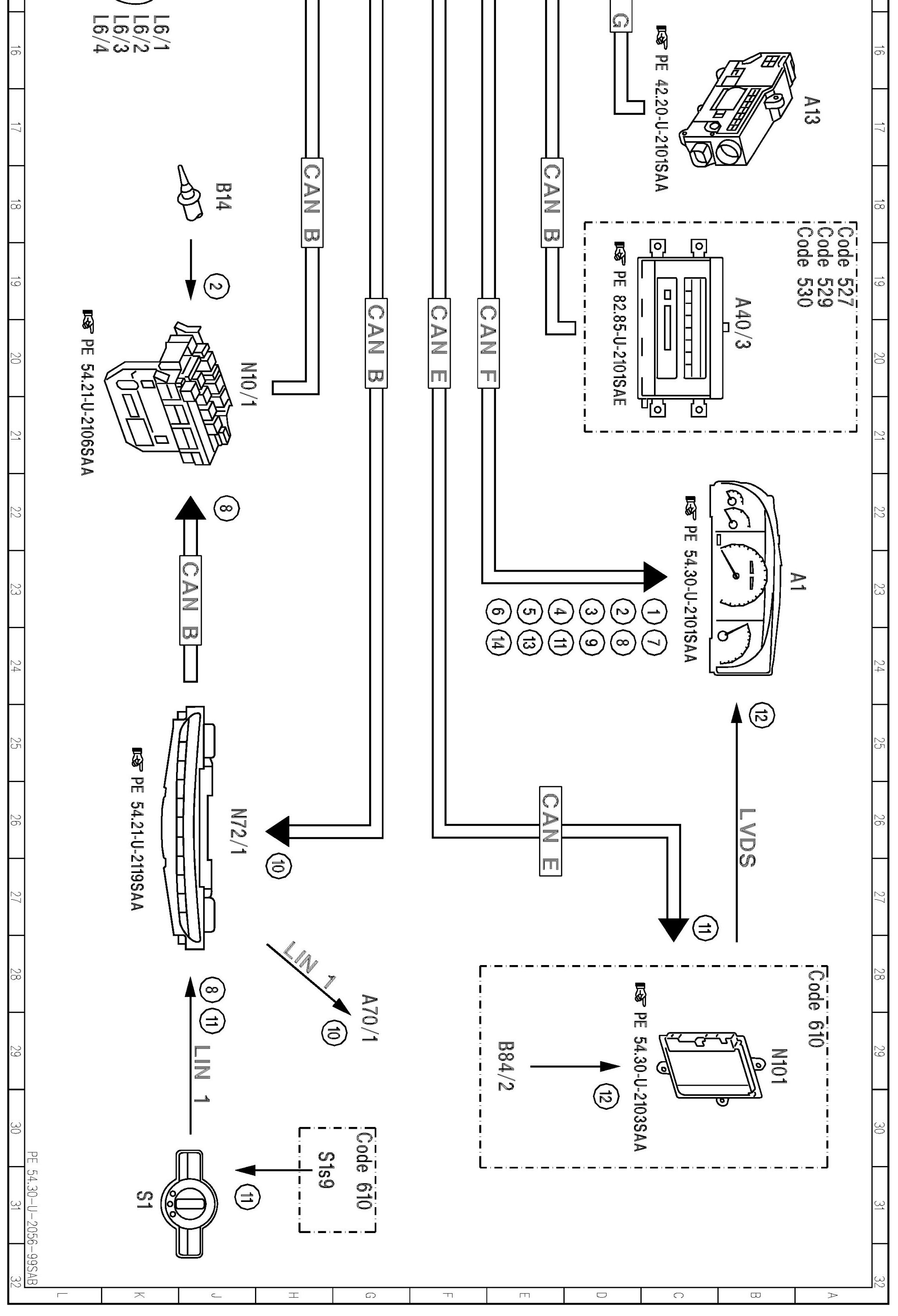

PE54.30-U-2056SAB Electrical Function Diagram For Instrument Cluster Comfort Display

PE54.30-U-2056SAB Electrical Function Diagram For Instrument Cluster Comfort Display

MODEL 221.095 /195 Hybrid

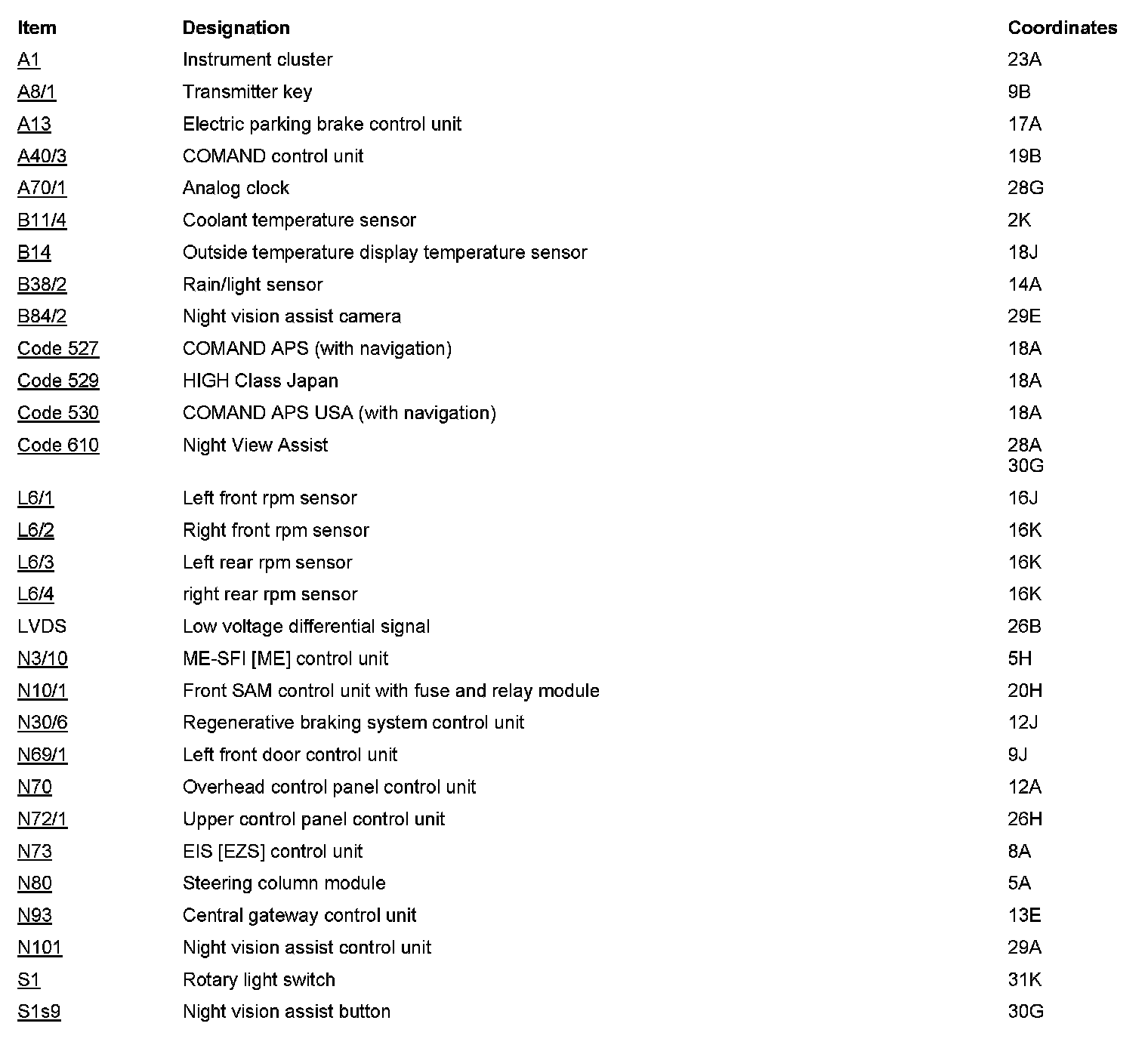

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
