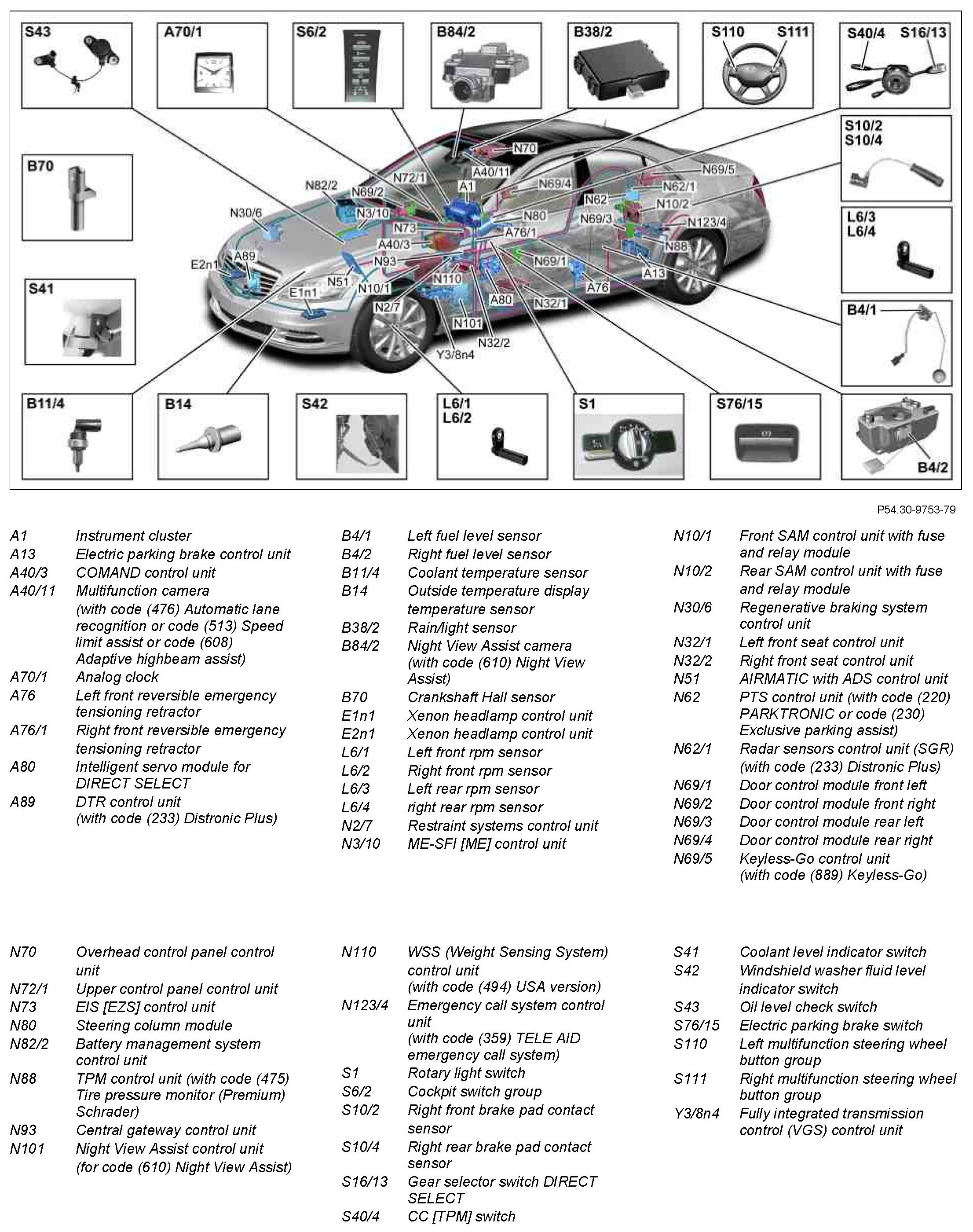

GF54.30-P-0002-04LEH Instrument Cluster (KI), Location of Components
GF54.30-P-0002-04LEH Instrument Cluster (KI), Location of Components
GF54.30-P-0002-04LEH Instrument Cluster (KI), Location Of Components
Component Identification:
