AP82.10-P-8260SX Check and Correct Headlamp Adjustment
AP82.10-P-8260SX Check and Correct Headlamp Adjustment
AP82.10-P-8260SX Check And Correct
Headlamp
Adjustment

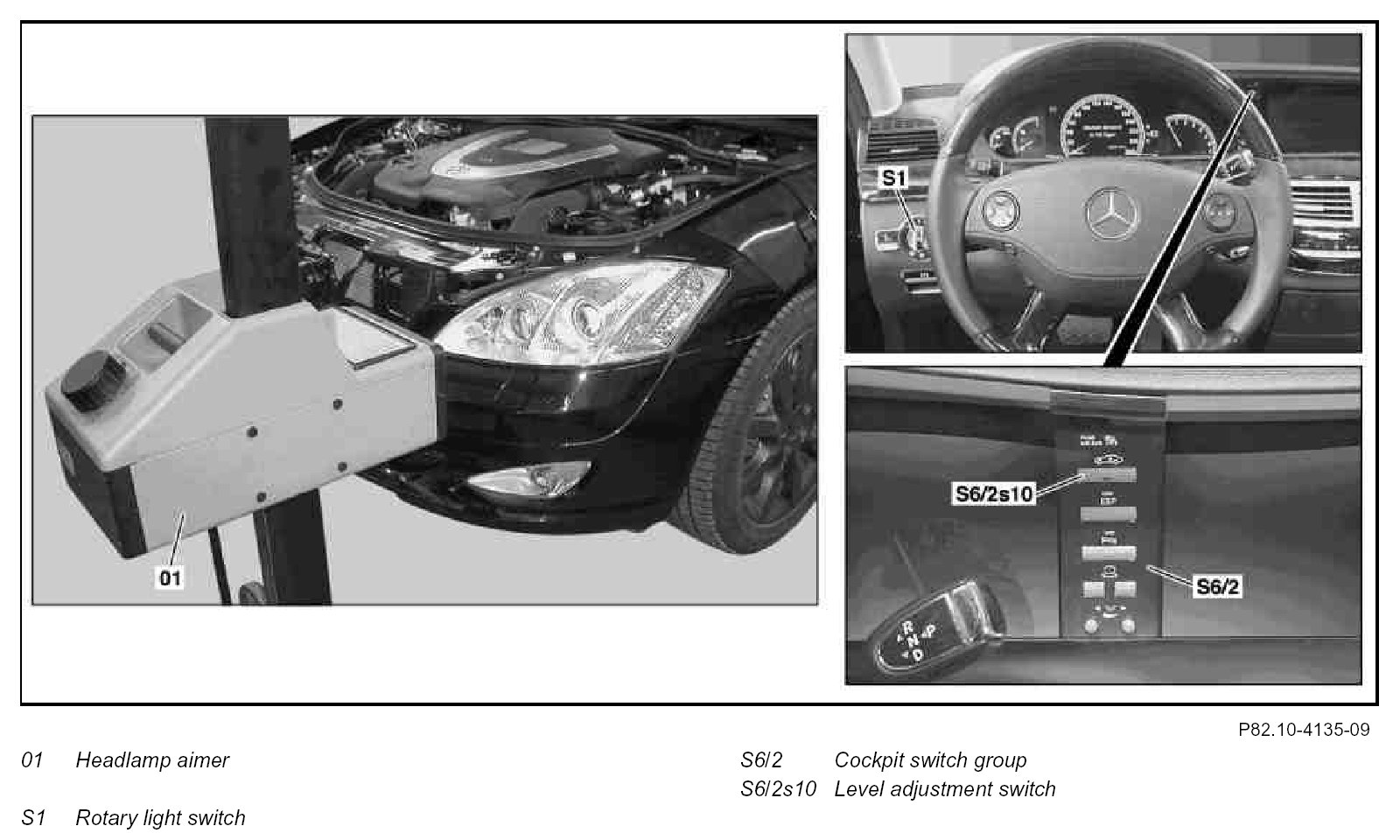

Component Identification:

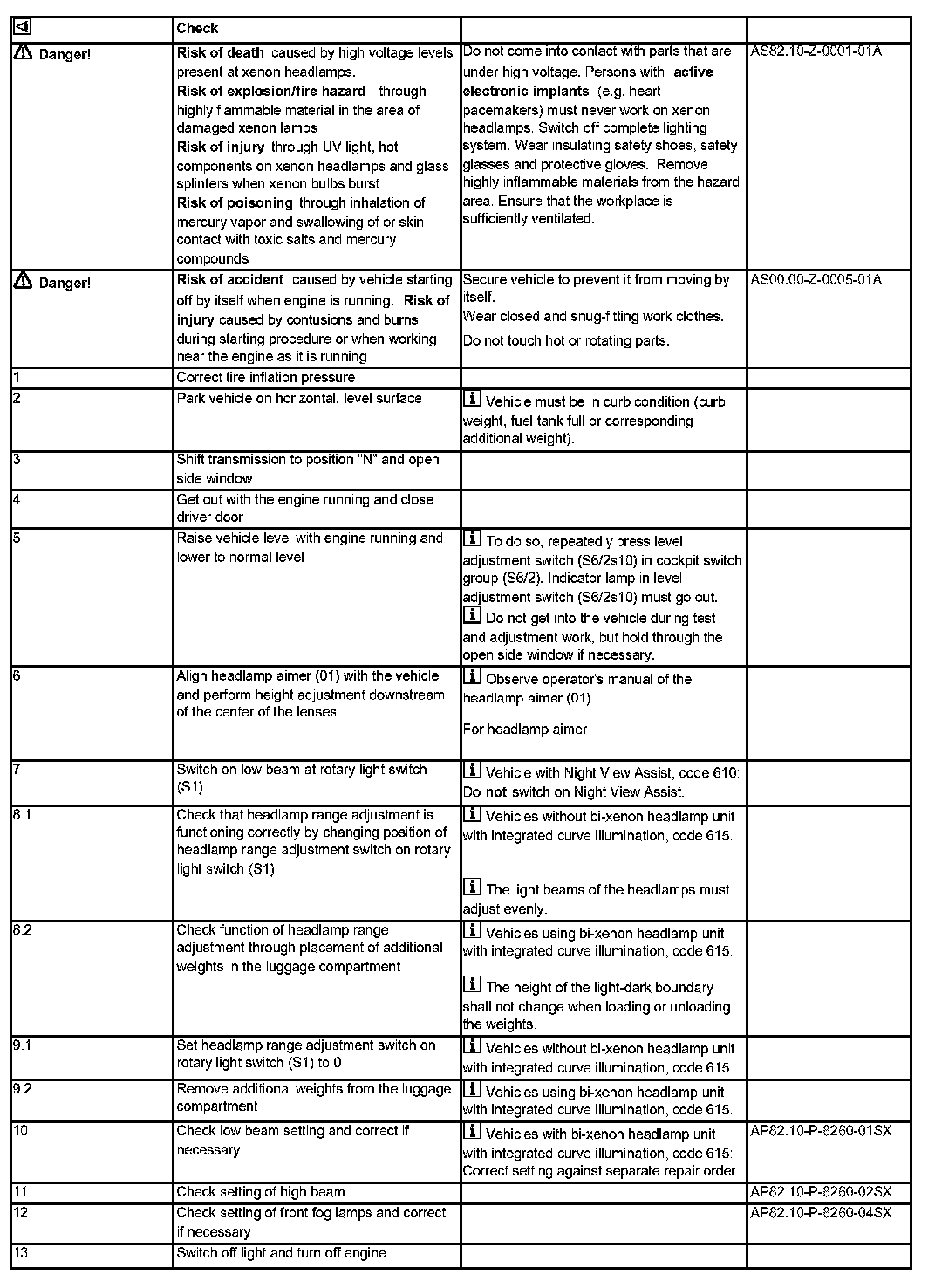

Steps 1 - 13:
