Mercedes Benz
>>
2010
>>
S 400 (221.195) V6-3.5L (272.974) Hybrid
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Horn
>>
Description and Operation
>>

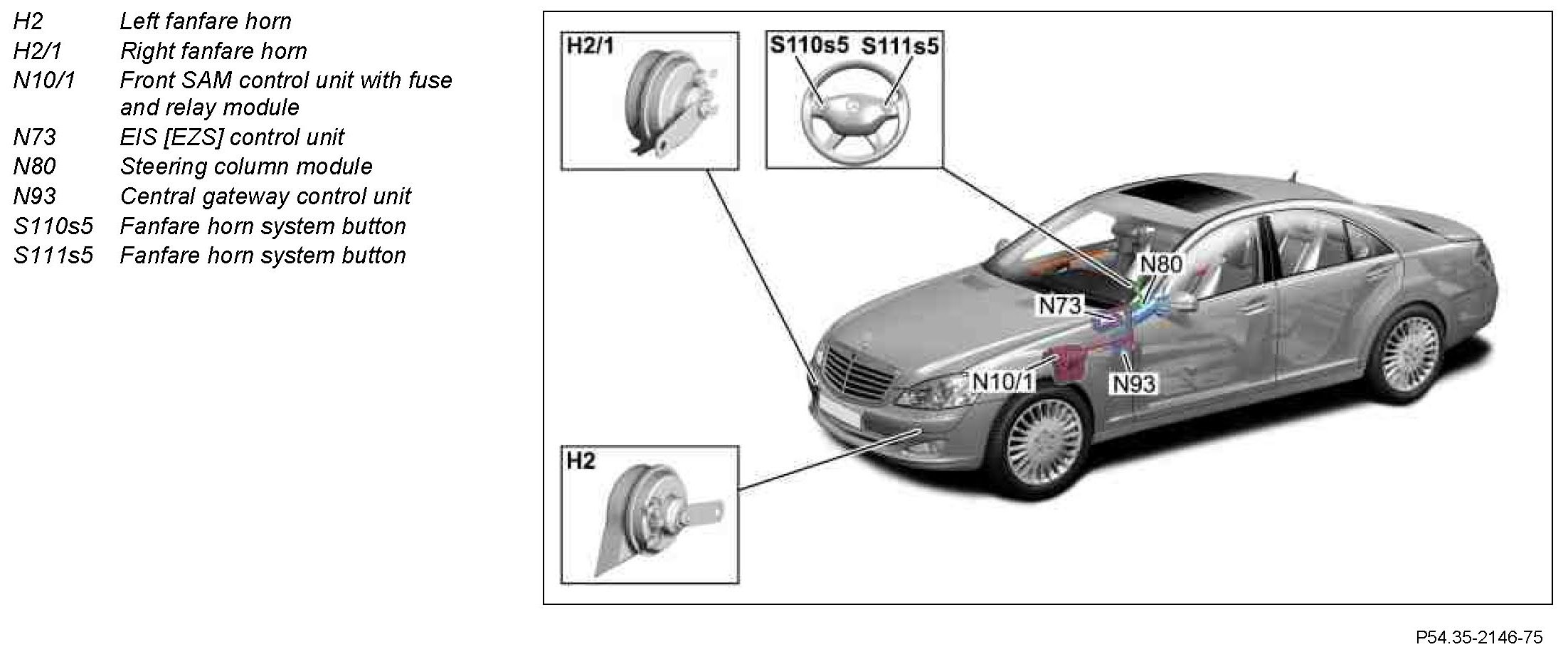

GF54.35-P-0001-01LE Fanfare Position of Components
GF54.35-P-0001-01LE Fanfare Position of Components
GF54.35-P-0001-01LE Fanfare Position Of Components
- as of model year 09
Component Identification:
