PE07.61-P-2000SAC Wiring Diagram, Fuel Injection and Ignition System ME-SFI

PE07.61-P-2000SAC Wiring Diagram, Fuel Injection And Ignition System ME-SFI
- Fuel system

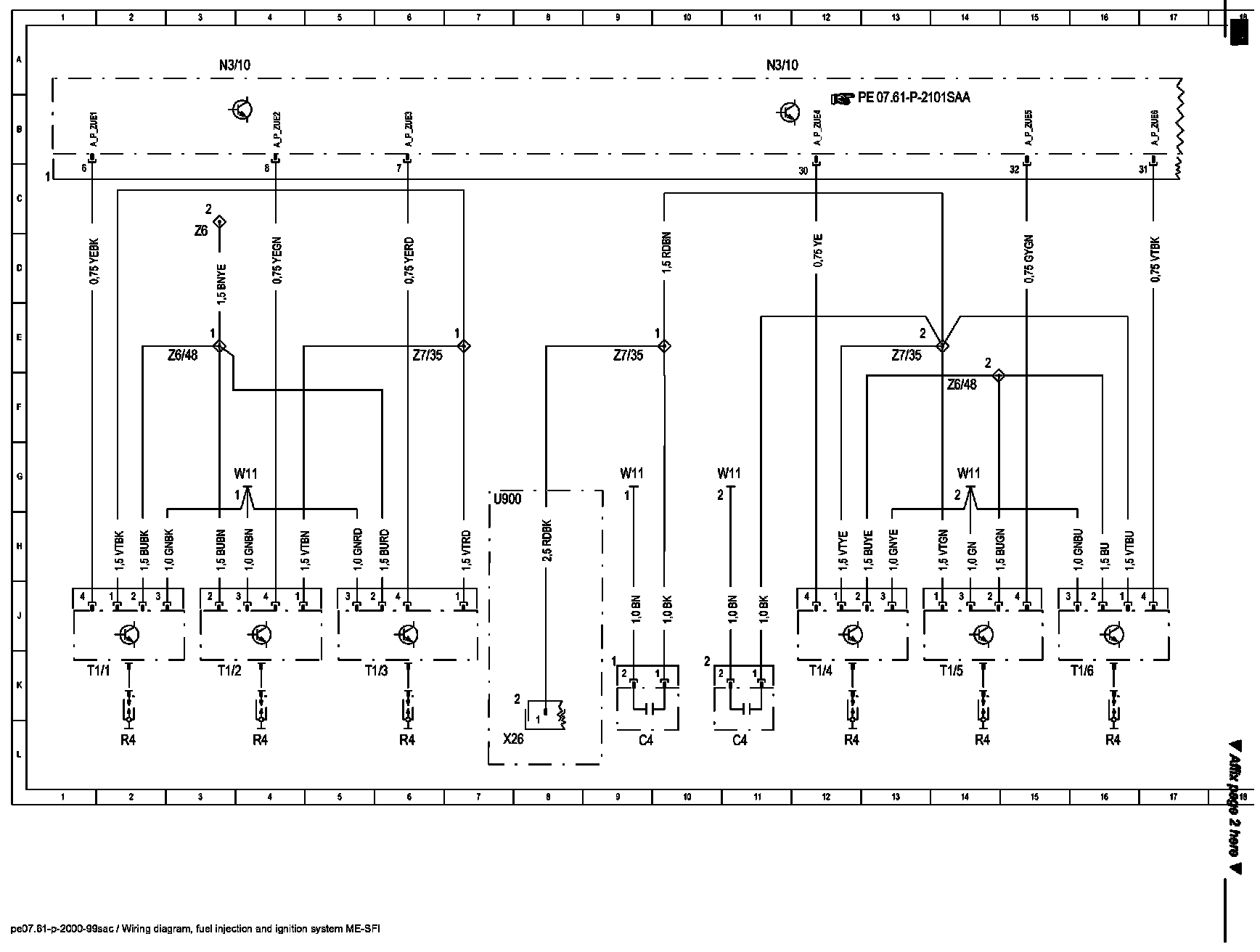

Wiring Diagram (Part 1):

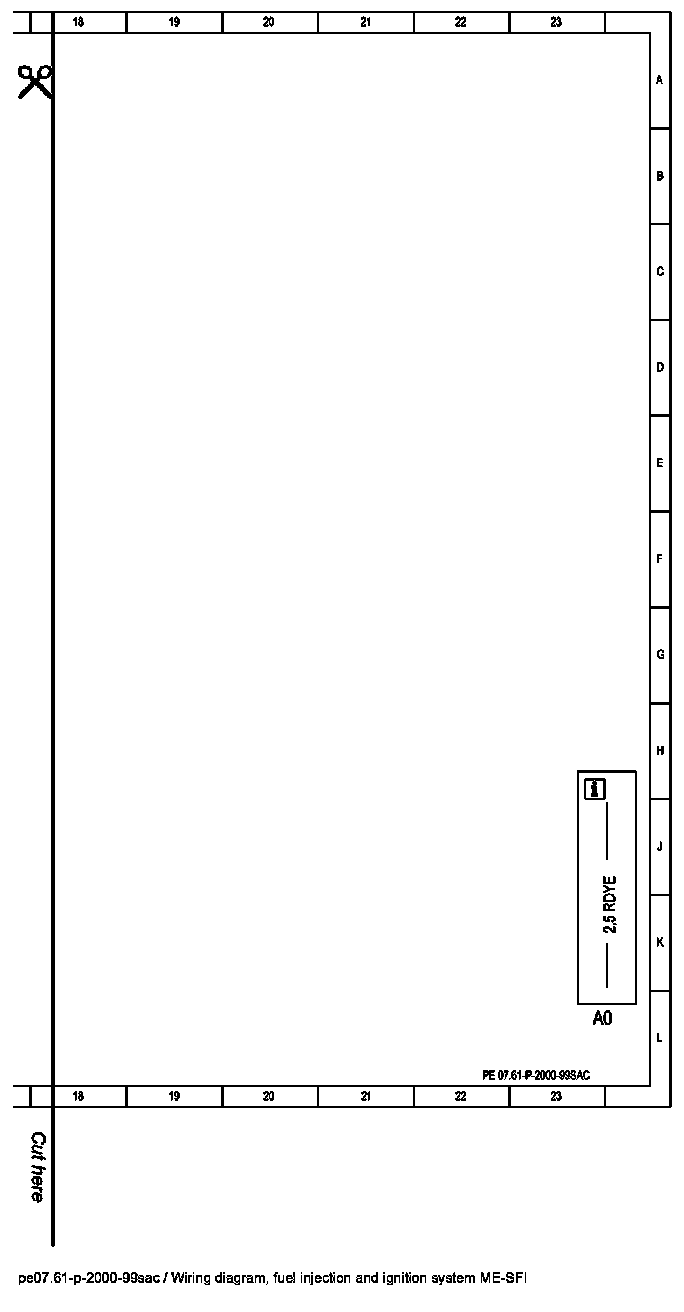

Wiring Diagram (Part 2):

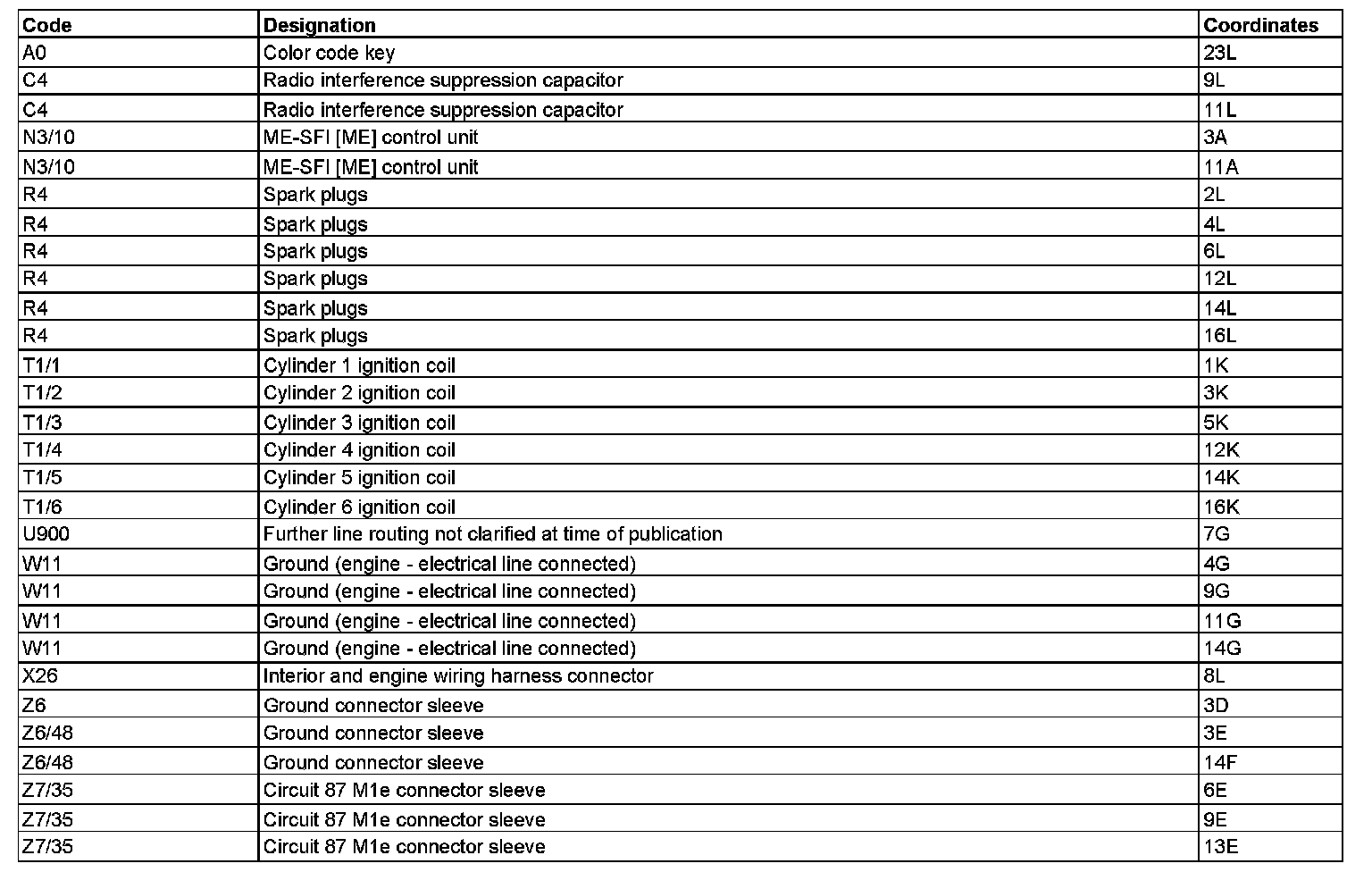

Component Description/Coordinates, A0 To Z7/35:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
