PE07.61-P-2000SAD Wiring Diagram, Fuel Injection and Ignition System ME-SFI

PE07.61-P-2000SAD Wiring Diagram, Fuel Injection And Ignition System ME-SFI
- Engine cooling

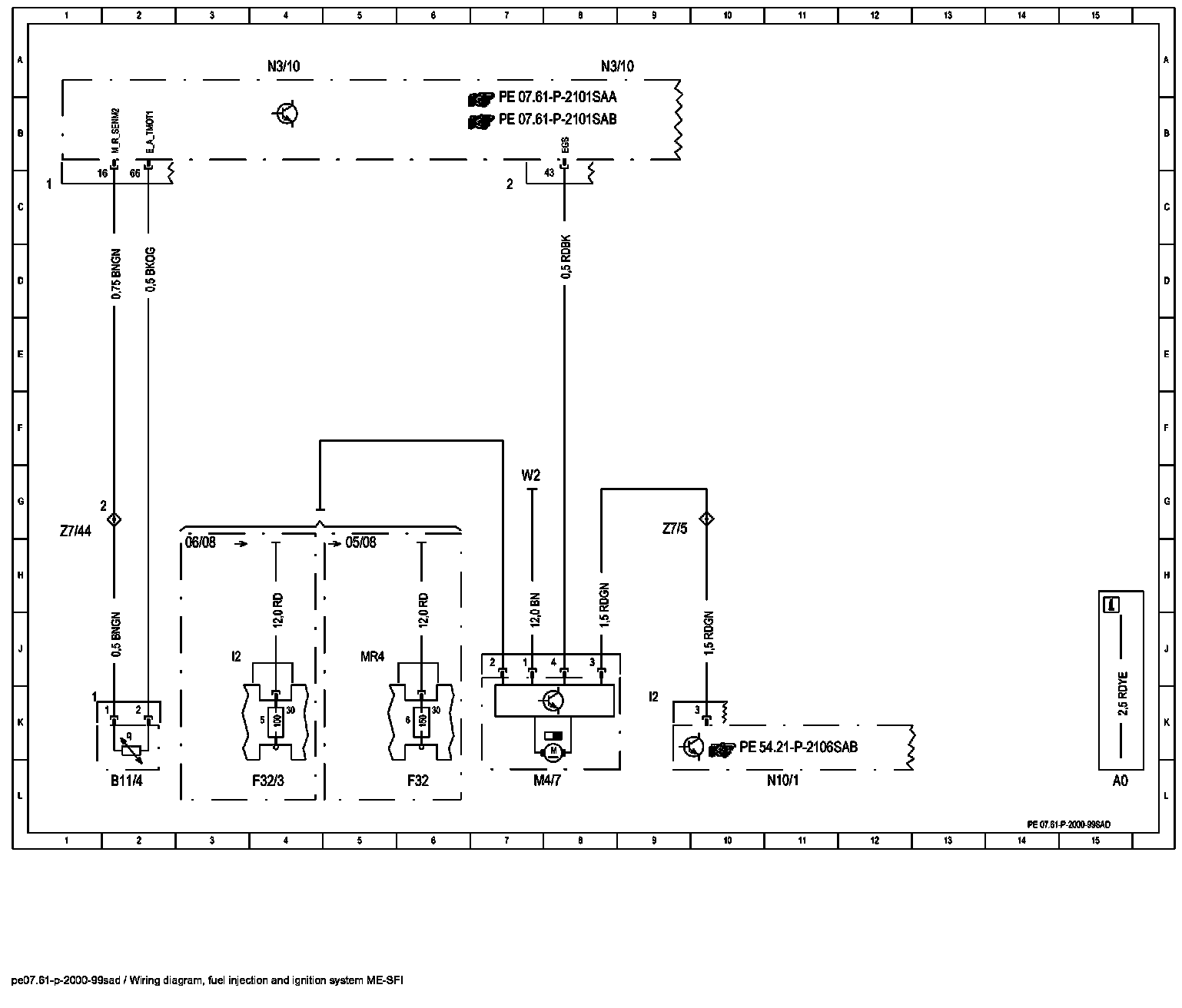

Wiring Diagram:

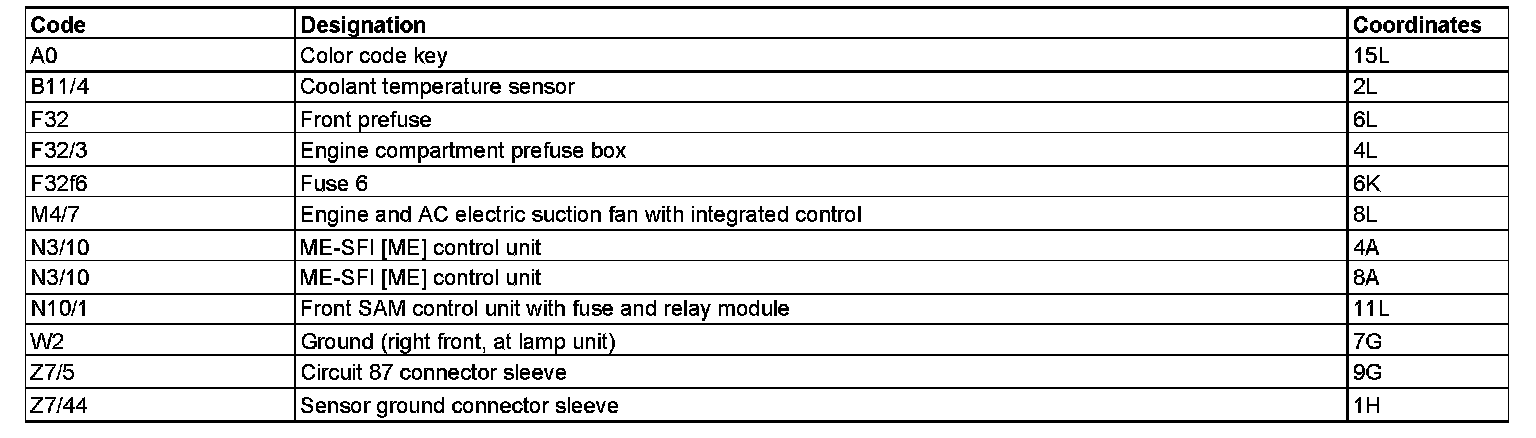

Component Description/Coordinates, A0 To Z7/44:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
