PE07.61-P-2000SBA Wiring Diagram, Fuel Injection and Ignition System ME-SFI

PE07.61-P-2000SBA Wiring Diagram, Fuel Injection And Ignition System ME-SFI
- Injection system

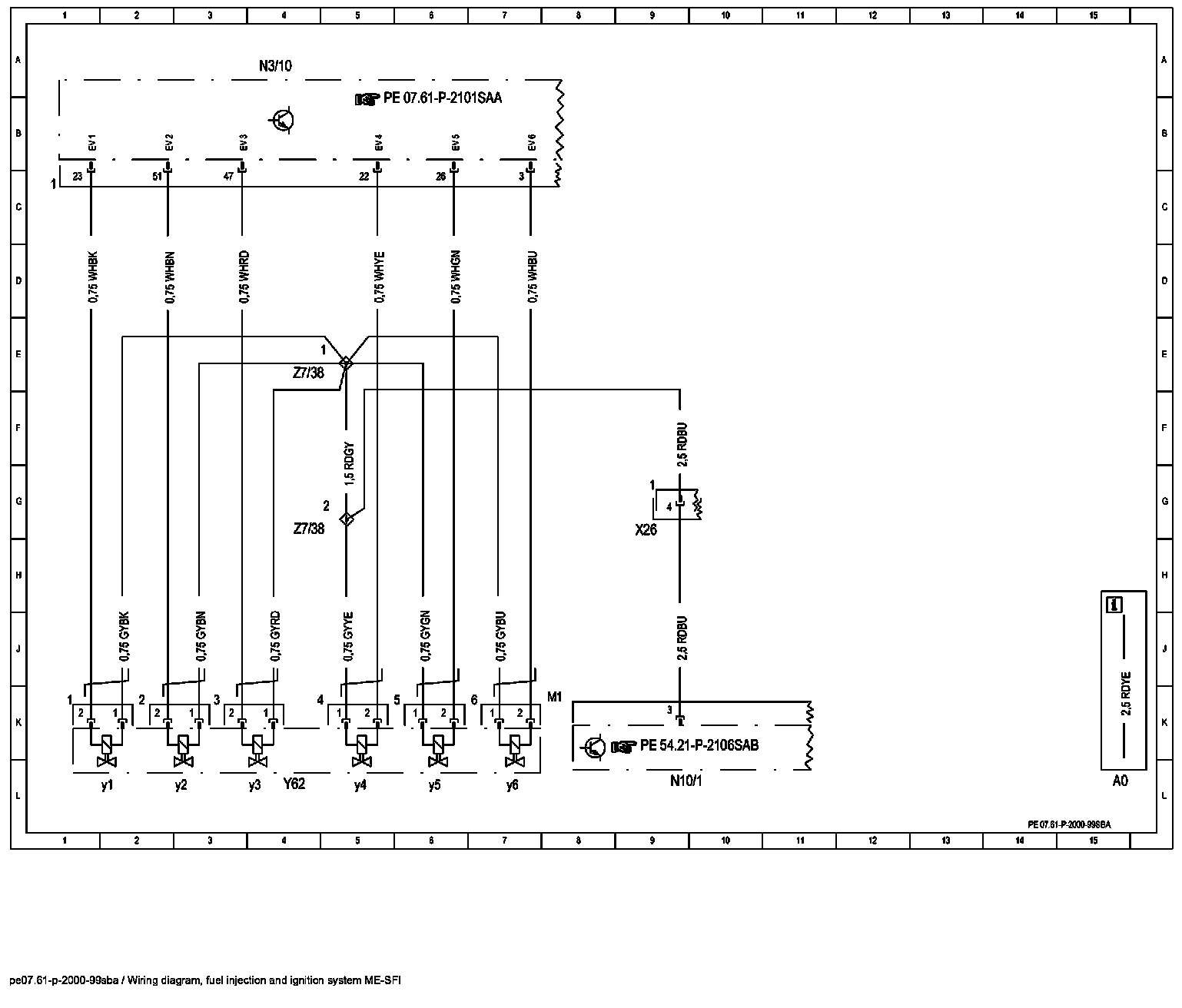

Wiring Diagram:

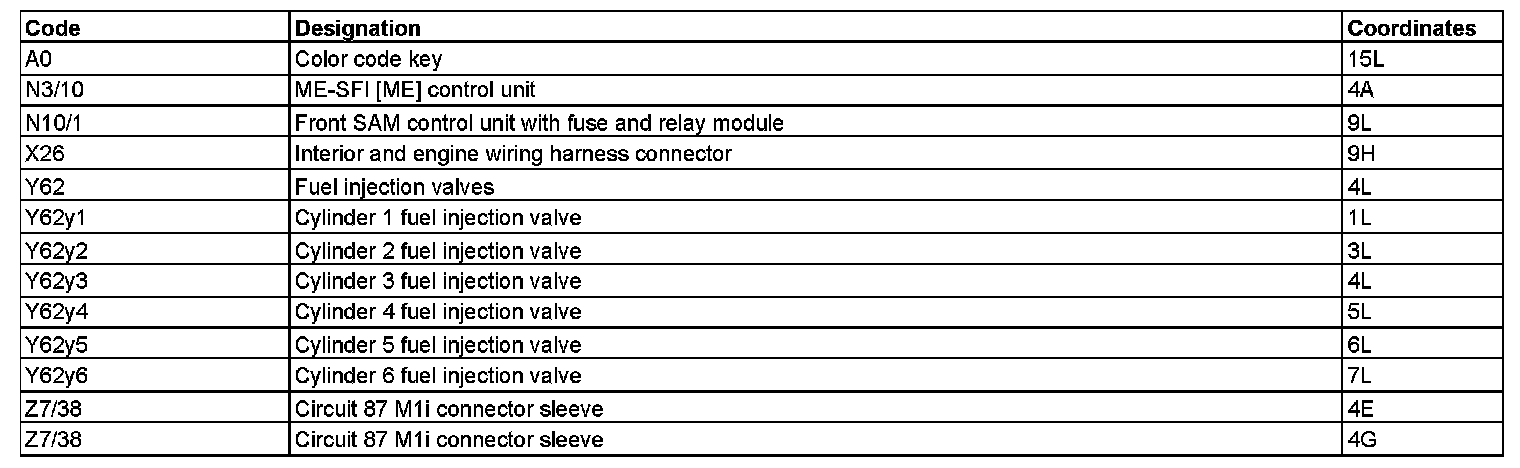

Component Description/Coordinates, A0 To Z7/38:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
