PE07.61-P-2101SAB Wiring Diagram For ME-SFI [ME] Gasoline Injection and Ignition System Control Unit

PE07.61-P-2101SAB Wiring Diagram For ME-SFI [ME] Gasoline Injection And Ignition System Control Unit
- Vehicle side
- Control unit N3/10

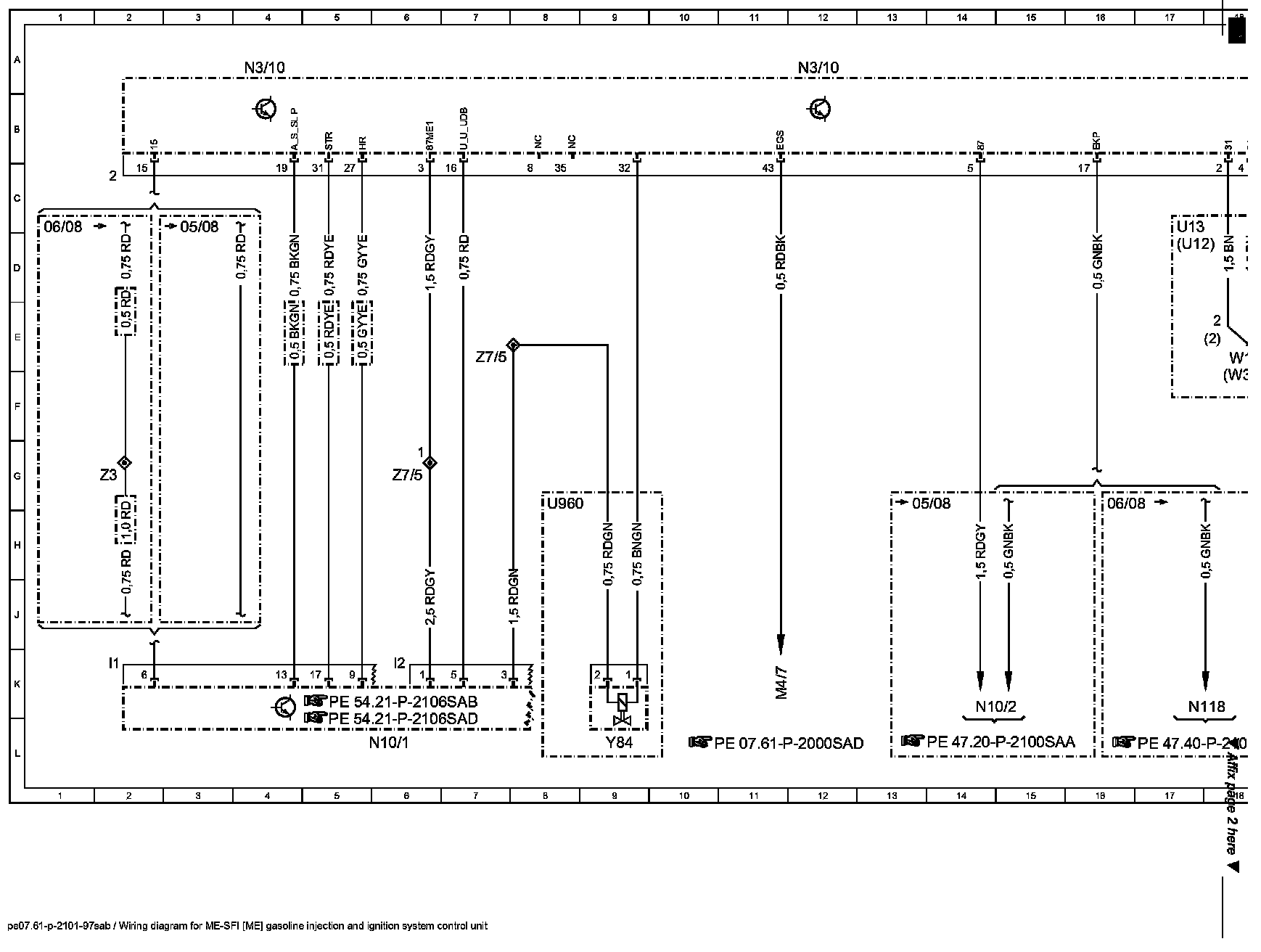

Wiring Diagram (Part 1):

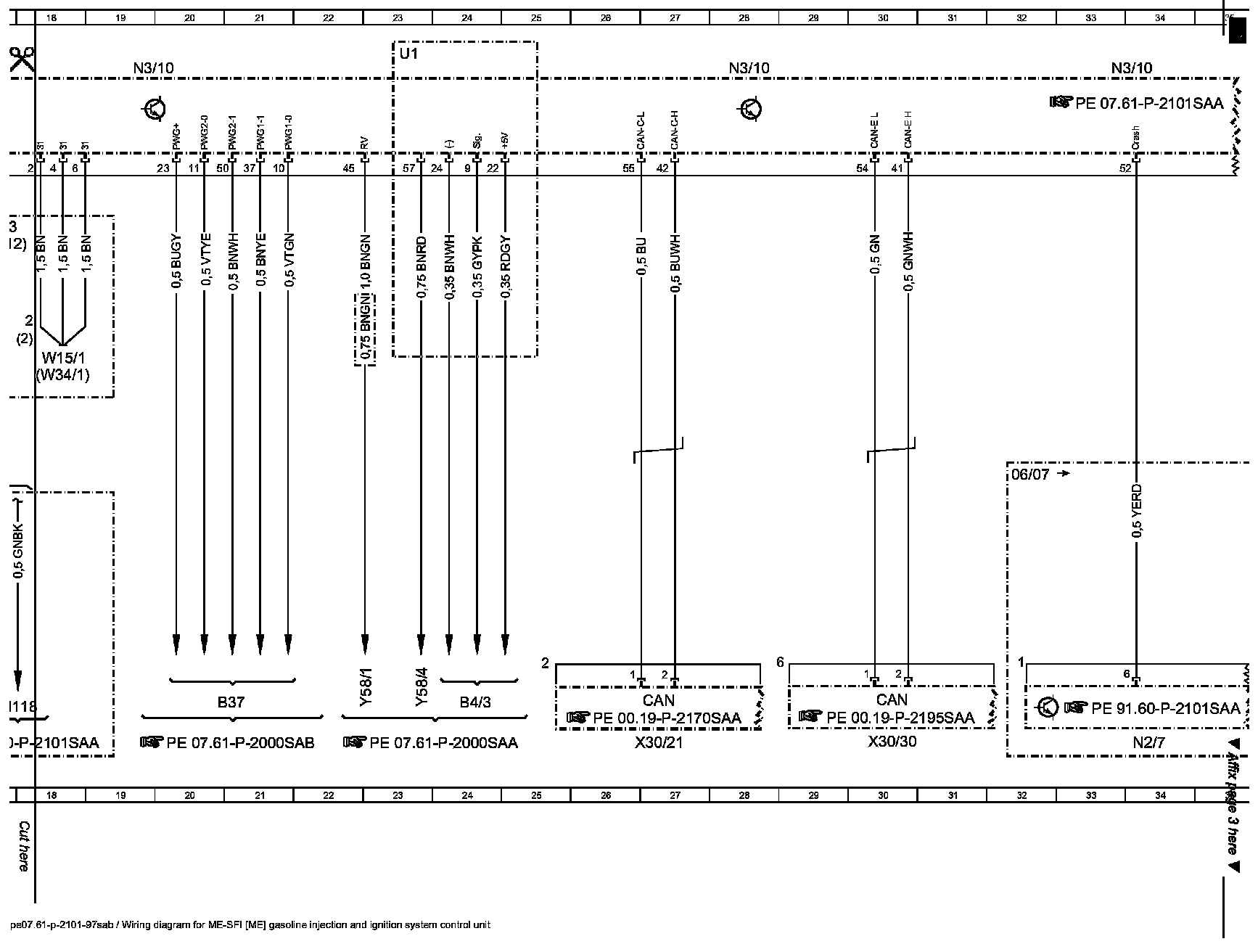

Wiring Diagram (Part 2):

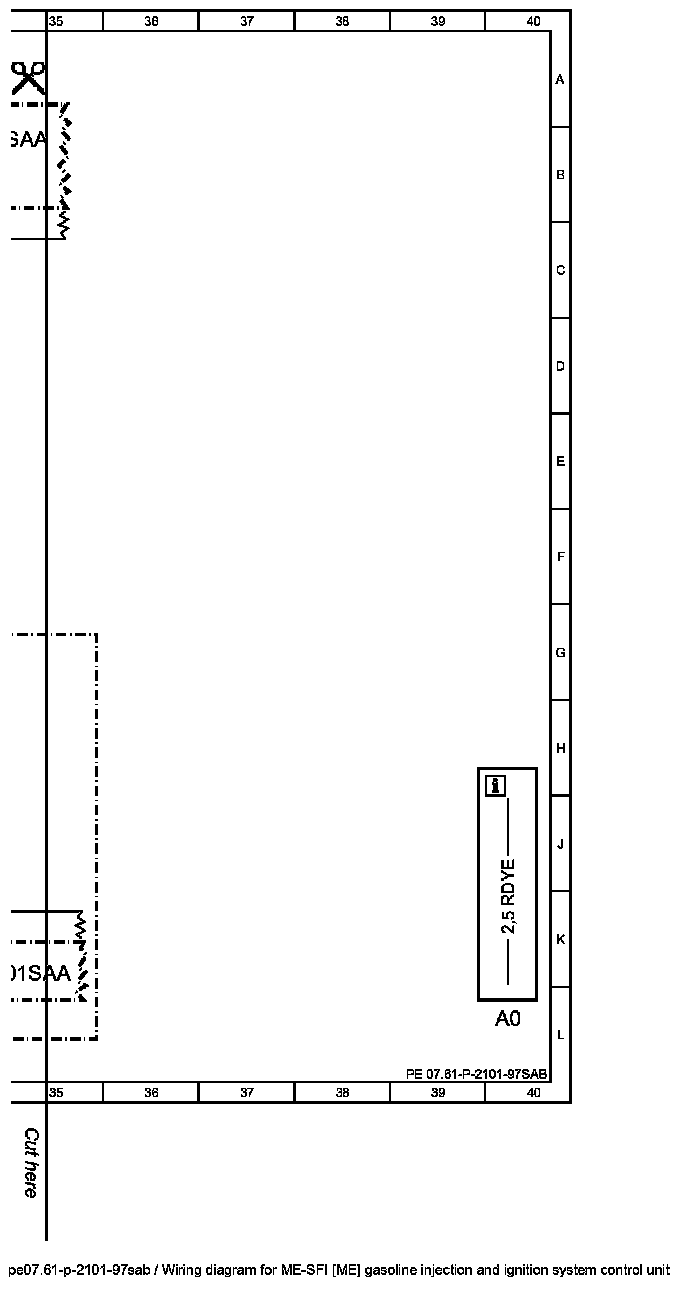

Wiring Diagram (Part 3):

Component Description/Coordinates, A0 To Z7/5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
