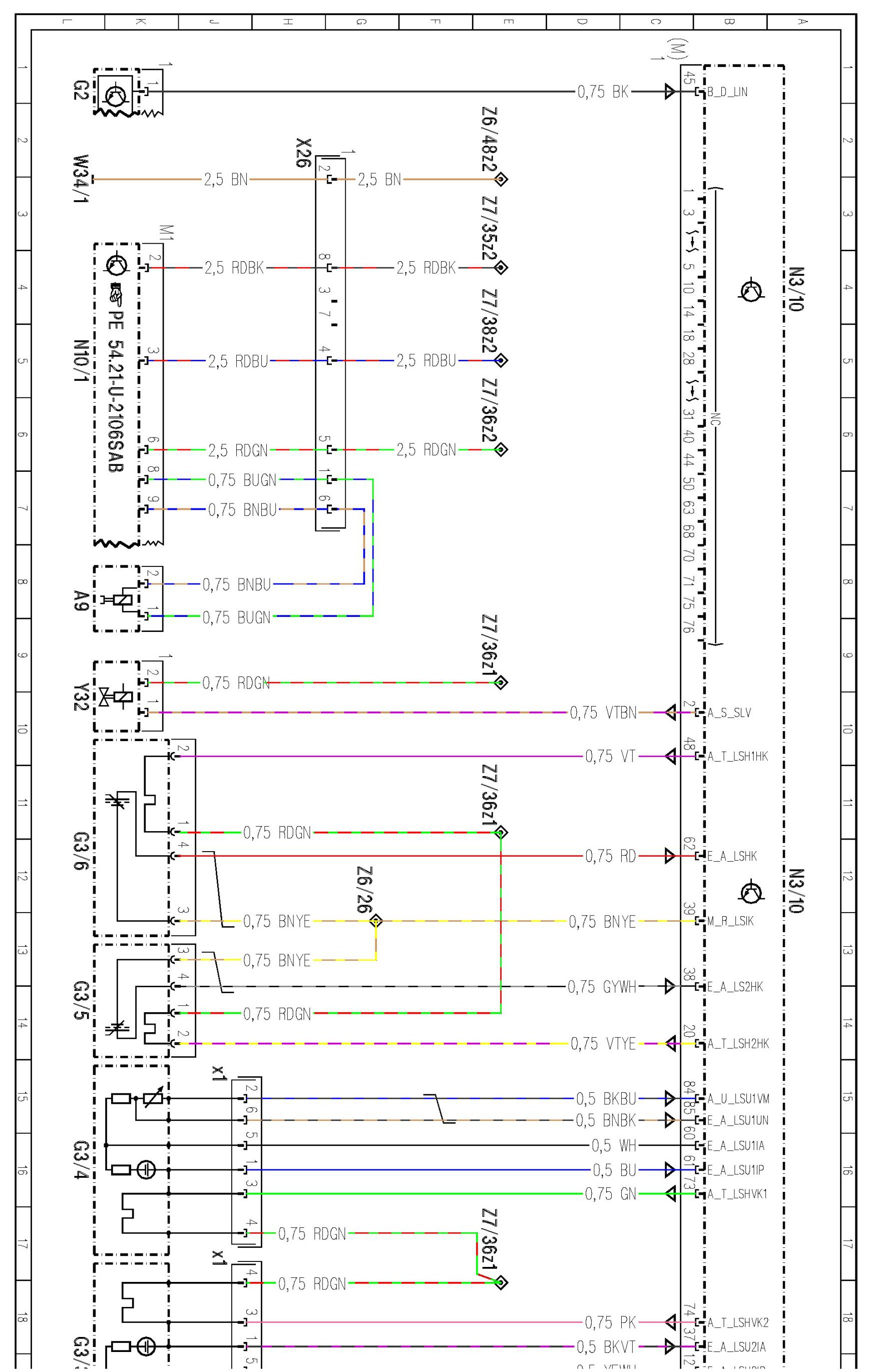

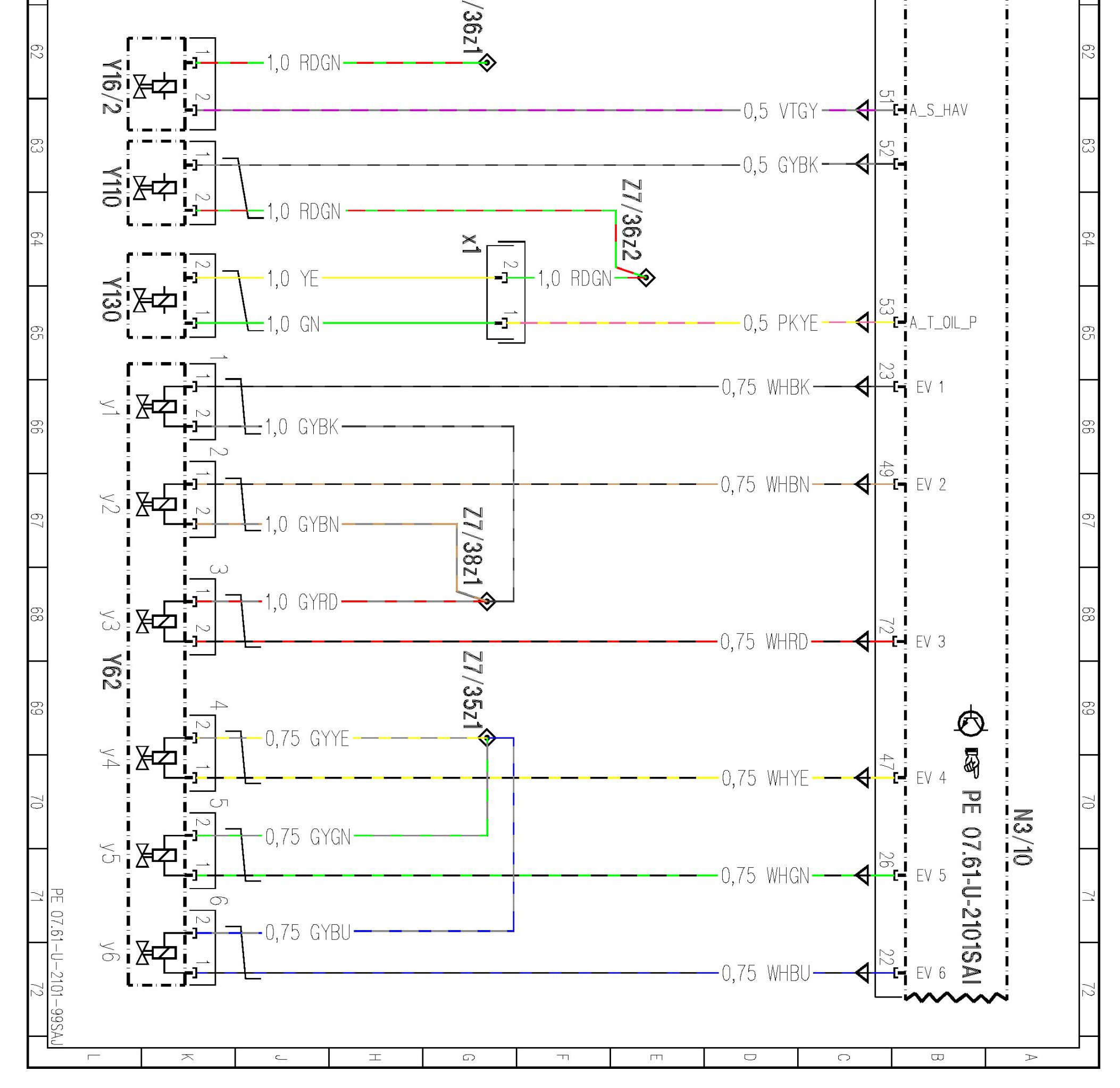

PE07.61-U-2101SAJ ME-SFI Fuel Injection and Ignition System Control Module

PE07.61-U-2101SAJ ME-SFI Fuel Injection and Ignition System Control Module

ENGINE 272.974 in MODEL 221.095 /195

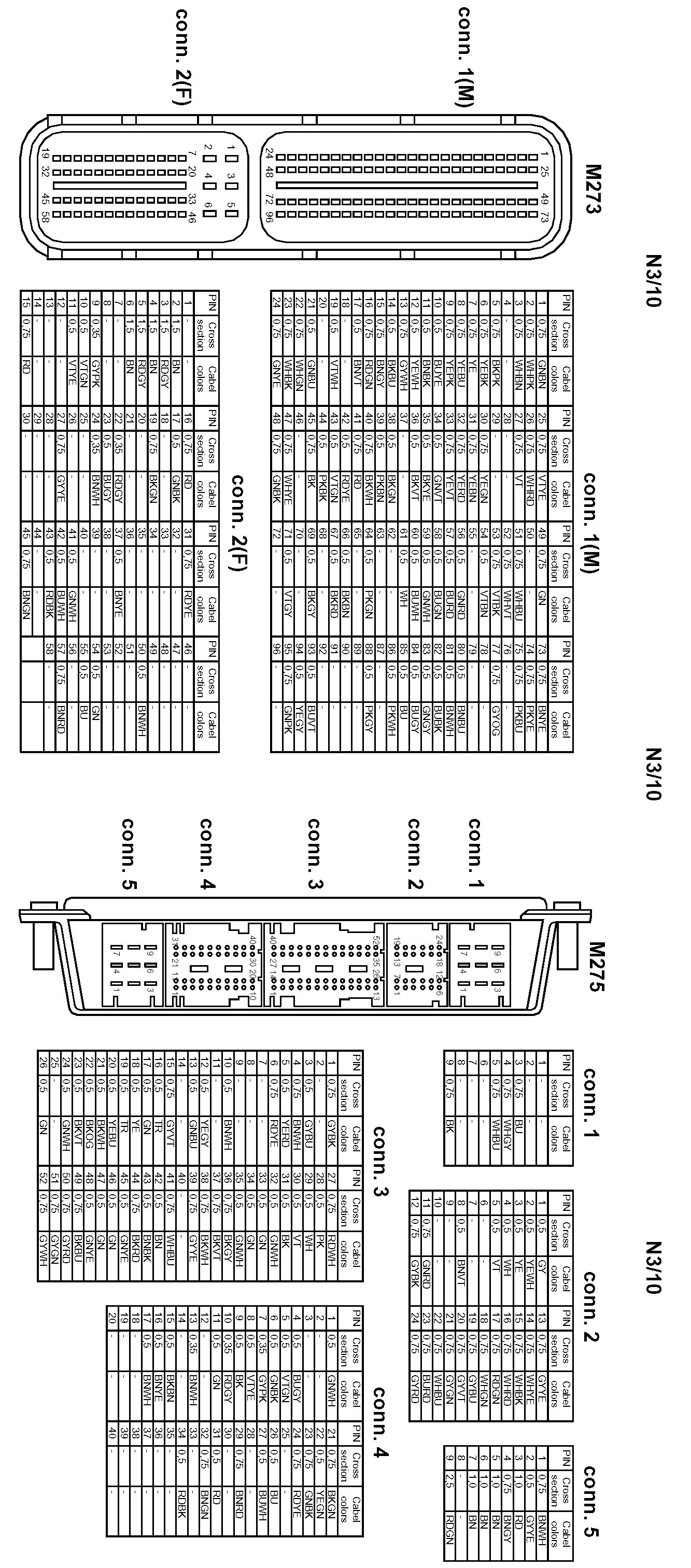

- ME17.7, control unit N3/10, engine side























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
