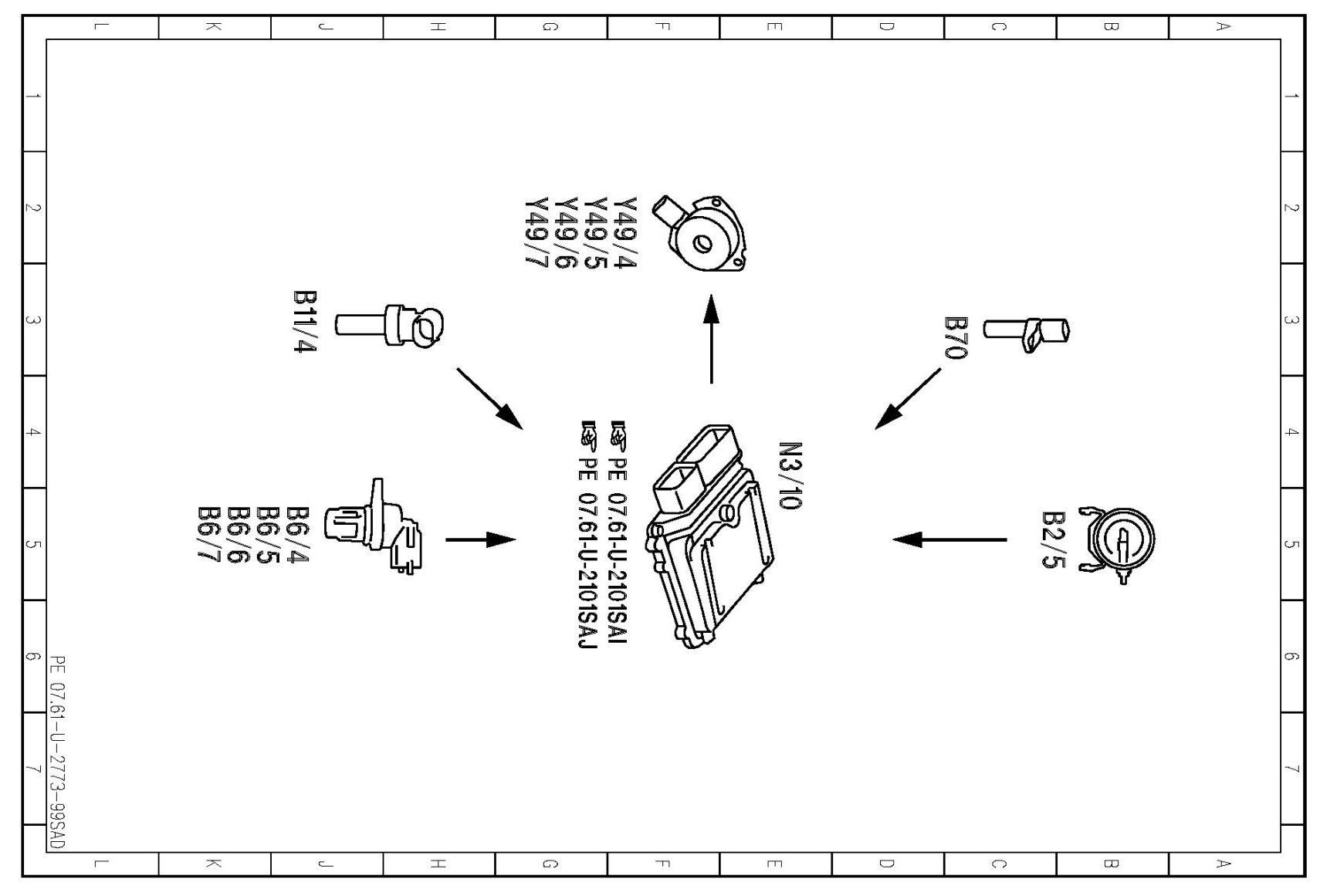

PE07.61-U-2773SAD Electrical Function Diagram For ME Camshaft Adjustment

PE07.61-U-2773SAD Electrical Function Diagram For ME Camshaft Adjustment

ENGINE 272.974 in MODEL 221.095 /195
- as of Model Year 2010

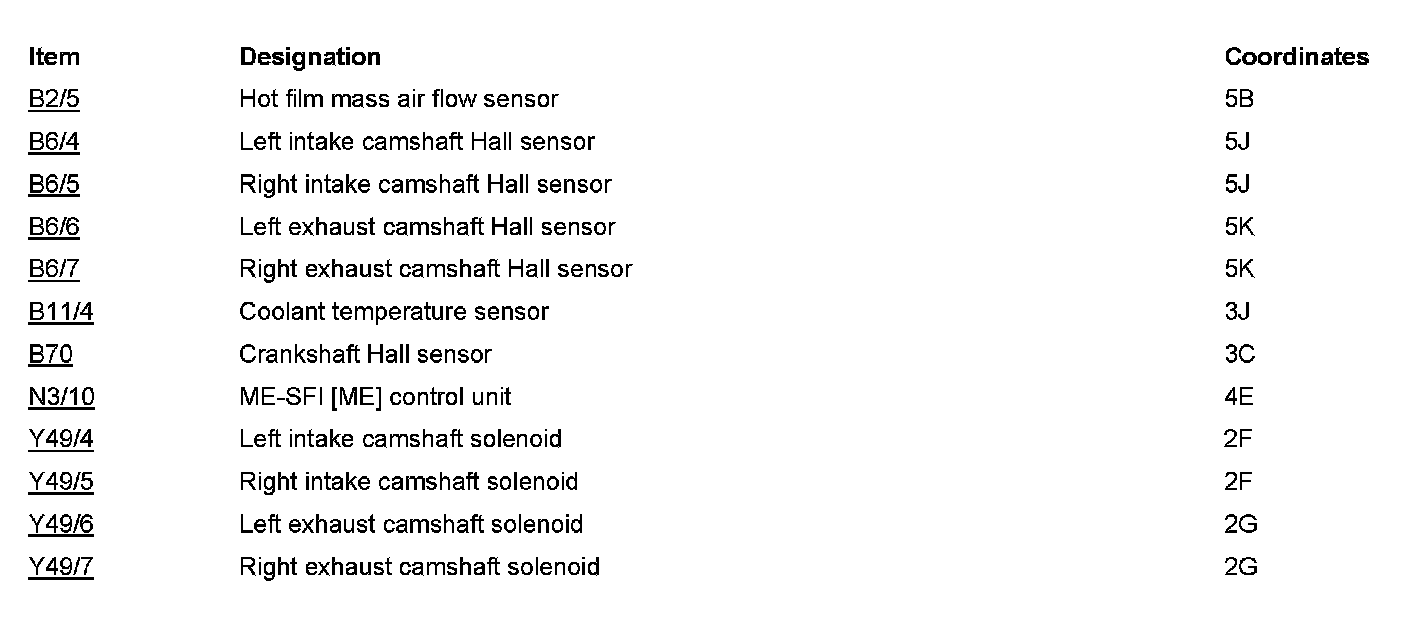

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
