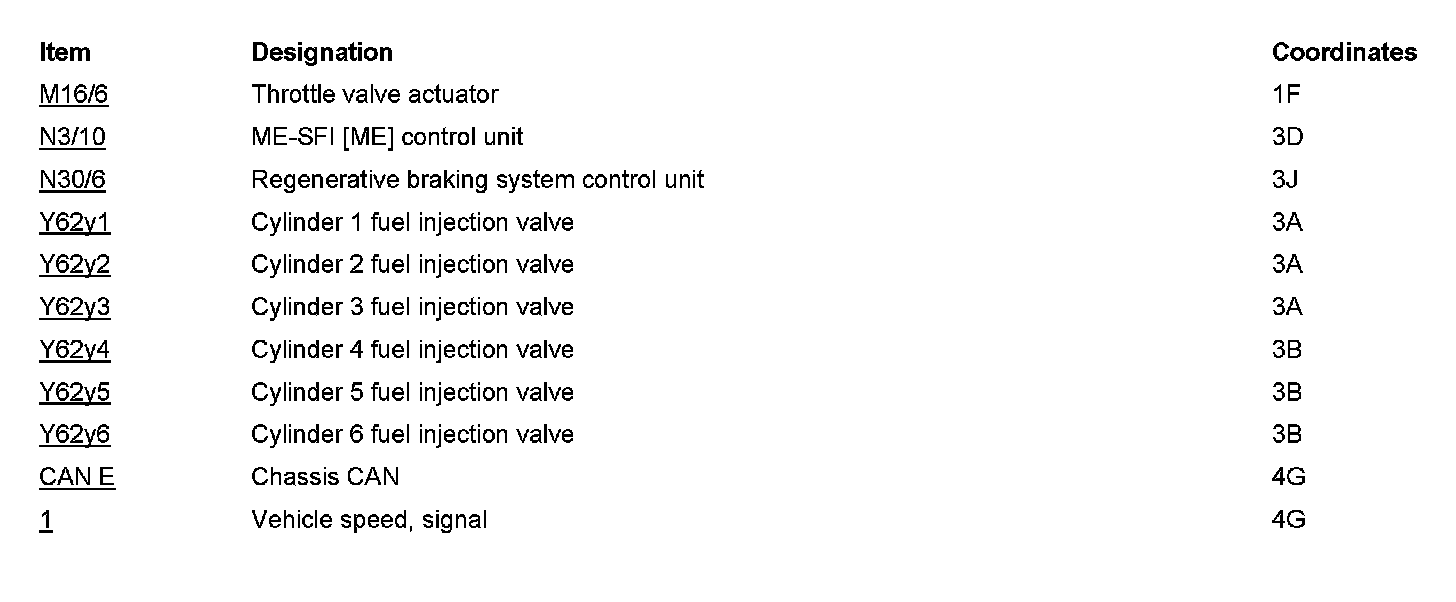

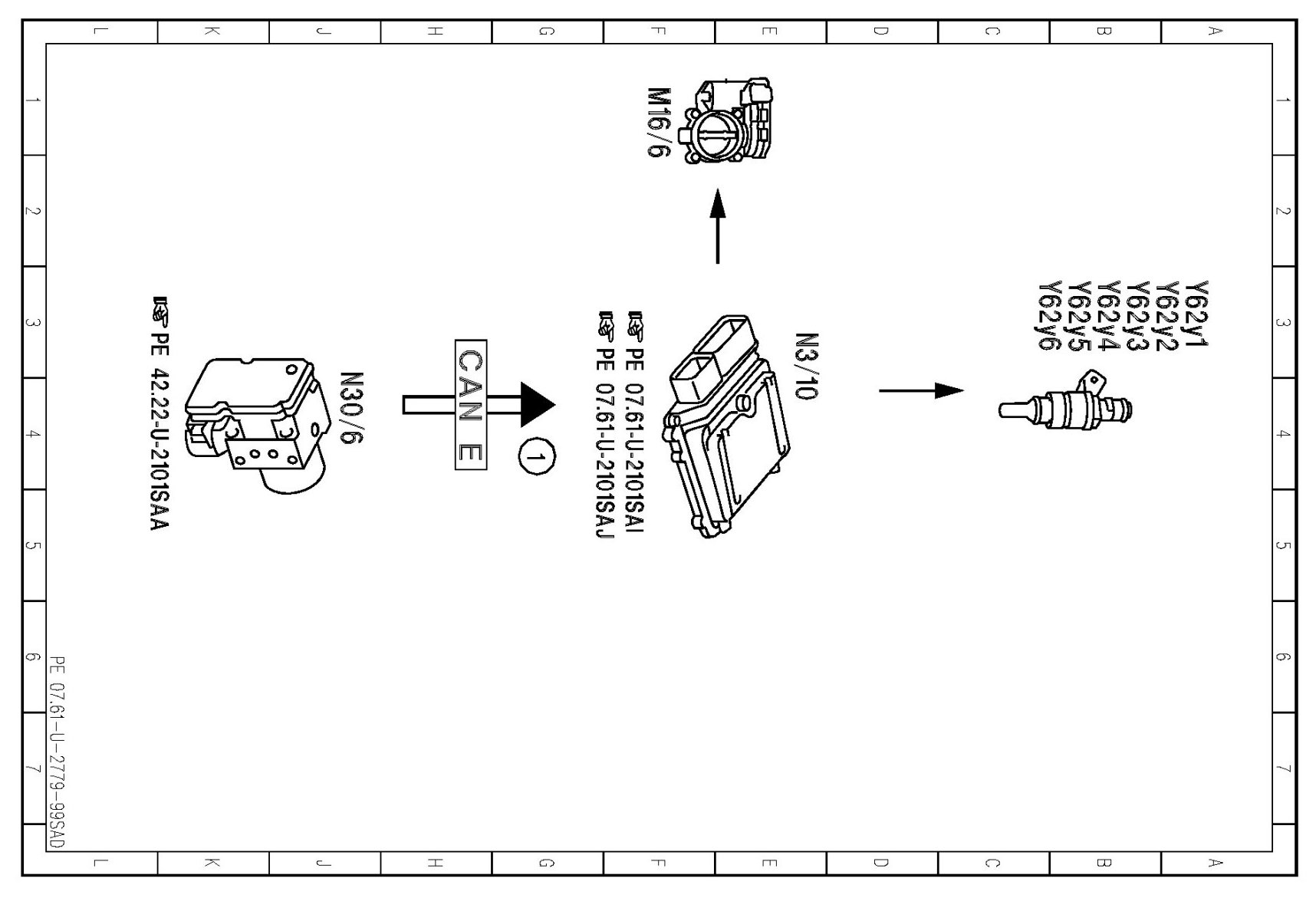

PE07.61-U-2779SAD Electrical Function Diagram For Maximum Speed Limitation

PE07.61-U-2779SAD Electrical Function Diagram For Maximum Speed Limitation

ENGINE 272.974 in MODEL 221.095 /195
- as of Model Year 2010















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
