AR91.60-P-0680SX Remove/Install Passenger Airbag Unit
AR91.60-P-0680SX Remove/Install Passenger Airbag Unit
AR91.60-P-0680SX Remove/install Passenger Airbag Unit
Component Identification:

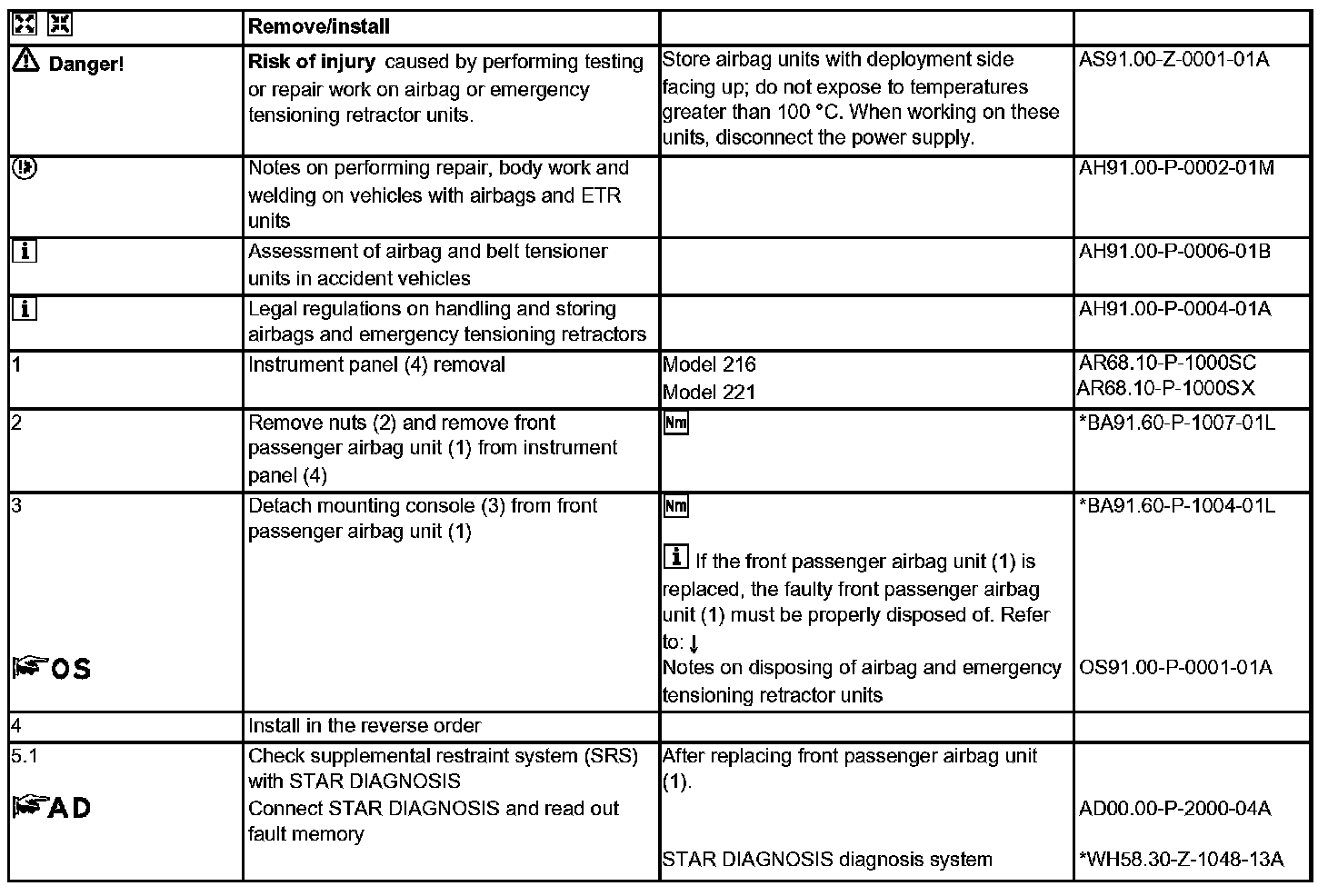

Steps 1-5.1:

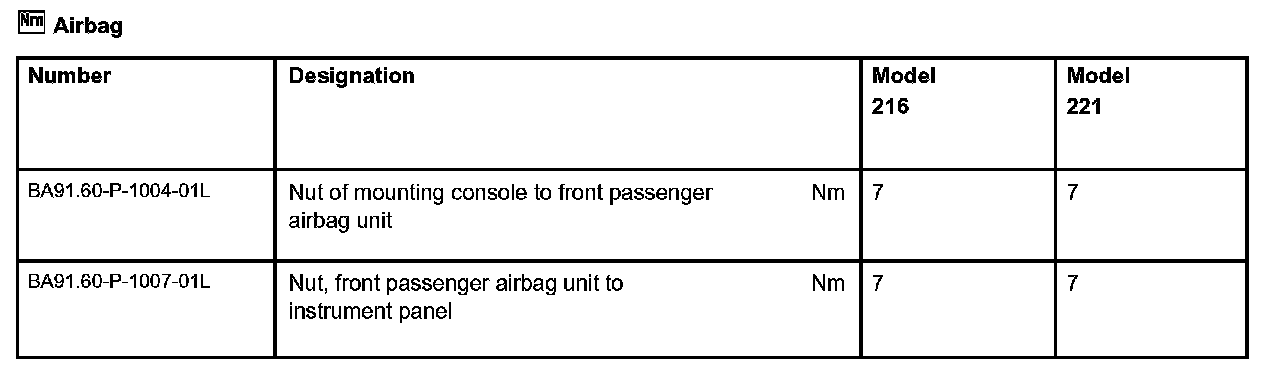

Airbag:

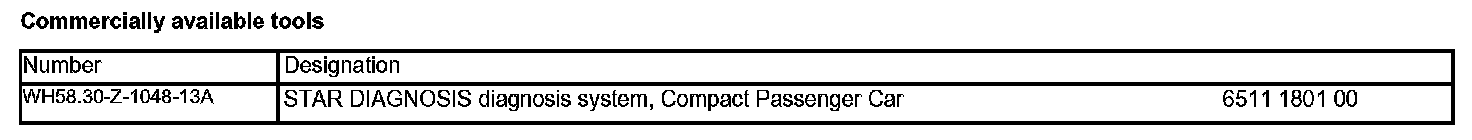

Commercially Available Tools:
