AP54.10-P-5410SX Batteries - Checking and Correcting Fluid Level
AP54.10-P-5410SX Batteries - Checking and Correcting Fluid Level
AP54.10-P-5410SX Batteries - Checking And Correcting Fluid Level
- with lead acid battery
Component Identification:

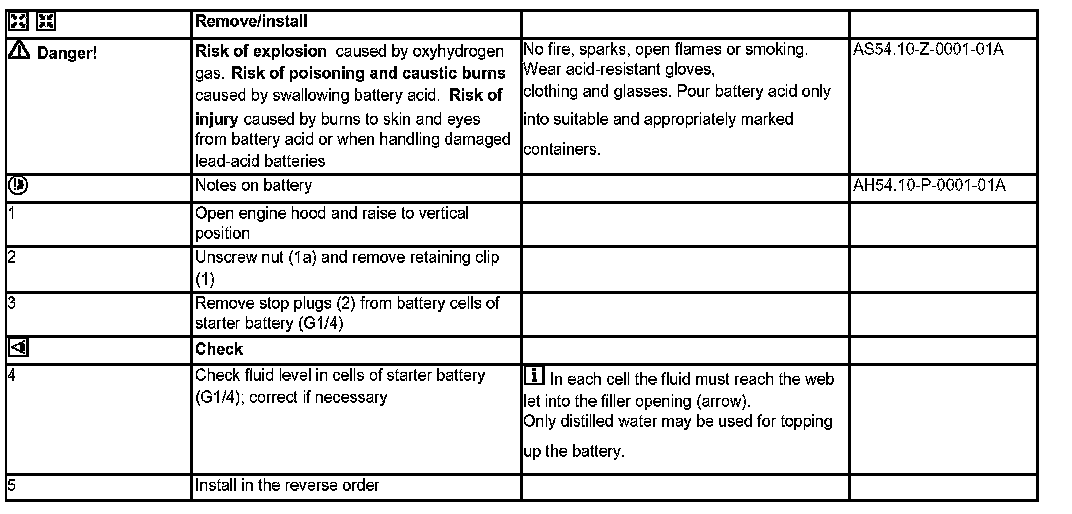

Steps 1 - 5:
