Tie Rod: Service and Repair



AR46.40-P-0400SX Check and replace rubber boot

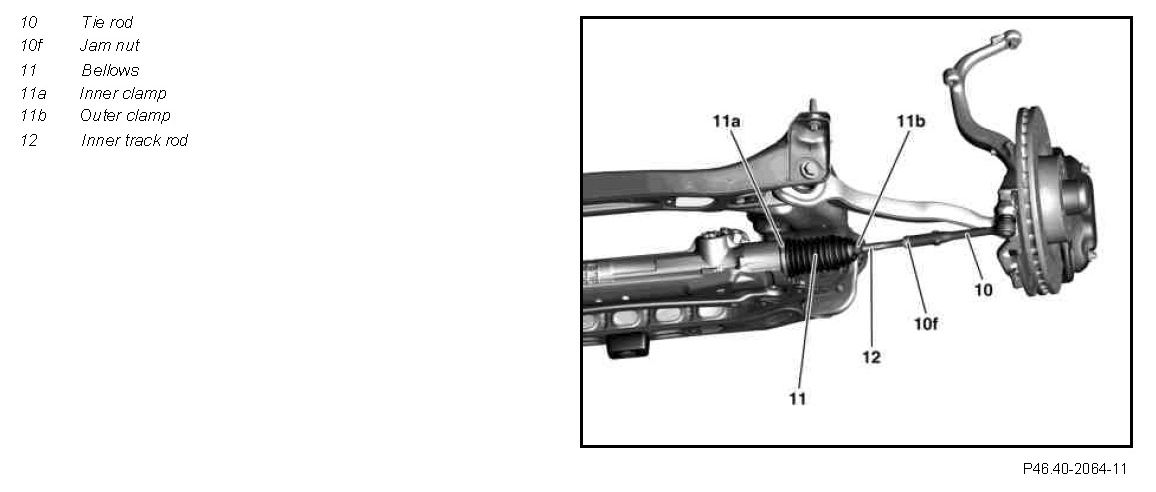

Component Identification:

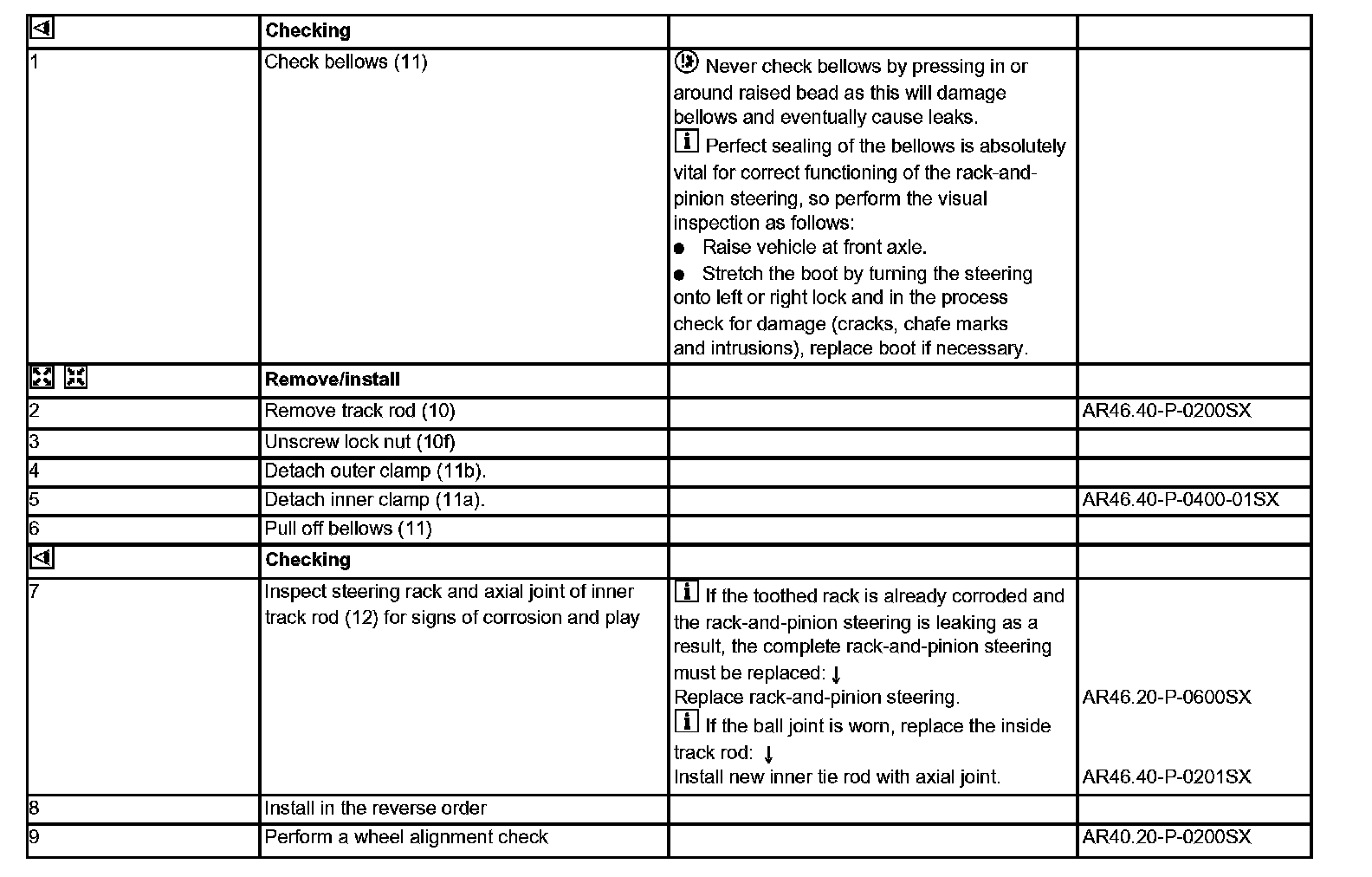

Steps 1-9:
