GF27.10-P-0002-03LEH Automatic Transmission Hybrid Drive, Location of Electrical Components/Electronic Components



GF27.10-P-0002-03LEH Automatic transmission hybrid drive, location of electrical components/electronic components
- TRANSMISSION 722.950

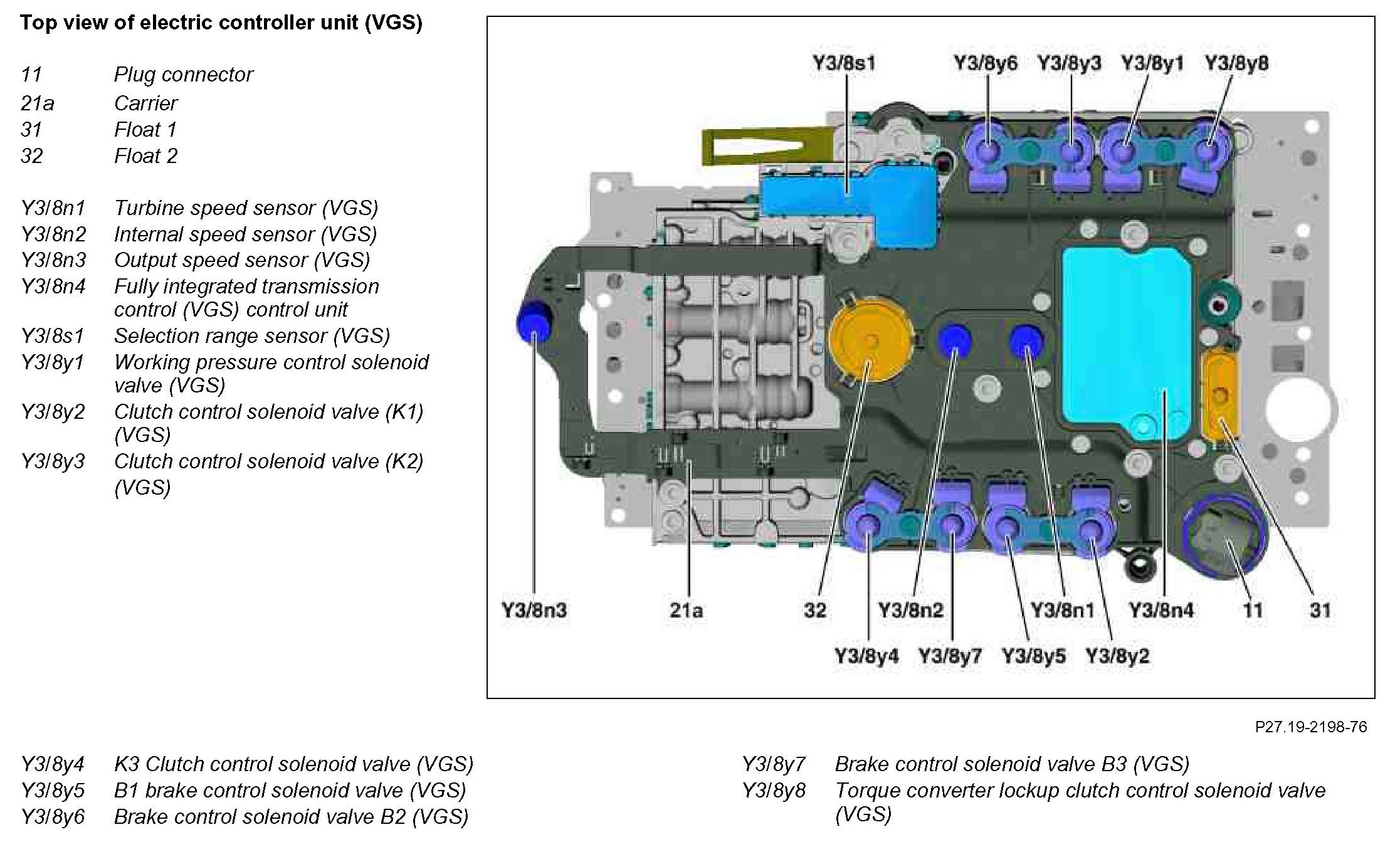

Component Identification:

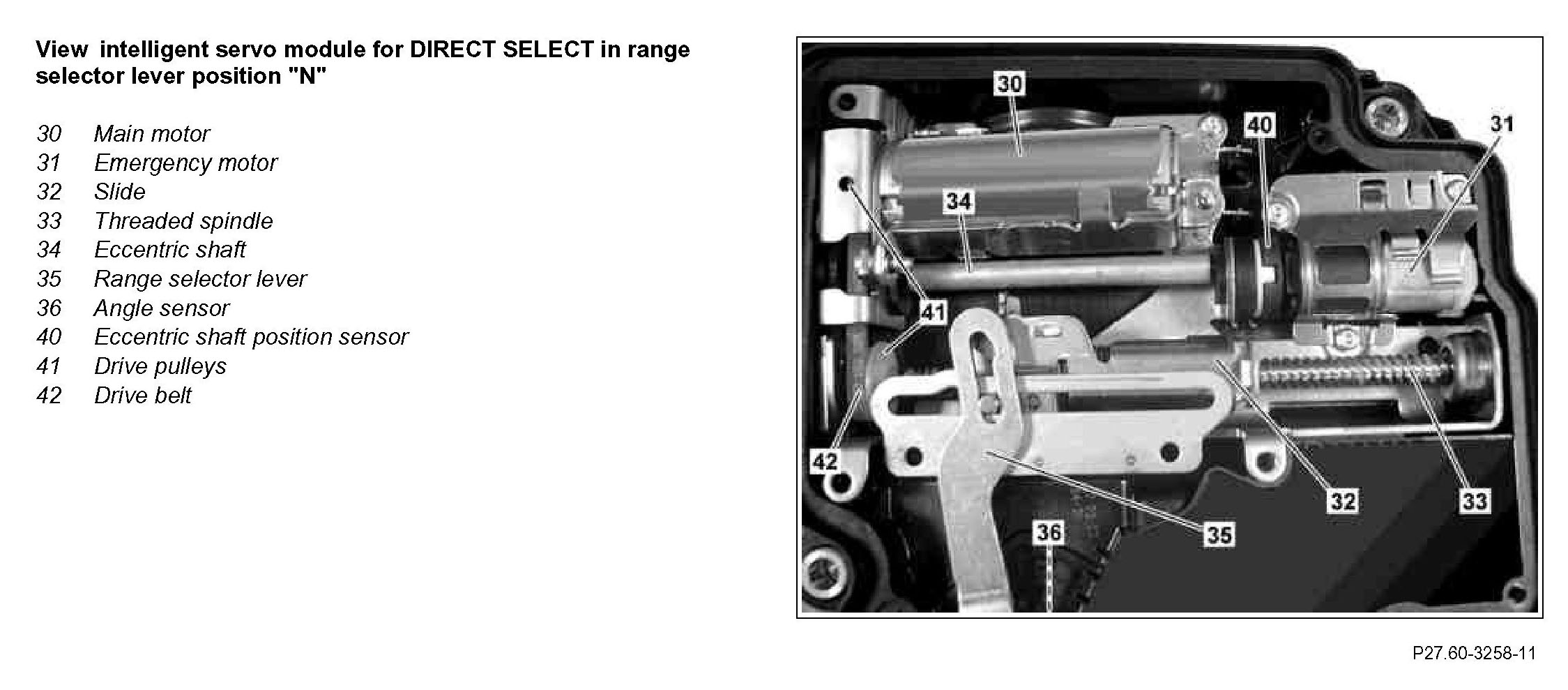

Component Identification:




Component Identification:
