GF27.10-P-0002-04LEH Automatic Transmission Hybrid Drive, Location of Hydraulic Components

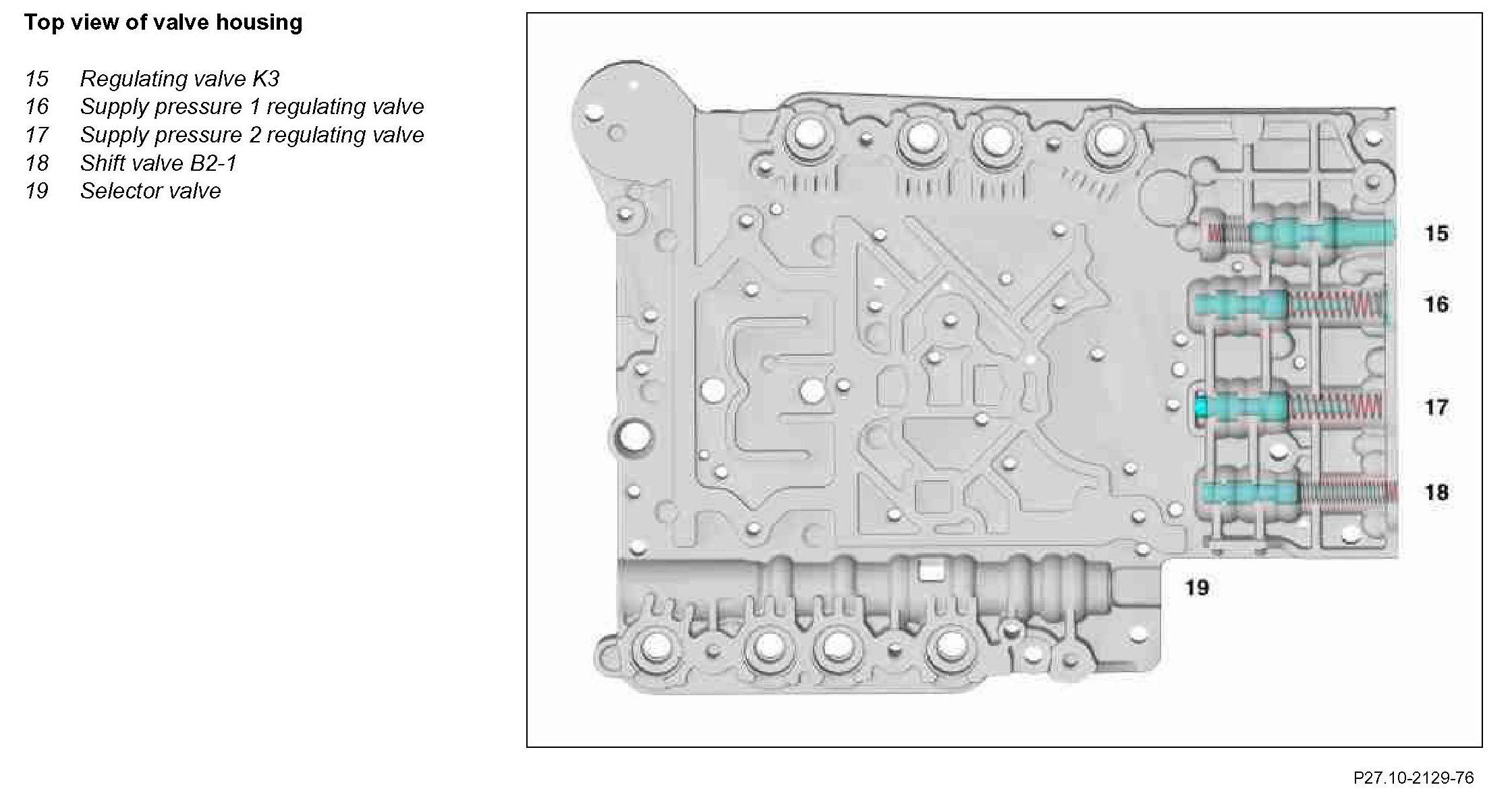

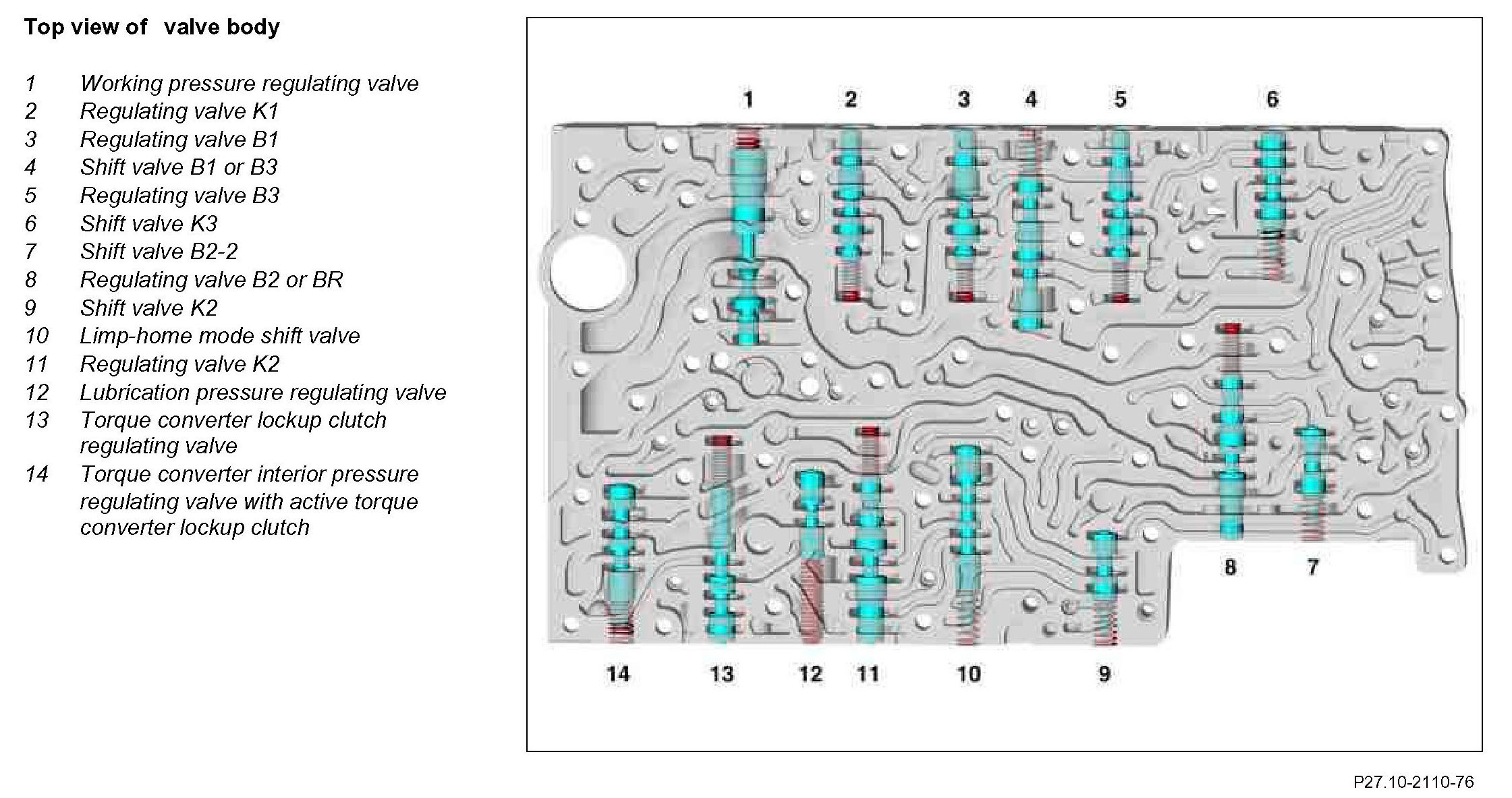

GF27.10-P-0002-04LEH Automatic transmission hybrid drive, location of hydraulic components
- TRANSMISSION 722.950

Component Identification:




Component Identification:
